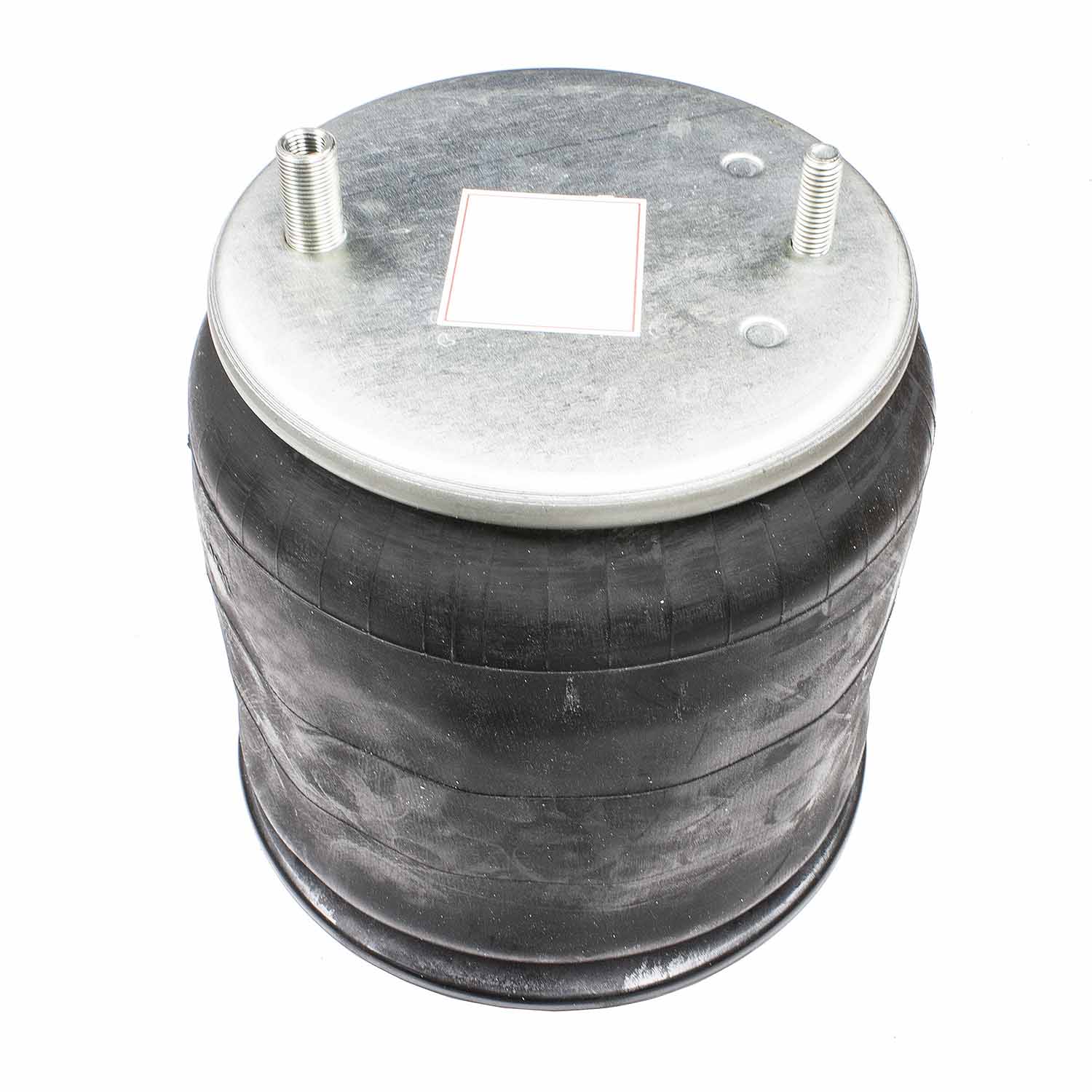

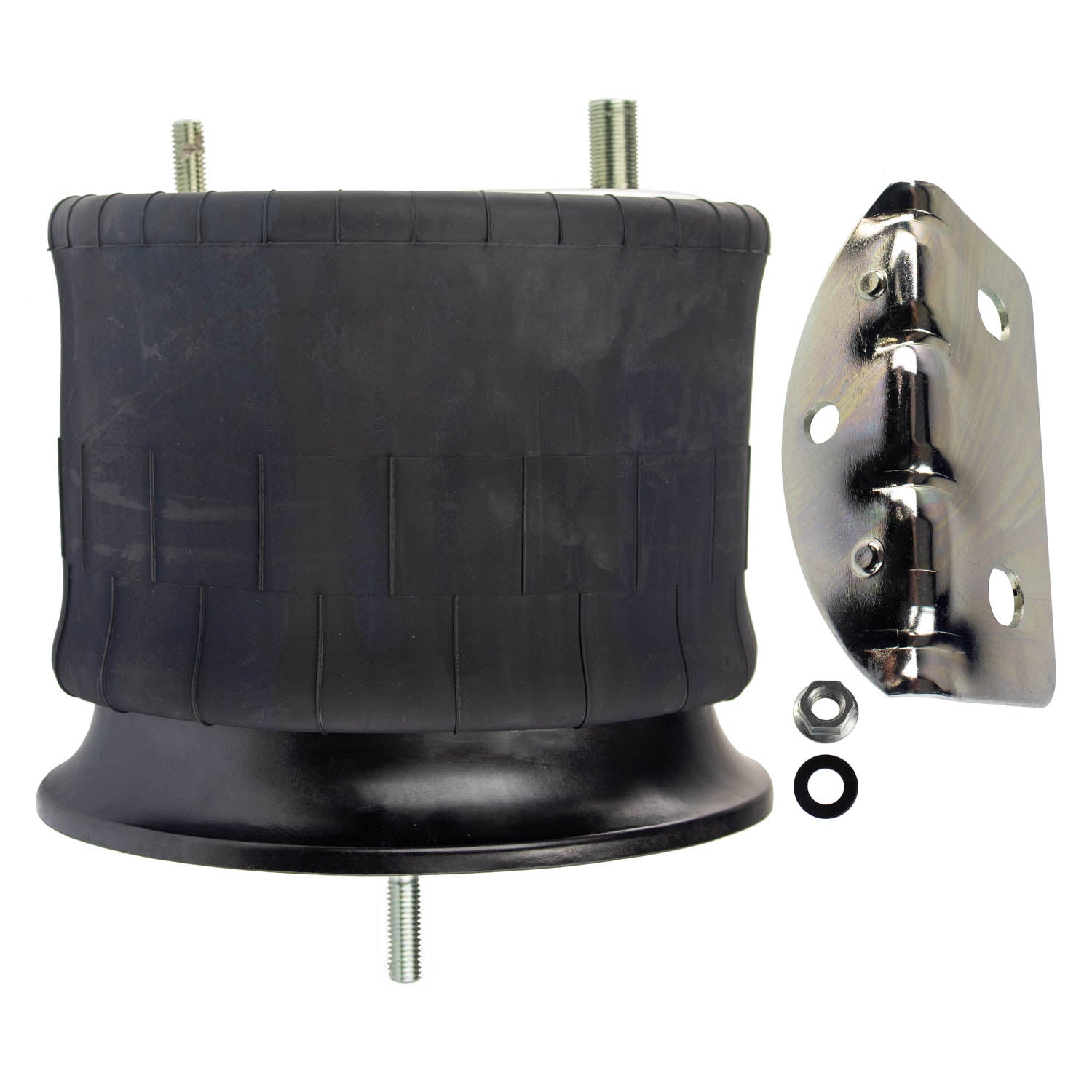

Freightliner 16-13810-000 Replacement Air Spring | World American WA01-9780C

Details:

World American Air Spring WA01-9780C is a direct fit for Freightliner 16-13810-000.

Specifications:

• Model/Style - Rolling Lobe
• Bottom Plate Alignment - Parallel
• Bottom Plate Center to Center Diameter - 3.23 (Inch)
• Bottom Plate Diameter - 10.63 (Inch)
• Bottom Plate Hole Quantity - 1
• Bottom Plate Type - P
• Design Height - 12.5 (Inch)
• Load Rating at 100 PSI - 7860 (Pound)
• Load Rating at 80 PSI - 6290 (Pound)
• Maximum Diameter - 12.6
• Maximum Height - 23 (Inch)
• Minimum Height - 8.3 (Inch)
• Natural Frequency - 70
• Spring Type - Rolling Lobe
• Top Plate Center to Center Diameter - 6.2 (Inch)
• Top Plate Diameter - 9 (Inch)
• Top Plate Hole Quantity - 2
• Warranty - 3 Years

Cross References:

• Automann  AB1DF23-9780
• Automann  AB1DF23-9781
• Batco 10-99780
• Batco 10-99782
• Continental-ContiTech 67473
• Continental-ContiTech 9 10S-16 A 382
• ContiTech AS9780
• Dayton Parts 352-9780
• Euclid E-FS9780
• Firestone W01-358-9780
• Firestone 8536
• Firestone 9780
• Freightliner 16-13810-000
• Goodyear 1R12-186
• Goodyear 1R12-303
• Goodyear 1R12-189
• HDValue HDV9780
• Meritor FS9780
• Meritor RFS9780
• Paccar Parts AS9780P
• Ridewell Corp 1003589780C
• Triangle Air Springs AS-8382
• Triangle Air Springs AS-9780
• Triangle Air Springs 8382
• World American WA01-9781
