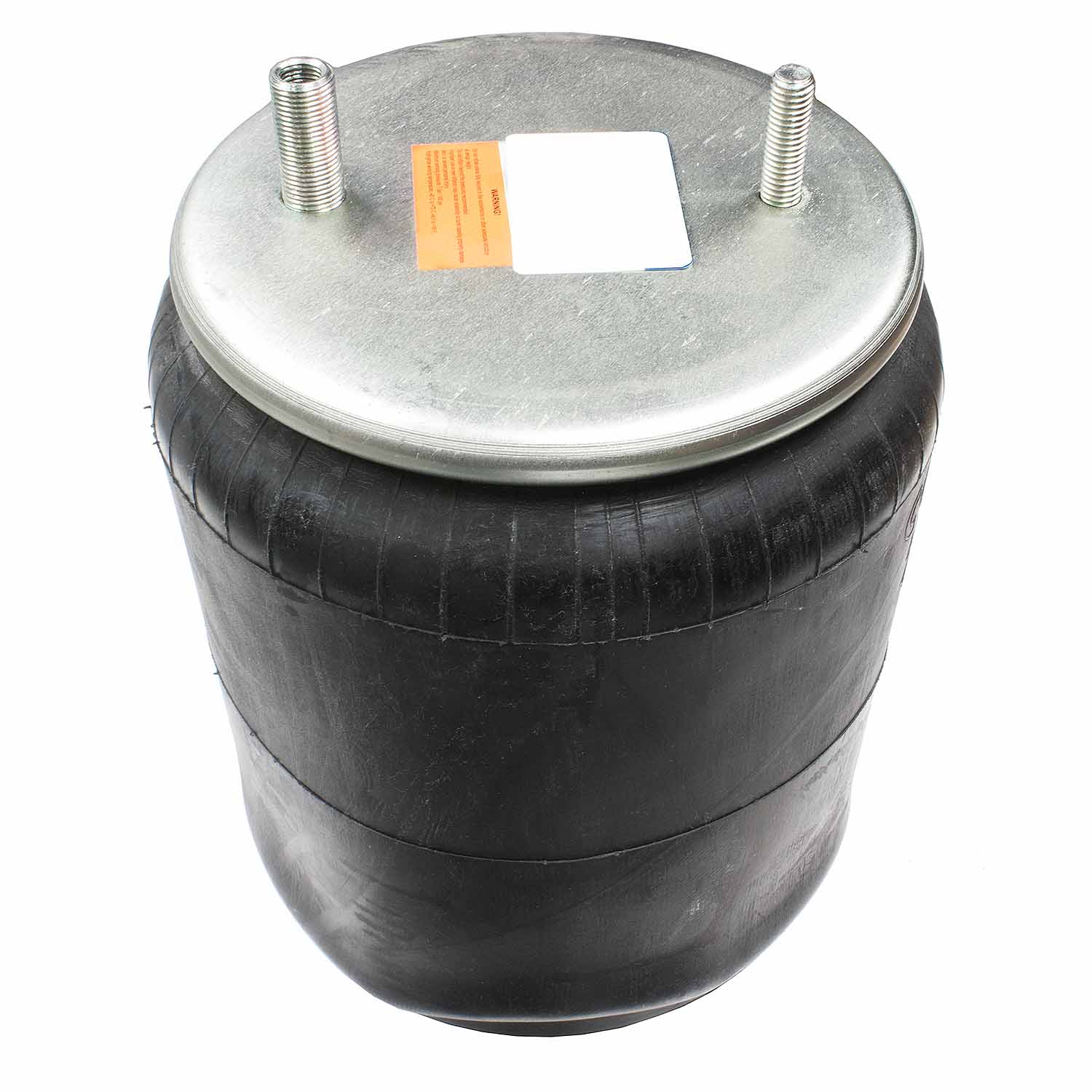

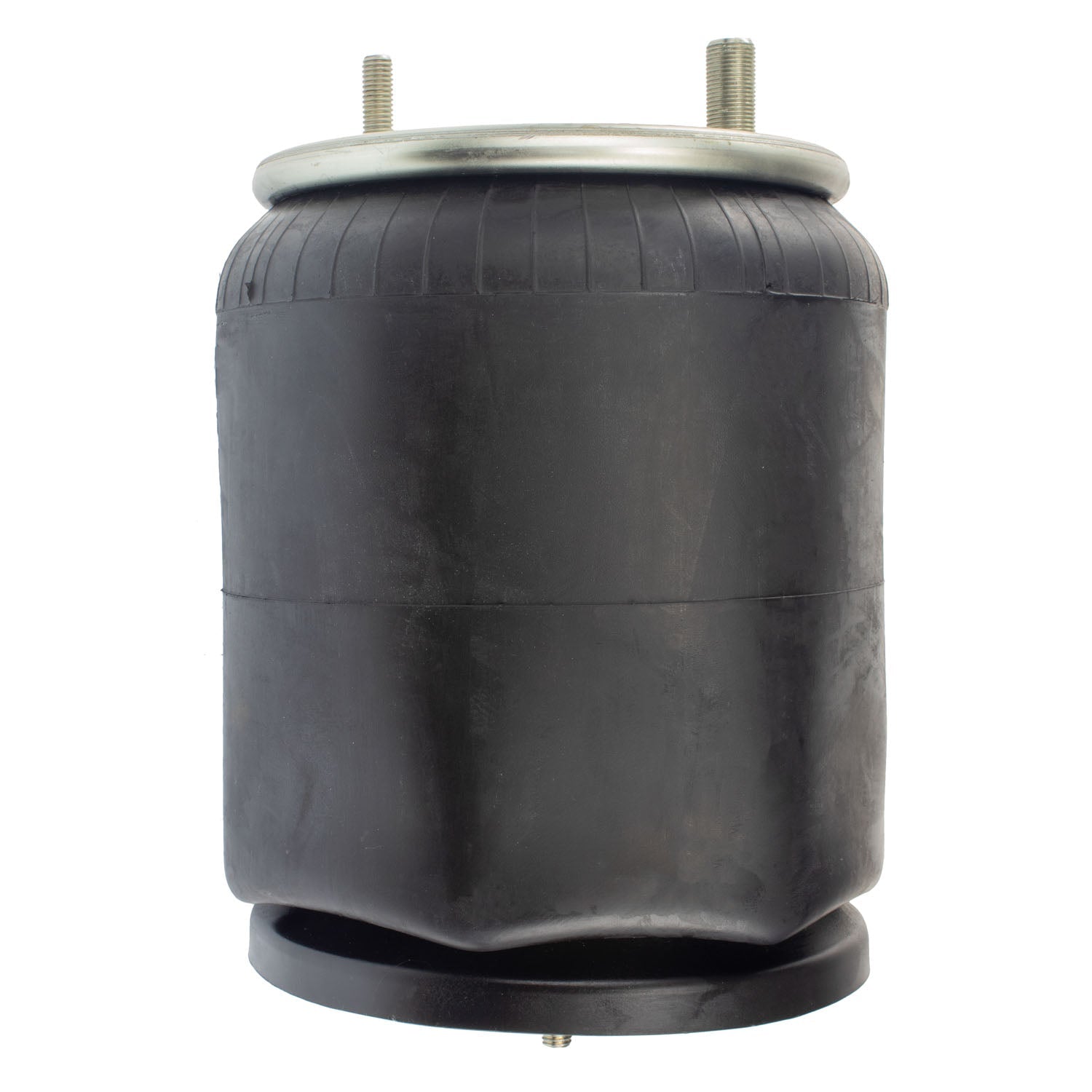

World American Air Spring WA01-9921C
Model/Style: Rolling Lobe
Bottom Plate Alignment: Parallel
Bottom Plate Center to Center Diameter: 2.25 (Inch)
Bottom Plate Diameter: 9.53 (Inch)
Bottom Plate Hole Quantity: 1
Bottom Plate Type: A
Design Height: 13.5 (Inch)
Load Rating at 100 PSI: 7100 (Pound)
Load Rating at 80 PSI: 5680 (Pound)
Maximum Diameter: 12.6
Maximum Height: 22 (Inch)
Minimum Height: 6.5 (Inch)
Natural Frequency: 63
Spring Type: Rolling Lobe
Top Plate Center to Center Diameter: 5.5 (Inch)
Top Plate Diameter: 9 (Inch)
Top Plate Hole Quantity: 2
Warranty: 3 Years
Cross References:
- Automann AB1DK23P-9921
- Batco 10-99921
- Continental-ContiTech 910175P443
- Continental-ContiTech 64402
- Continental-ContiTech 9 10-17.5 P 443
- ContiTech AS9921
- Dayton Parts 352-9921
- Euclid E-FS9921
- Firestone W01-358-9921
- Firestone 9921
- Goodyear 1R12-502
- Goodyear 1R12-503
- Haldex CS112502
- HDValue HDV9921
- Holland 90557117
- Meritor FS9921
- Meritor RFS9921
- Neway 90557117
- Paccar Parts AS99210
- Triangle Air Springs AS-8443
- Triangle Air Springs 8443
- Watson & Chalin AS-0090
- World American WA01-9921
