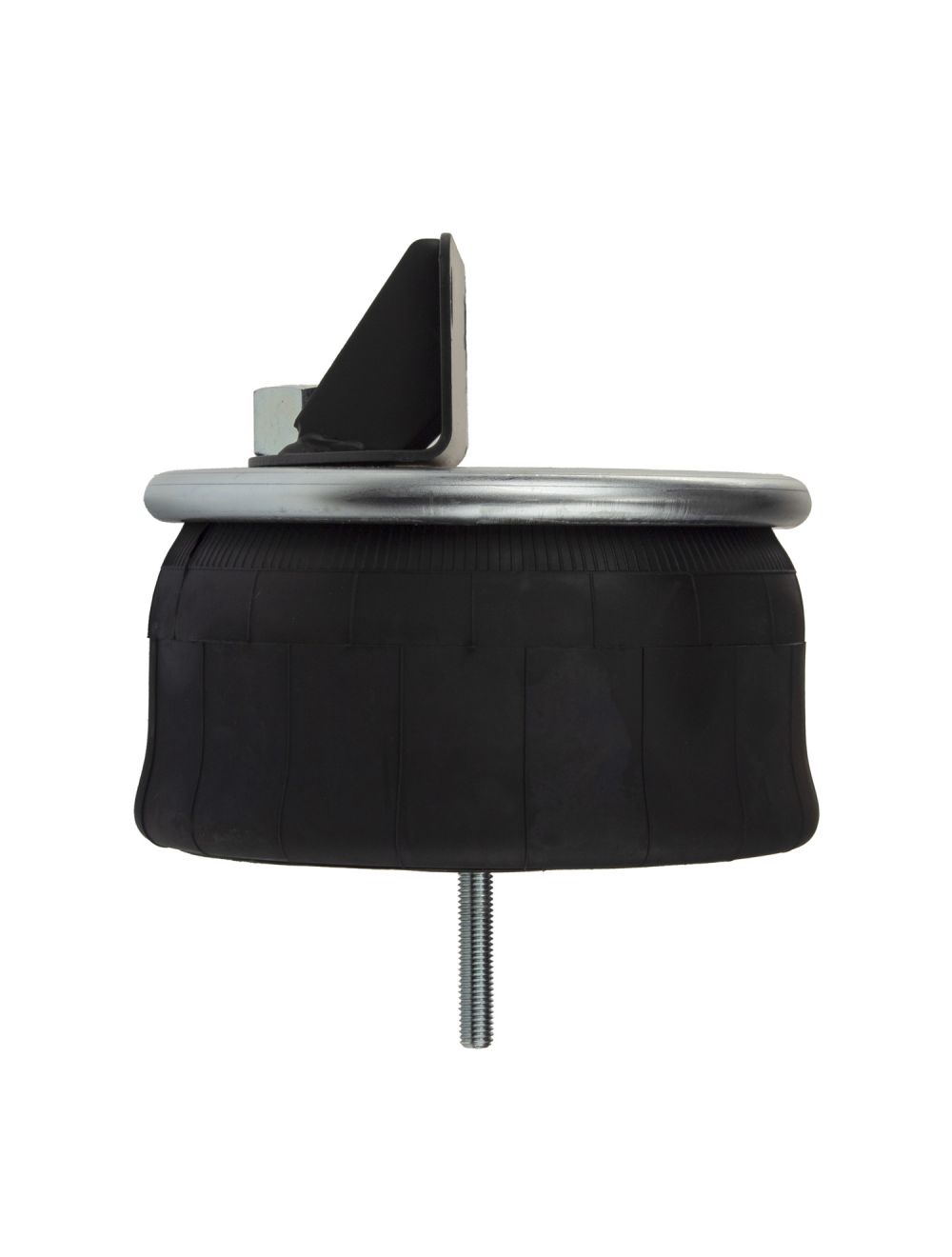

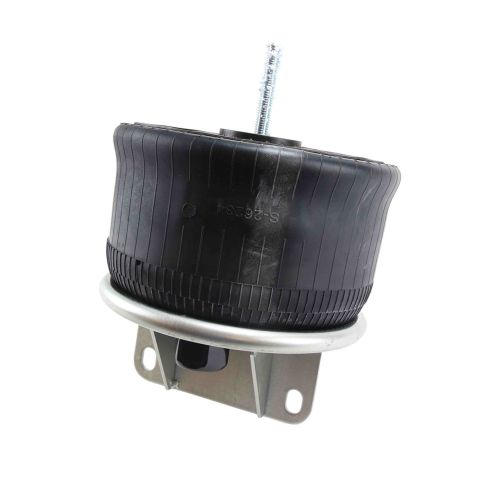

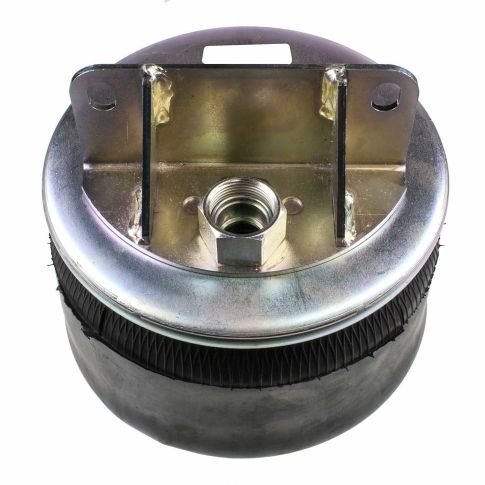

World American WA01-9541C Air Spring – Kenworth Airglide 200/460/690

The World American WA01-9541C is a premium aftermarket rolling lobe air spring designed for Kenworth and Peterbilt tractors equipped with PACCAR Airglide suspension systems. This air spring supports load ratings of 5,020 lb at 80 psi and 6,280 lb at 100 psi, delivering consistent ride height and driver comfort for over-the-road applications. World American is the heavy-duty division of Midwest Truck & Auto Parts, manufacturing quality replacement components that meet or exceed OEM specifications.

Signs You Need a New Tractor Air Spring

• Cab sitting lower on one side or uneven ride height
• Visible cracks, bulging, or dry rot on the bellows
• Air leaks causing compressor to cycle frequently
• Harsh ride quality or excessive cab bounce
• Driver fatigue from poor suspension performance

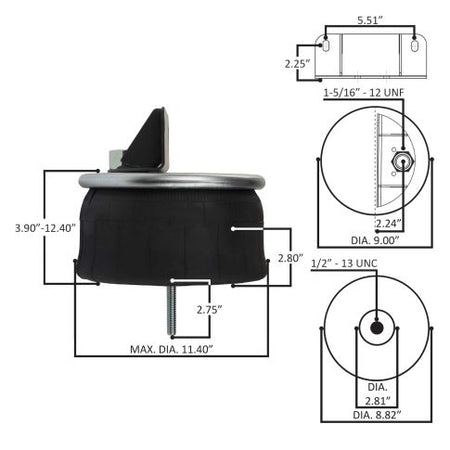

Specifications

Cross References

This part replaces or is equivalent to the following part numbers:

• Firestone: 9541, W01-358-9541, W01-358-9547, 1T15LA-0
• Kenworth/PACCAR: C81-1005, C81-1004, AS95410
• ContiTech: 66111, 68357, 9 9-10 P 861, AS9541
• Dayton: 352-9541
• Meritor: FS9541
• Triangle: 8861, AS-8861
• Automann: AB1DK20H-9541, AB1DK20G-9547
• Torque: TR9541
• FleetPride: AS9541

Applications

This air spring fits PACCAR Airglide suspensions found in:

• Kenworth trucks with Airglide 200 suspension (05/05/03 build date or later)
• Kenworth trucks with Airglide 460 suspension
• Kenworth trucks with Airglide 690 suspension
• Peterbilt trucks with PACCAR Airglide suspension

Verify your suspension model and build date before ordering to confirm fitment. Airglide 200 applications require 05/05/03 build date or later.
