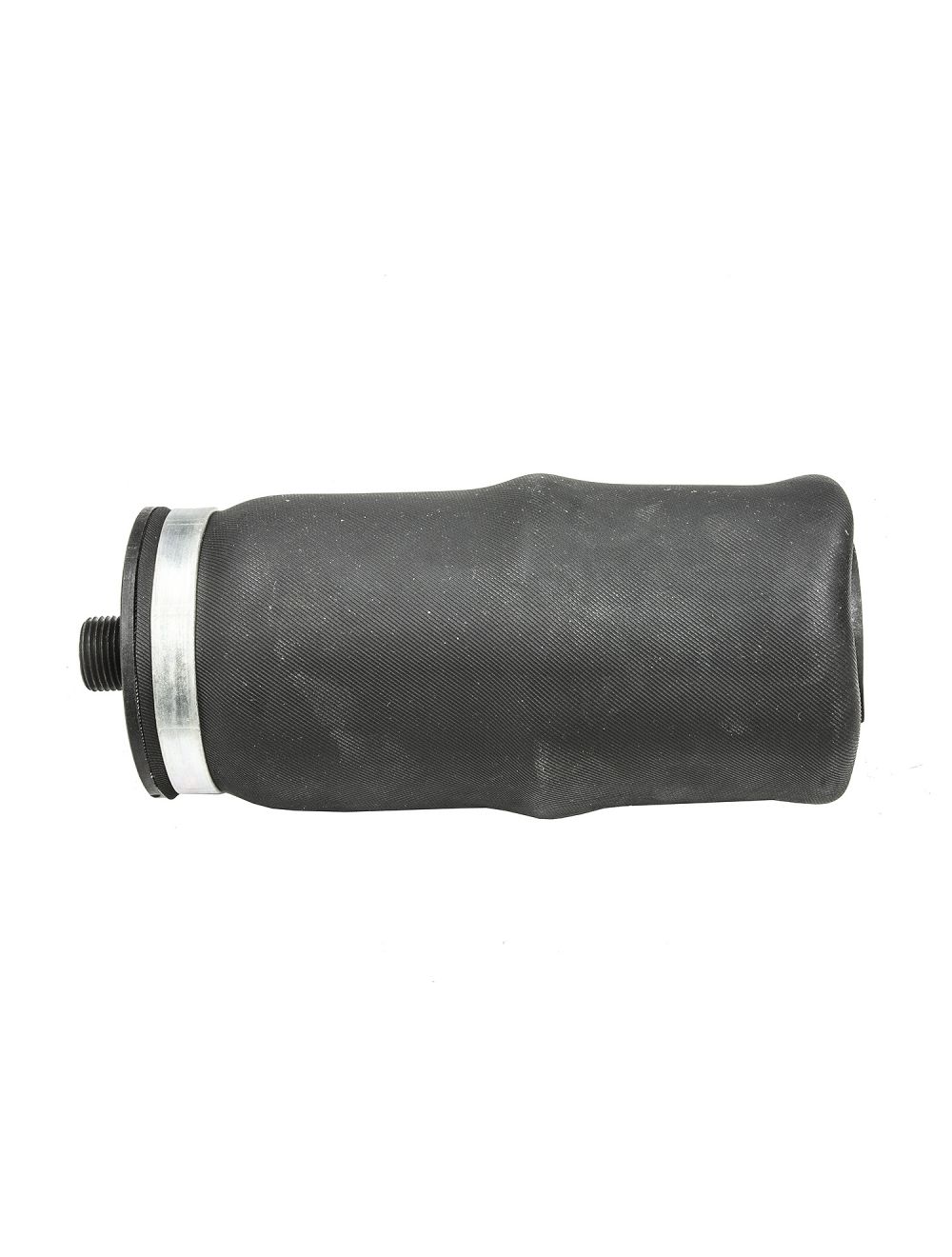

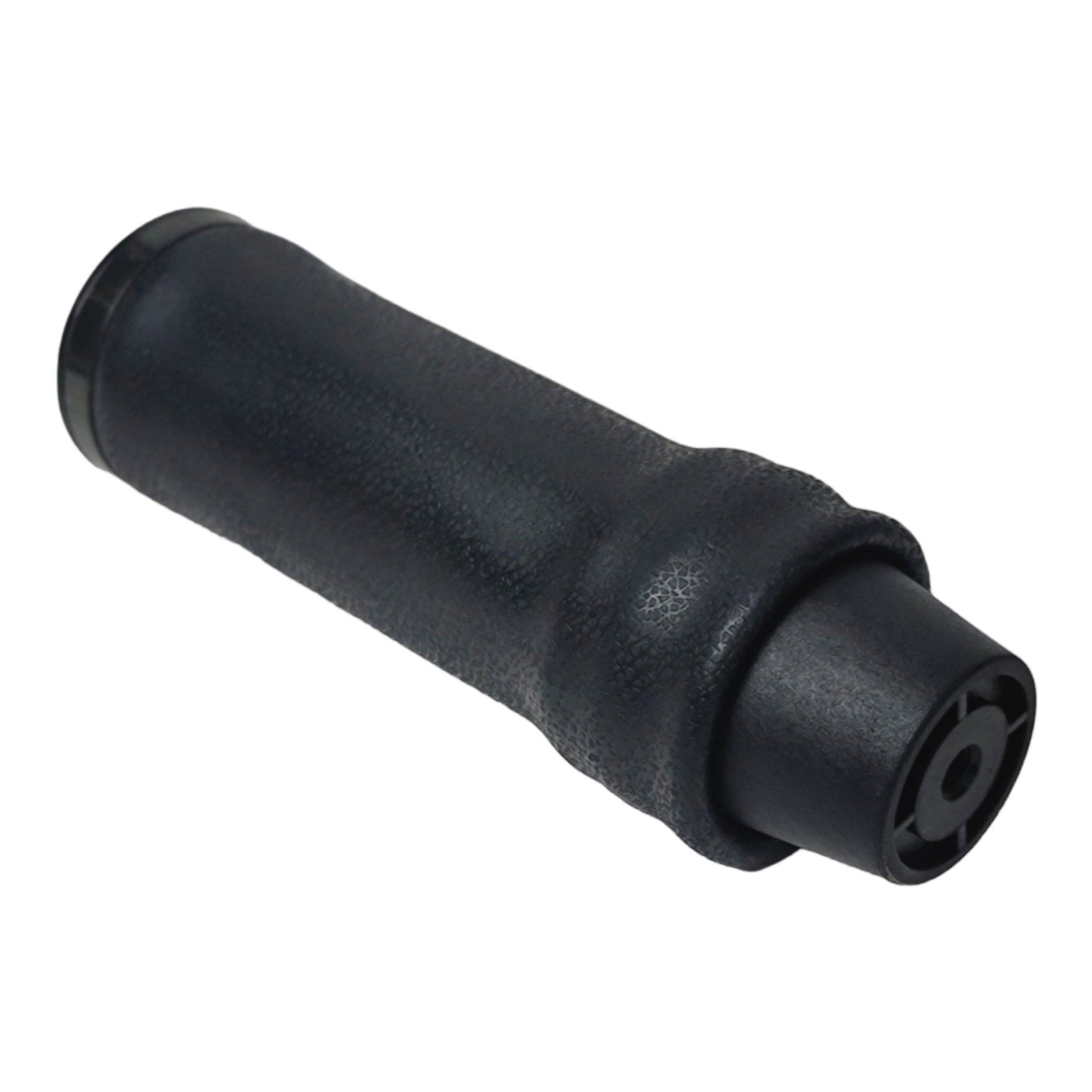

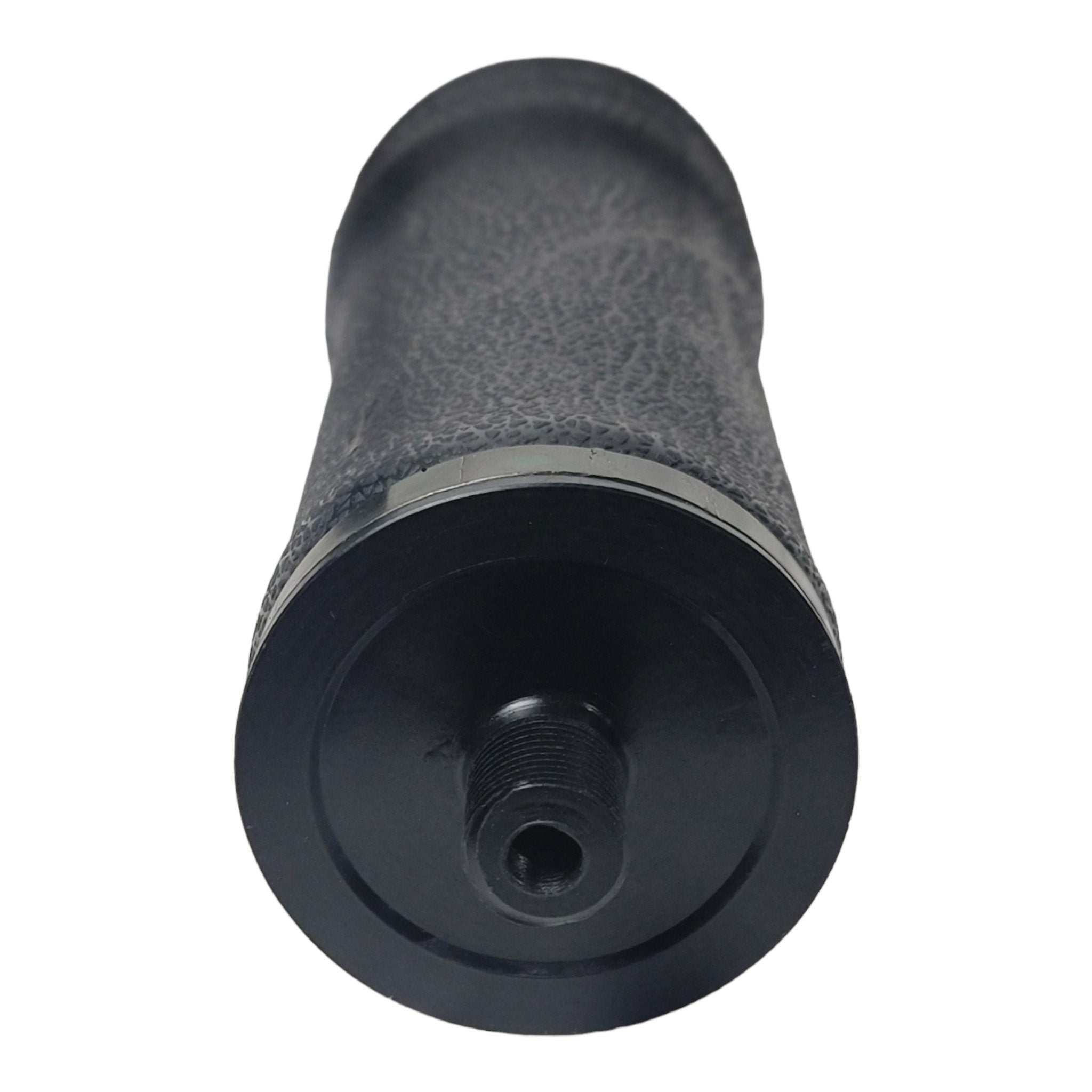

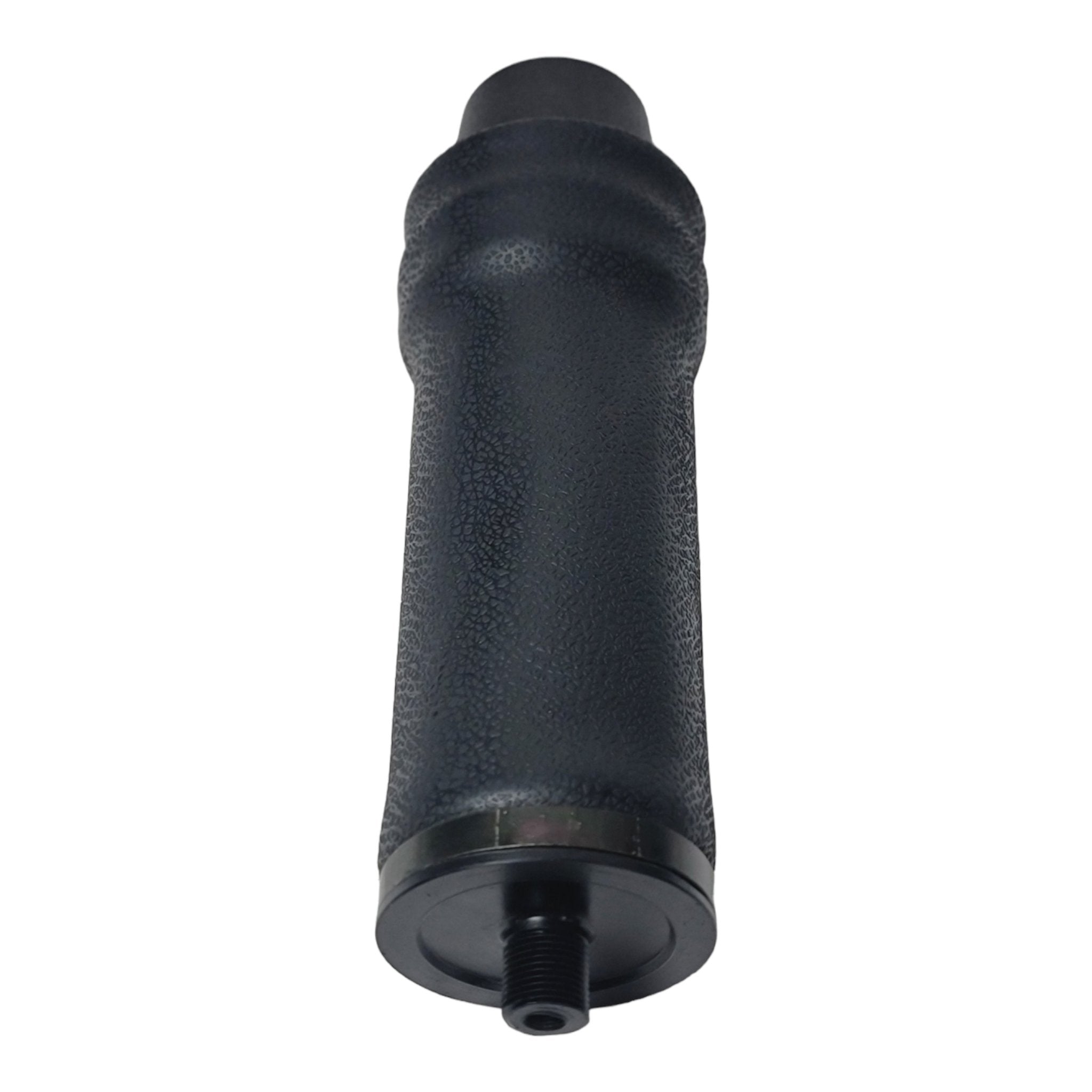

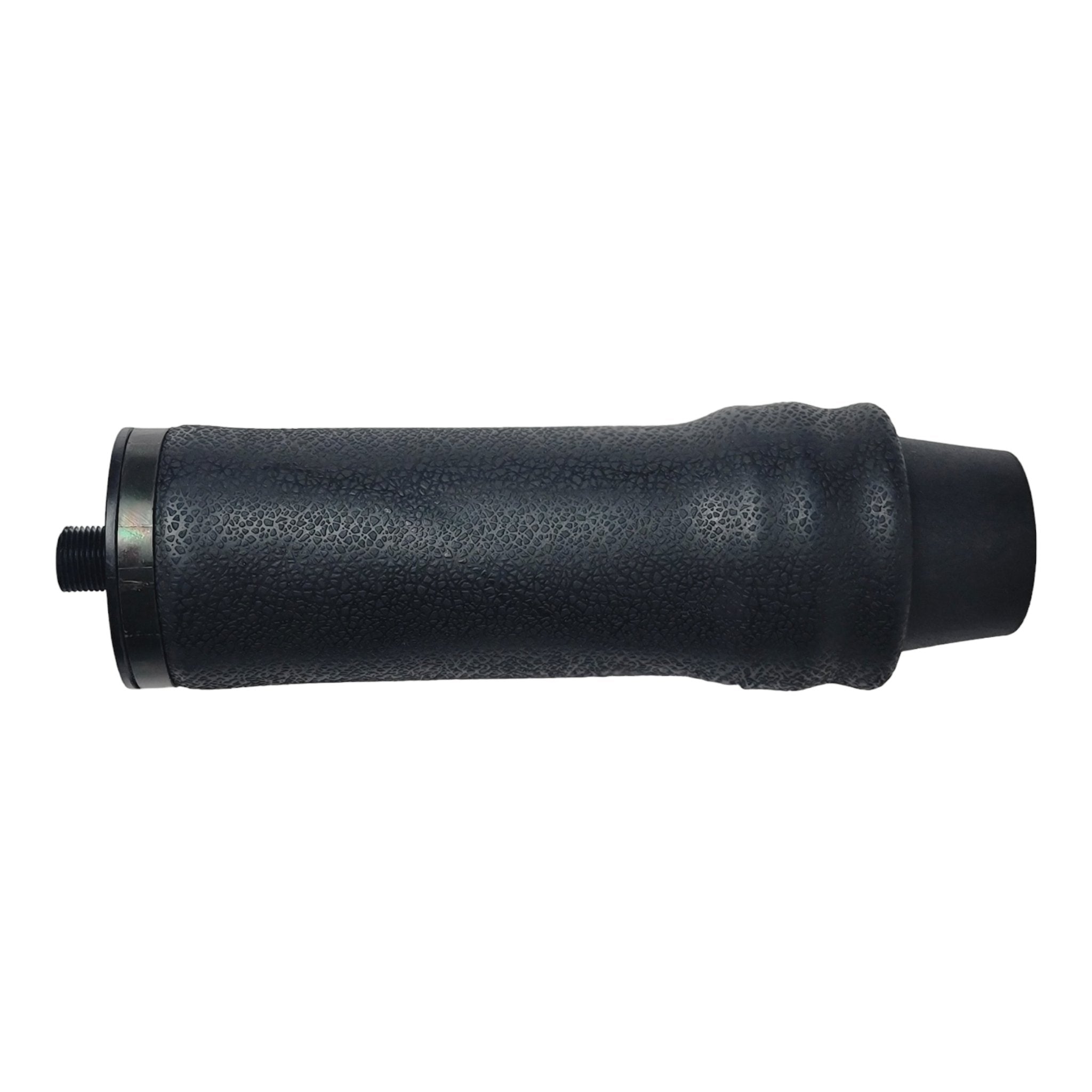

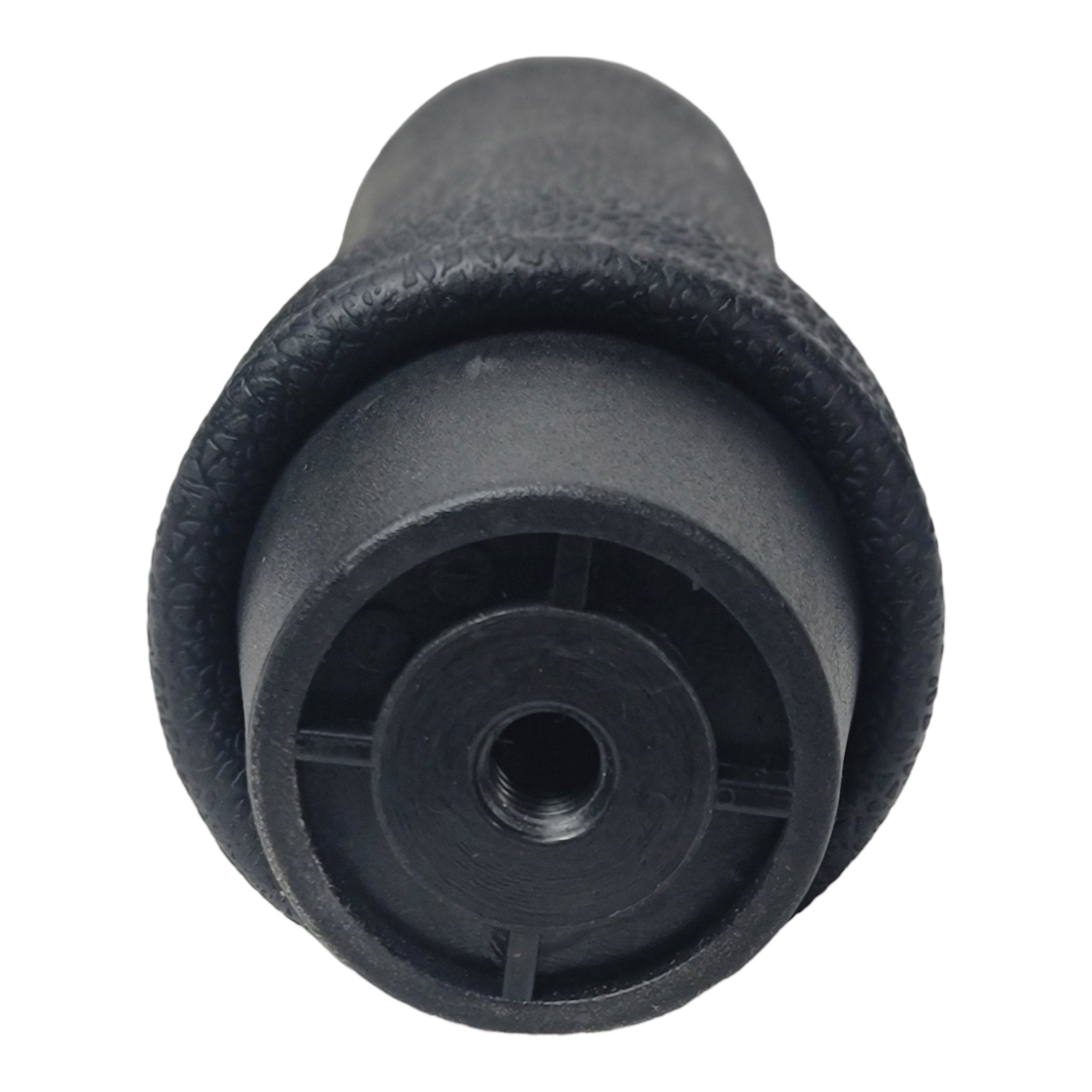

World American WA02-7012C Cab Air Spring – Sleeve Style Rolling Lobe

The World American WA02-7012C is a premium aftermarket cab air spring featuring a sleeve style rolling lobe design. This air spring supports the truck cab, isolating it from chassis vibrations and road impacts to provide a smoother, more comfortable ride for the driver. With an extended height of 14.42 inches and compressed height of 3.89 inches, this air spring is a direct replacement for Firestone 7012 and Link 1102-0040 applications.

Signs You Need a New Cab Air Spring

• Bouncy or rough cab ride, especially over bumps and uneven pavement
• Visible cracks, dry rot, or deterioration in the air spring rubber
• Cab sits lower on one side or sags after overnight parking
• Hissing sound indicating air leak from cab suspension area
• Air compressor runs continuously or cycles more frequently than normal
• Increased driver fatigue from excessive cab movement during operation
• Cab fails to maintain proper ride height under load
• Visible bulging or ballooning of the air spring bladder

Specifications

Cross References

This part replaces or is equivalent to the following part numbers:

• Firestone: 7012, W02-358-7012
• Link Manufacturing: 1102-0040, 1101-0021, 1101-0040, 1101-A023
• Goodyear: 1S4-008, 1S4-056, 1S4.5-107, 1S5-005
• Mack: 227QS39301
• Automann: ABSZ70-7012, AS7012
• Dayton: 353-7012, 453-7012, 453-7012L
• Euclid: FS7012
• Ride-Rite: 947018-S

Applications

This cab air spring fits various heavy-duty truck cab suspension systems including:

• Mack: Select models with air ride cab suspension
• Link Manufacturing: Cabmate suspension systems
• Wheelchair mobility vehicles equipped with Firestone 7012 series air springs
• Various OEM and aftermarket cab air ride systems using this air spring configuration

Maintenance Tips

Inspect cab air springs regularly for cracks, dry rot, or signs of rubbing against adjacent components. Maintain a minimum of 1/2" clearance around the air spring to prevent contact damage. Check for air leaks using soapy water sprayed on the air spring and fittings—bubbles indicate a leak. Keep air springs clean but avoid applying substances that attract dirt. Replace cab air springs in pairs when possible to maintain balanced ride quality. Worn cab air springs increase driver fatigue and can affect vehicle handling.

Always verify measurements and mounting configuration against your existing air spring before ordering. Cab air springs vary by application and are not interchangeable based on truck make/model alone.
