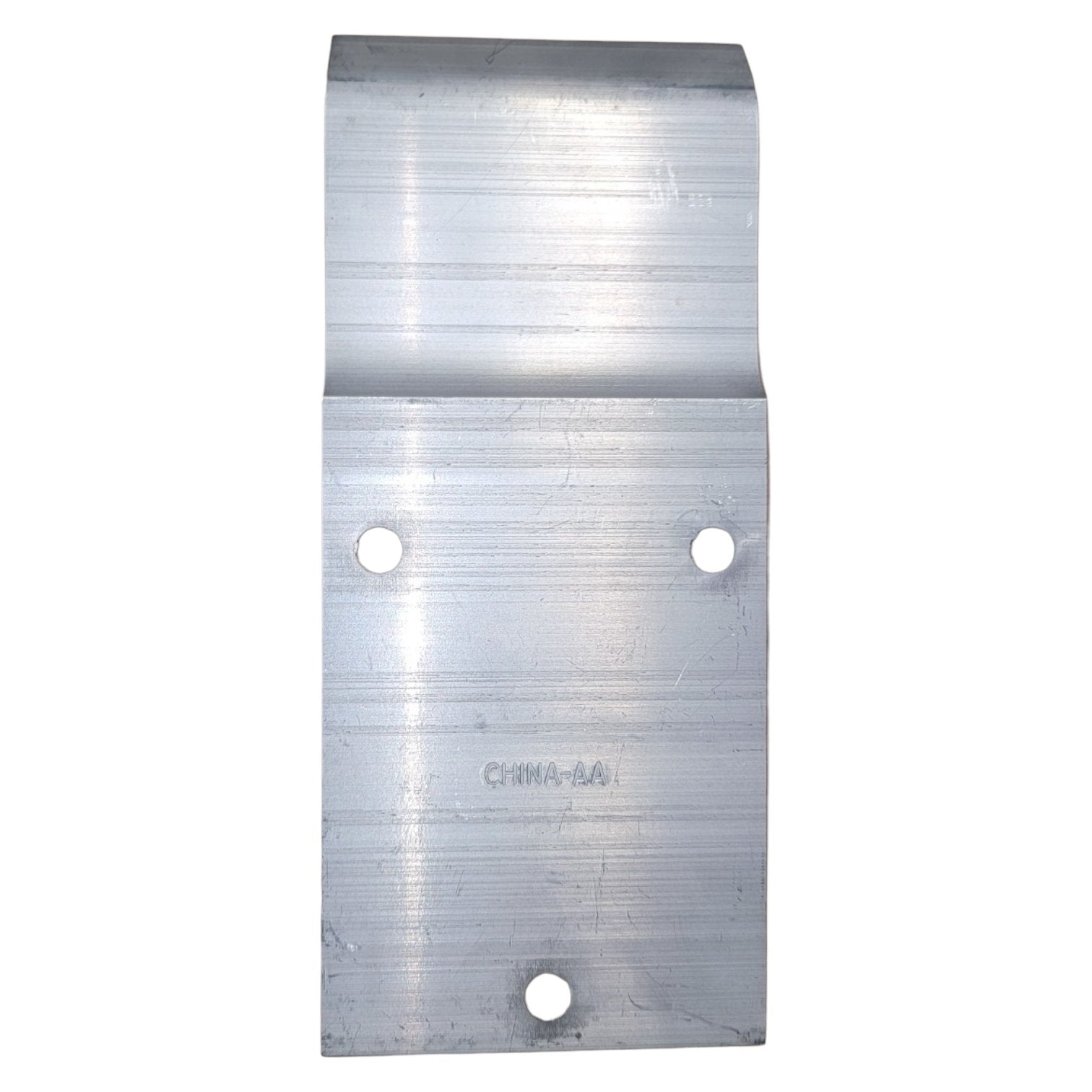

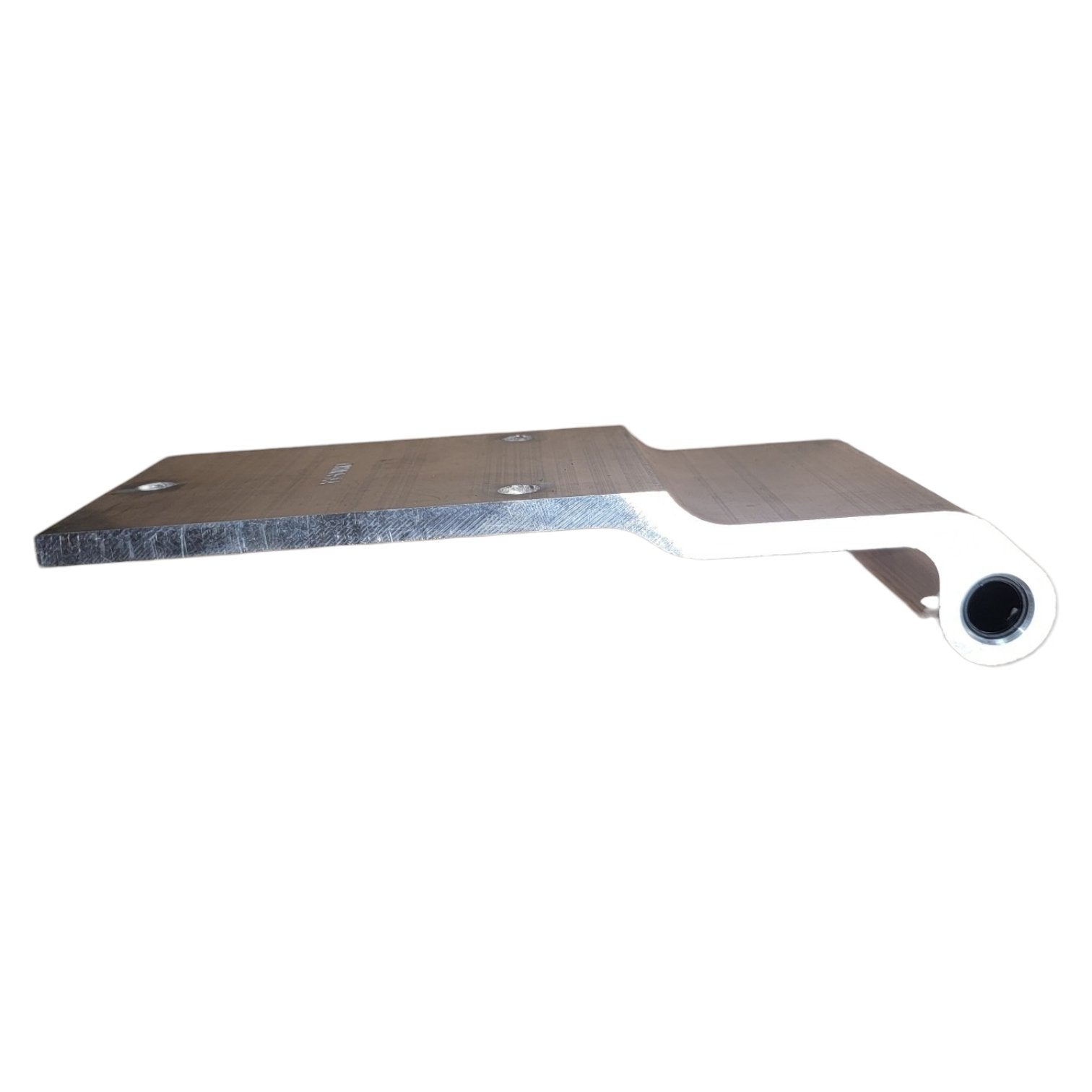

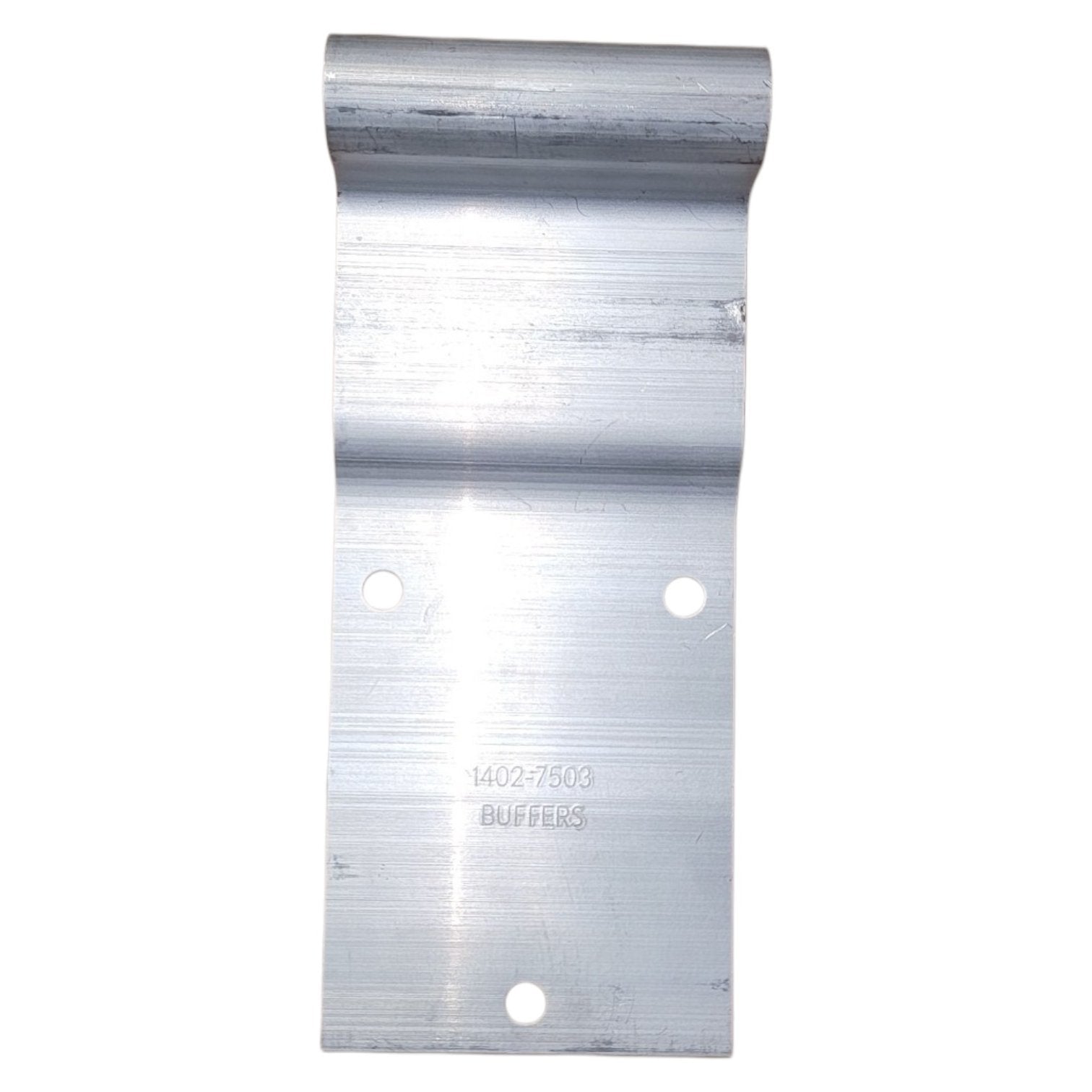

Hyundai 20003977 Aluminum 3 Hole Trailer Door Hinge (L) 9-5/8" x (W) 4" | .5" Pin Dia.

Details:

3 hole aluminum trailer door hinge for Hyundai Trailers, 1402-7503

Specifications:

• Overall Length - 9 5/8"
• Length from Pin  Center to End - 9"
• Width - 4"
• Mounting Hole Diameter - 3/8"
• Mounting Hole Quantity - 3
• Mounting Holes top to bottom C to C - 3"
• Mounting Holes Inner to Outer C to C - 4.25"
• Nylon bushing Included - Yes

Cross Reference:

• Hyundai 20003977
• Fleet Engineers 023-01657
