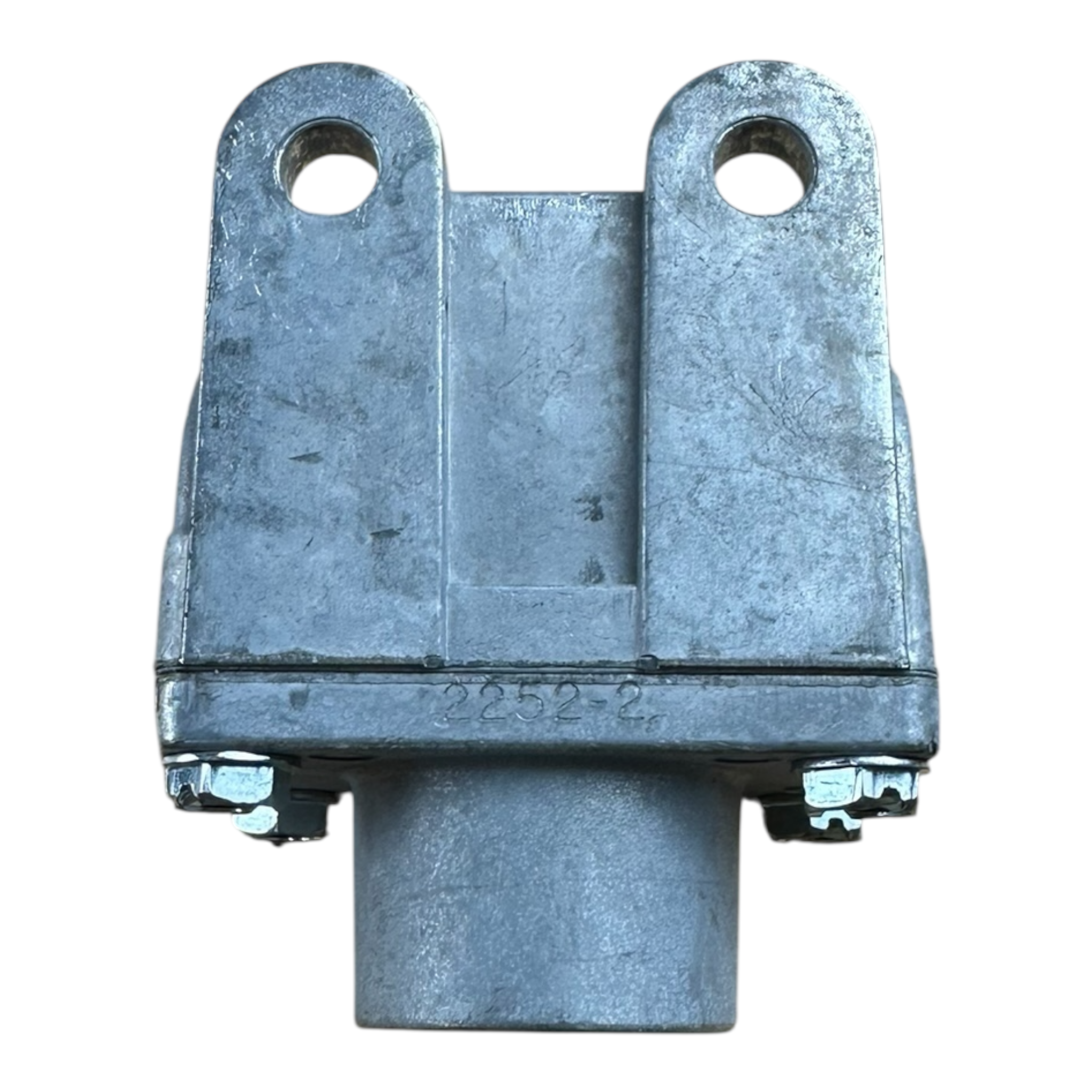

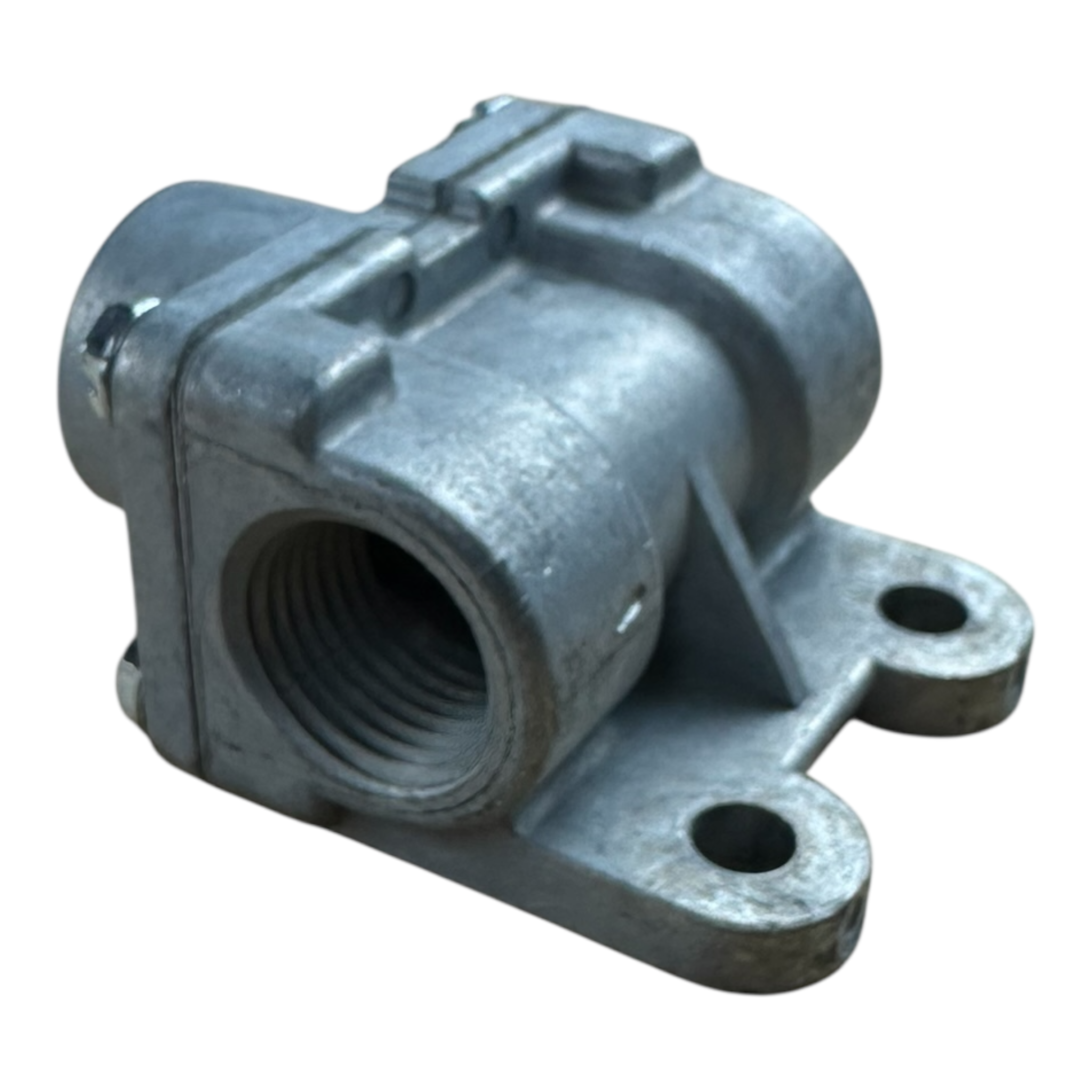

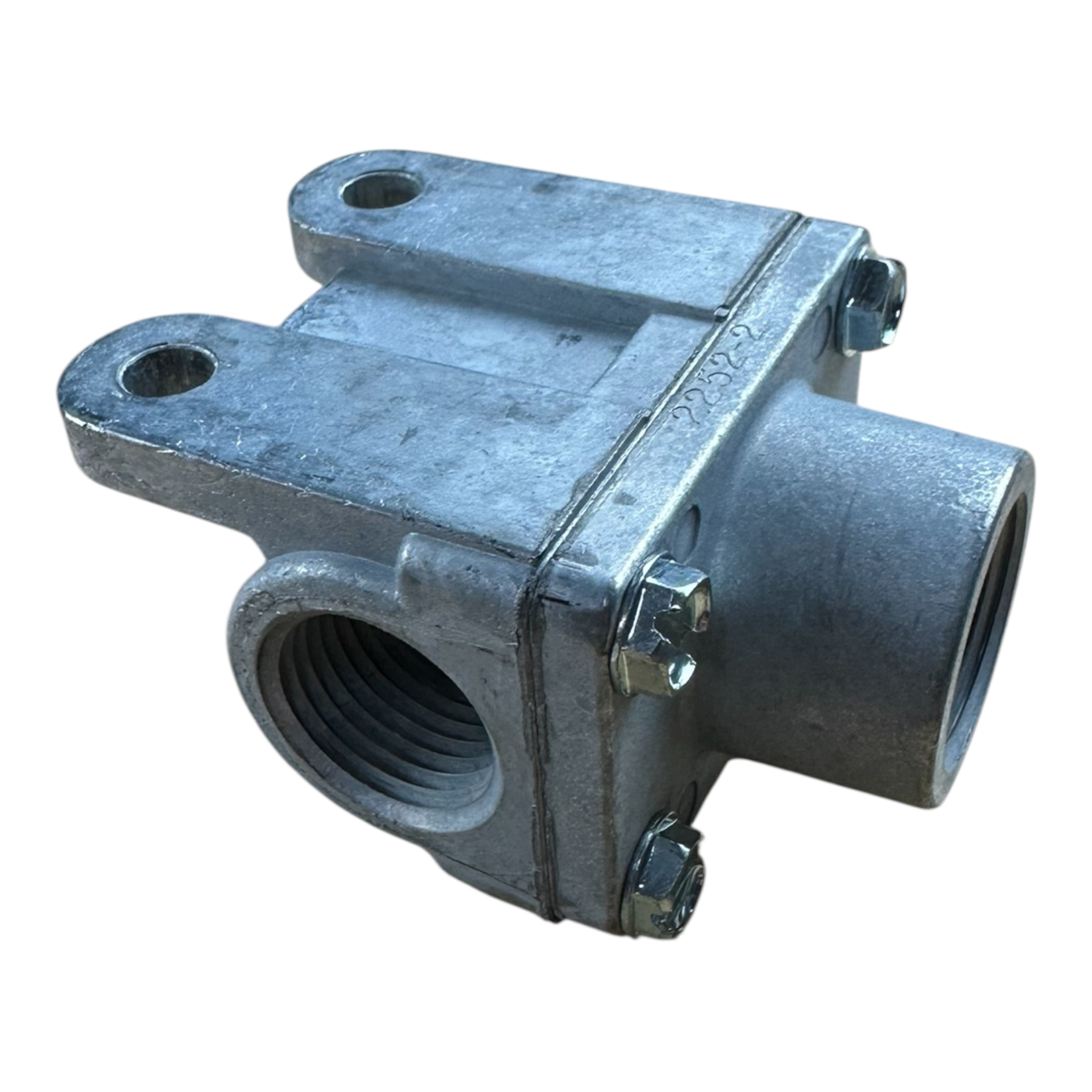

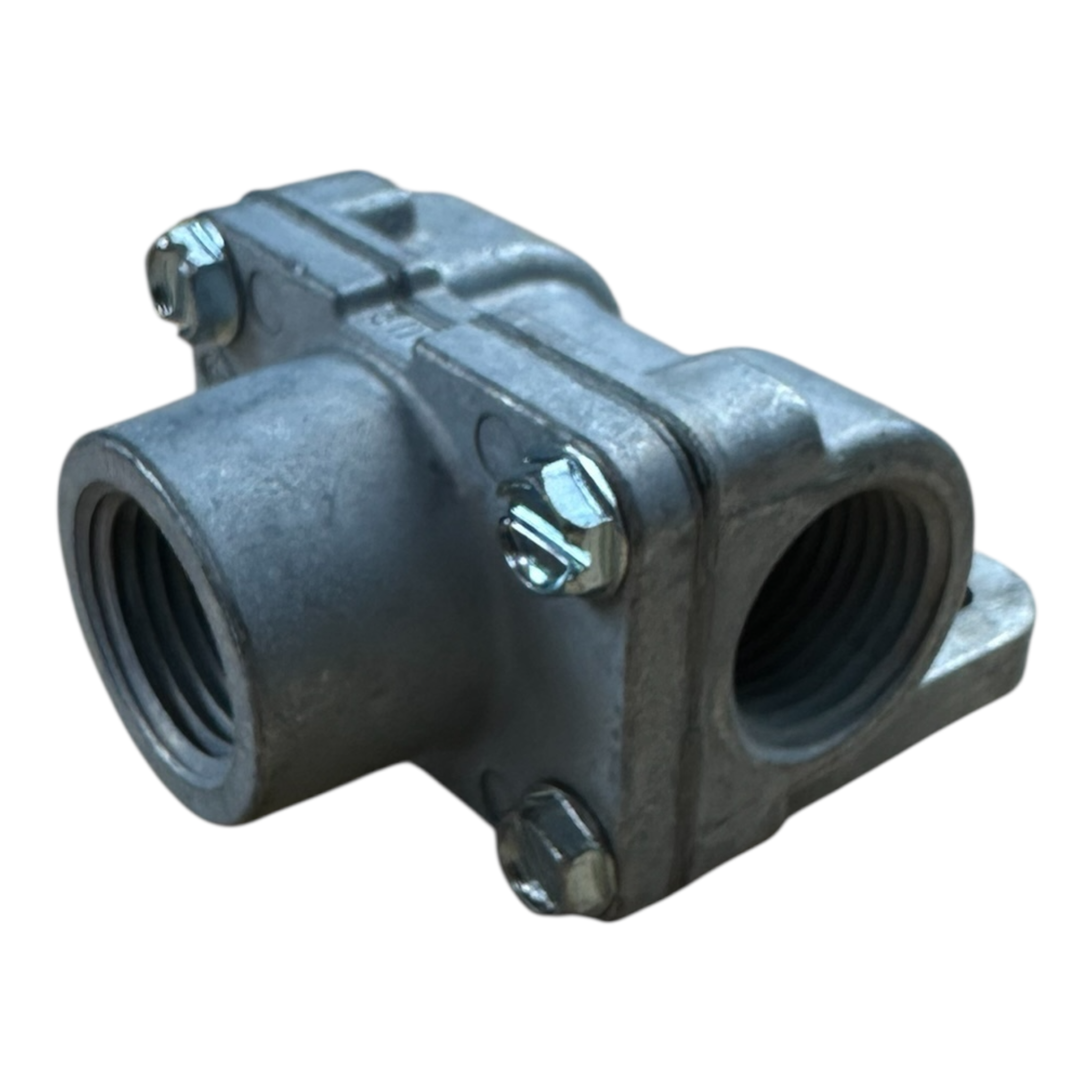

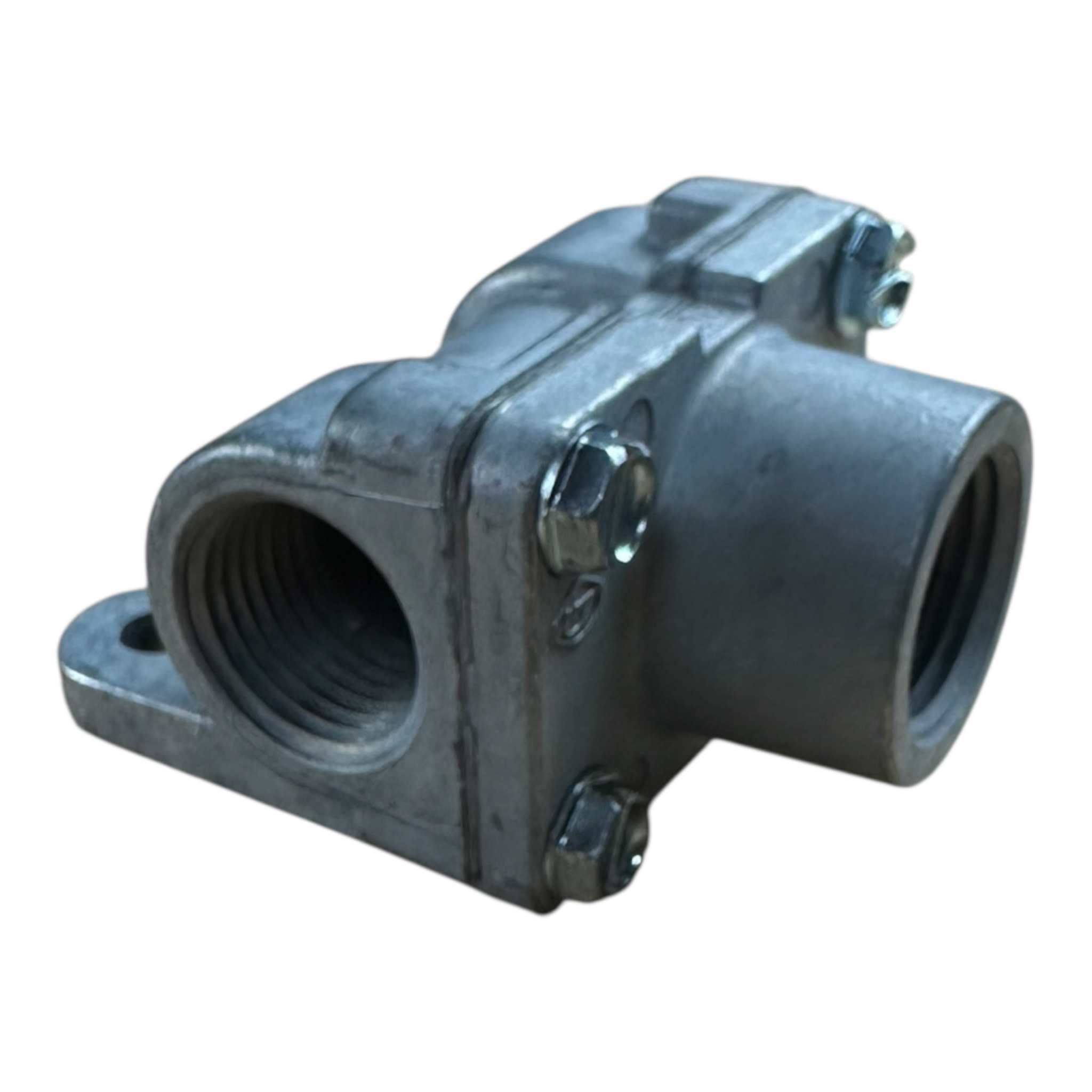

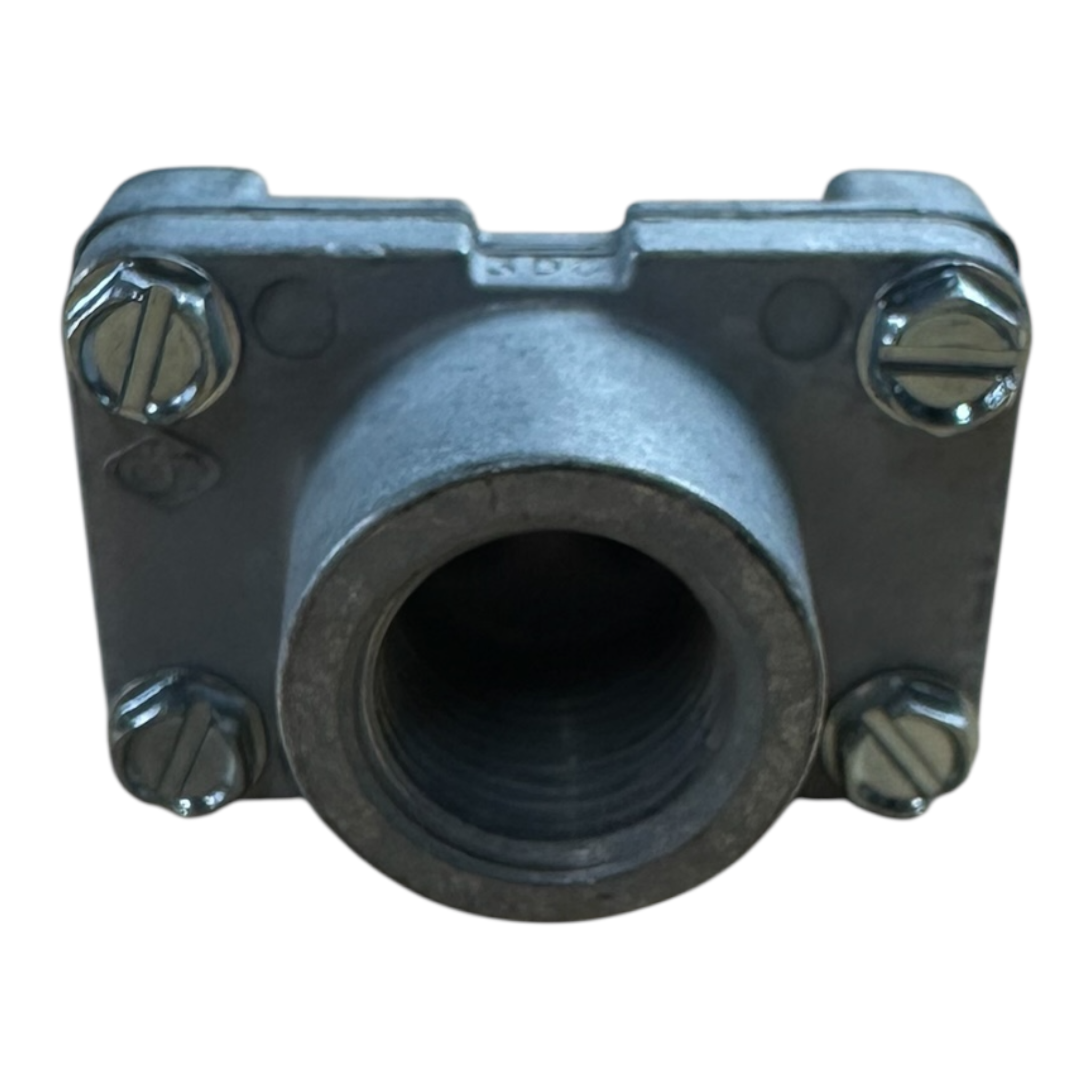

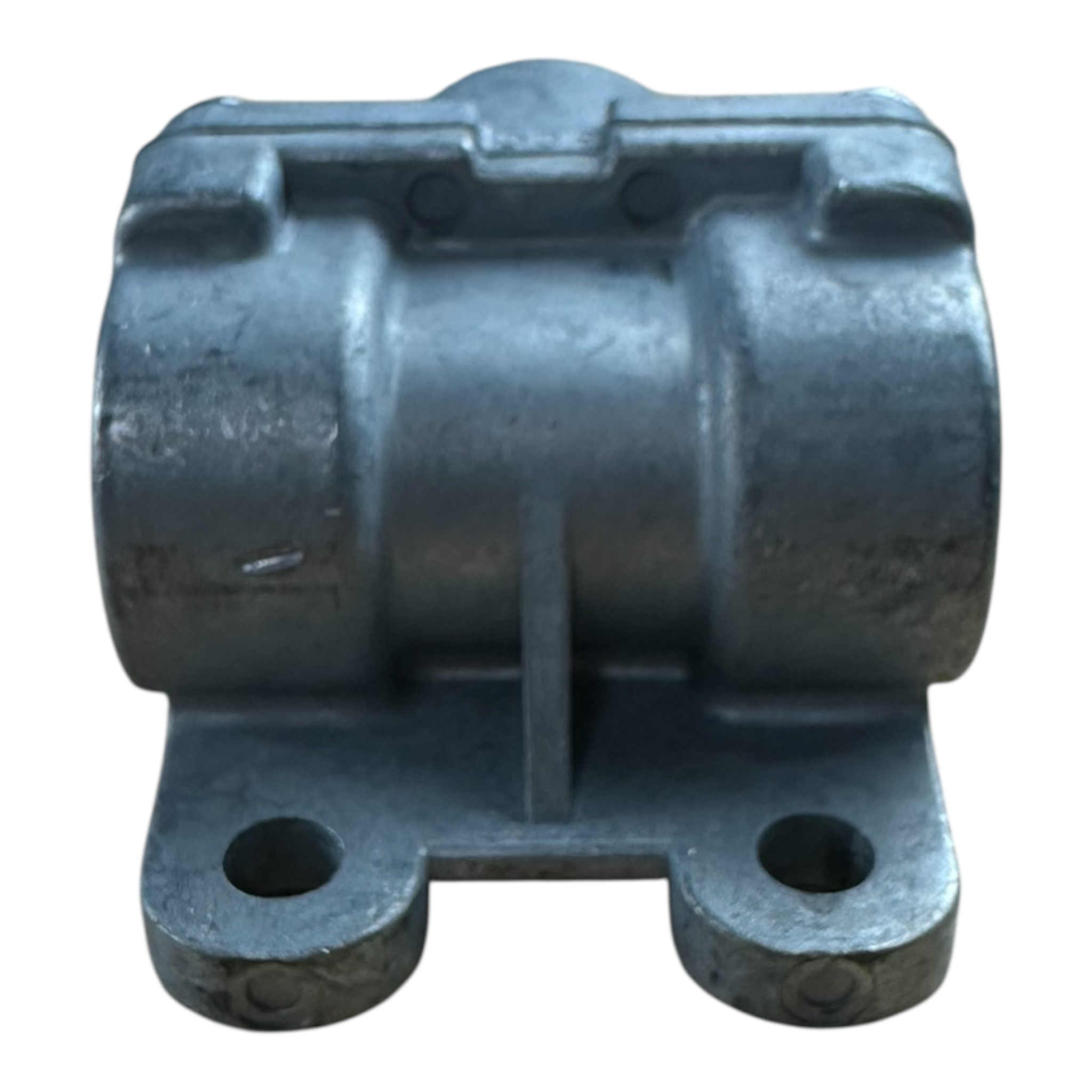

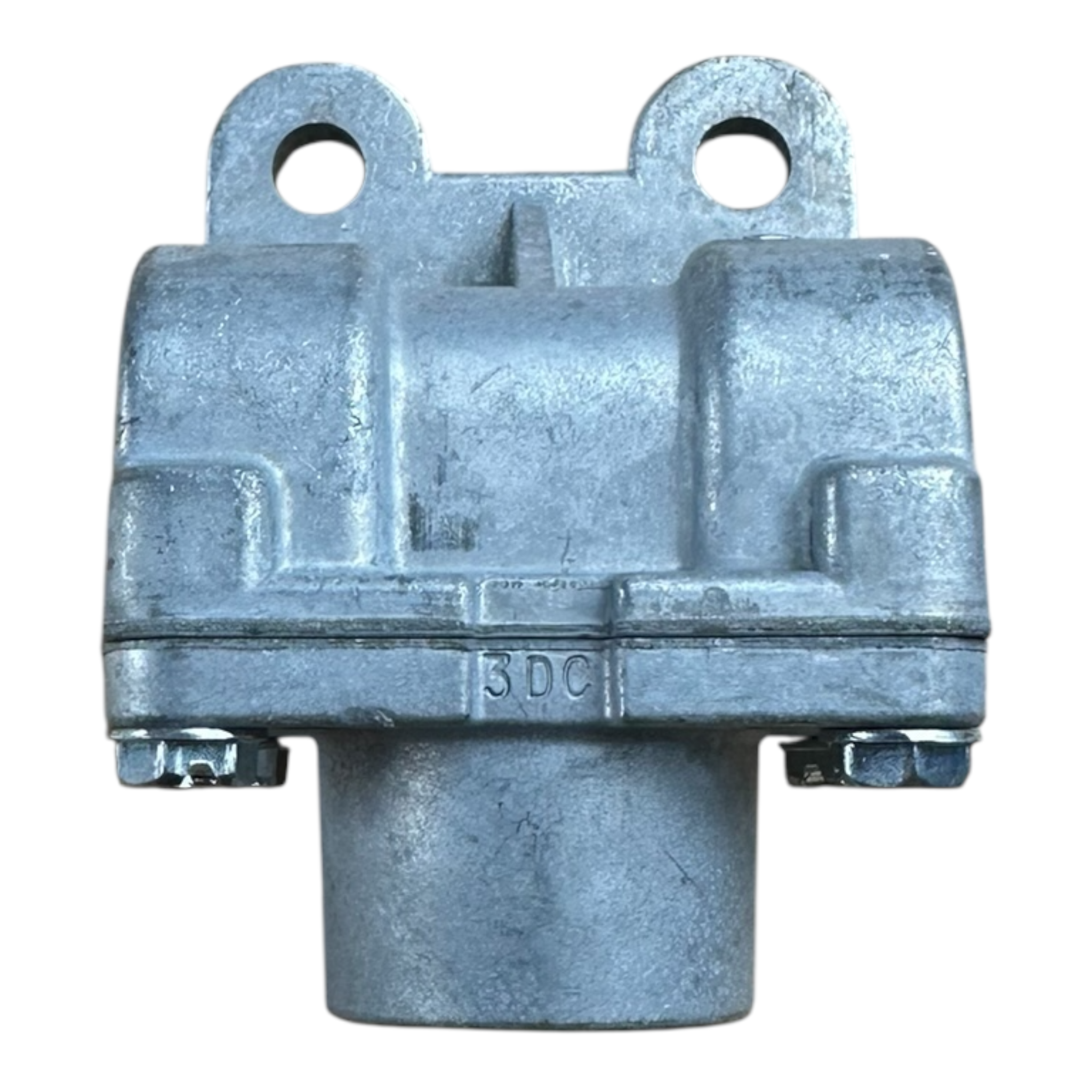

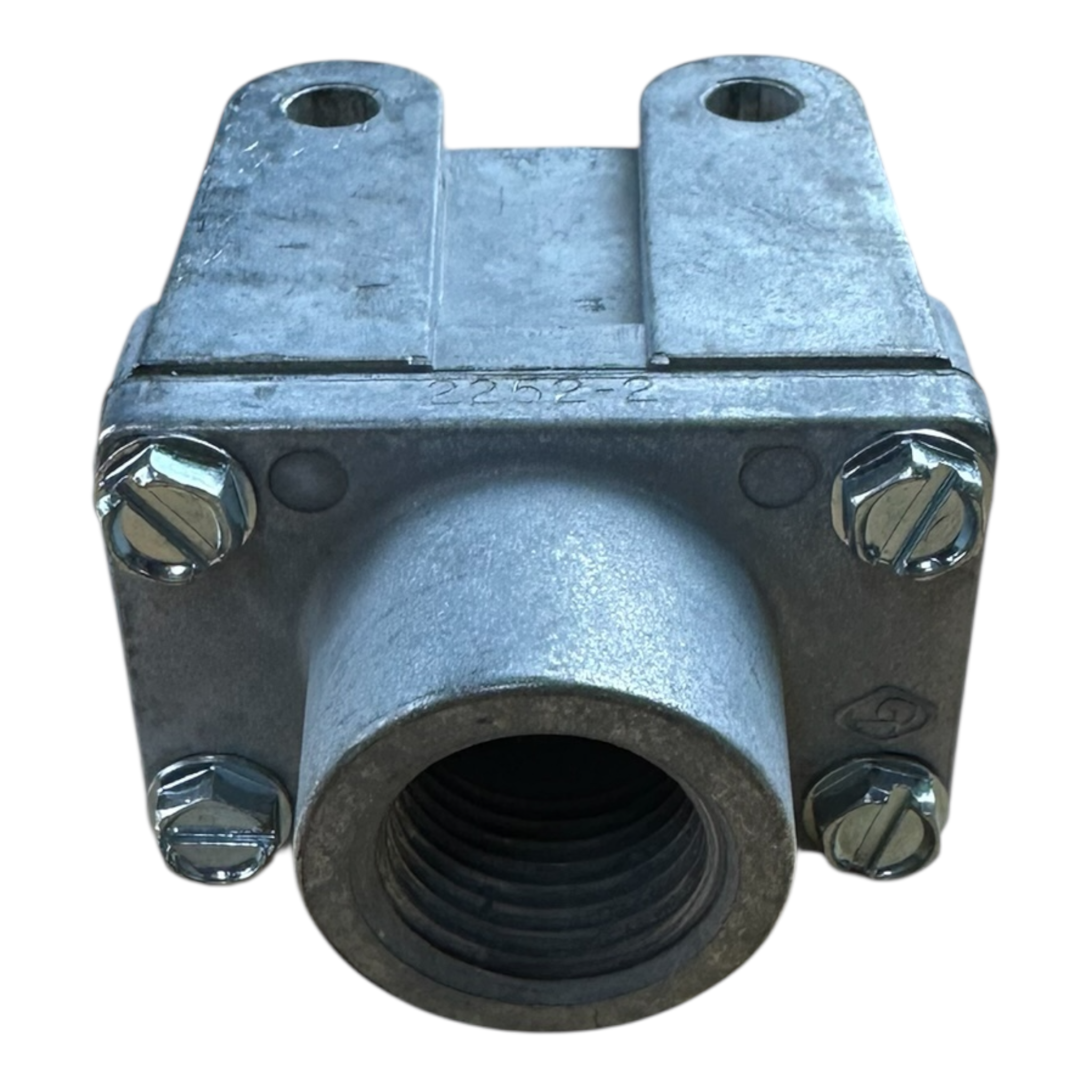

Automann 572.1035 Fuel Return Flow Splitter Tee – High Flow 60 GPH
Regular price
$89.99
Shipping calculated at checkout. Next Day Air available.
Returns accepted on most new, unopened parts — see our return policy.
Not sure it fits? Ask Leroy in our help chat.
The Automann 572.1035 is a high-flow fuel return splitter tee that replaces Velvac 060071, PACCAR / GT Development 2252-2D, and Tectran 801092 on dual-tank diesel fuel systems. Built by IMI Norgren — the OE supplier of return splitters across Class 8 platforms — the zinc die-cast tee distributes return fuel equally to left and right tanks at 60 GPH, eliminating the need for a crossover line.
Signs You Need a New Fuel Return Flow Splitter
- Uneven fuel levels between left and right tanks during operation
- Fuel leaking from the splitter body or port connections
- Excessive back pressure in the fuel return system causing hard starts or rough idle
- Cracked or corroded splitter housing from road salt or chemical exposure
Specifications
| Manufacturer | IMI Norgren (distributed by Automann) |
|---|---|
| Part Number | 572.1035 |
| Part Type | Fuel Return Flow Splitter Tee |
| Flow Rating | High Flow — 60 GPH |
| Back Pressure (both ports open) | ~13 in. H₂O |
| Back Pressure (ports closed) | ~30 in. H₂O |
| Port Size | (3) 1/2" FPT |
| Mounting Holes | (2) 1/4" |
| Mounting Hole Center-to-Center | 1.250 in. |
| Body Material | Zinc Die-Cast |
| Configuration | Tee |
| Engine Compatibility | Cummins ISX/X15, Detroit DD15/DD13, PACCAR MX-13, Volvo D13, Mack MP8 (dual-tank diesel applications) |
Cross References
This part replaces or is equivalent to the following part numbers:
- Velvac: 060071
- PACCAR / GT Development: 2252-2, 2252-2D, A252-2, A2252-2D
- Tectran: 801092
- Navistar / International: 2036081C1
- Volvo / Mack: 2770182, 8173518
Applications
This fuel return splitter tee fits heavy-duty trucks running dual-tank diesel fuel systems with the following engines:
- Cummins ISX, X15 (2008–present)
- Detroit DD13, DD15 (2008–present)
- PACCAR MX-13 (2010–present)
- Volvo D13 (2007–present)
- Mack MP8 (2007–present)
Representative vehicles using this configuration:
- Kenworth T660, T680, T880, W900
- Peterbilt 379, 380, 389, 579, 567
- Volvo VNL 670 Gen 2 (2003–2019), VNL, VNR
- Mack Pinnacle, Anthem with dual fuel tanks
- Freightliner Cascadia / Columbia with dual fuel tanks
- International / Navistar trucks with dual fuel tanks
- Western Star with dual fuel tanks
Verify your truck's VIN, fuel system configuration, and port size before ordering to confirm fitment.
