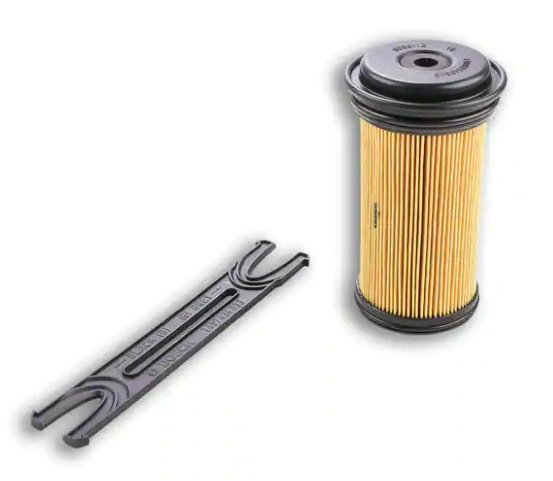

Fleetguard UF101 DEF Urea Filter – Cummins ISX / X15, Volvo D13, Paccar MX13

The Fleetguard UF101 is an OEM-grade Diesel Exhaust Fluid (DEF) filter designed for heavy-duty trucks equipped with Selective Catalytic Reduction (SCR) aftertreatment systems. Engineered for Bosch Denoxtronic 2.2 DEF dosing pumps used across Cummins, Volvo, Mack, Paccar, and other engine platforms, this filter removes crystals, particulates, and contaminants from the DEF supply to protect sensitive dosing components. Keeping the DEF system clean prevents costly injector failures, pump damage, and SCR-related derates that can sideline your truck.

Signs You Need a New DEF Filter

• SCR system fault or DEF system warning light on dashboard
• Engine derate warning or reduced power mode
• Increased DEF consumption without explanation
• DEF dosing fault codes (SPN 3364, SPN 5246, P204F, or similar)
• Crystallization or white deposits visible around DEF components
• NOx sensor efficiency codes indicating poor SCR performance
• DEF pump pressure faults or flow restriction warnings
• Ammonia smell from exhaust indicating improper DEF dosing

Specifications

Cross References

This part replaces or is equivalent to the following part numbers:

• Cummins: 5303604, 2880298, 2888182
• Bosch: 1457436033, 1457436088
• Volvo: 21516229, 21516516, 21496419, 21496421, 23381562, 21516231, 21673812, 7421574991, 7485138439
• Mack: 21496421, 23381558
• Paccar: 1927474, 1927474PE, 2014774, 2014774PE, 1847823, 847823PE
• Freightliner/Alliance: 68087337AA, 68087337AB, K68087337AA
• Caterpillar: 3783187, 378-3187, CA3783187
• Iveco: 47364243
• John Deere: RE554498, DZ114640
• Isuzu: 8981694030, 98169403
• Komatsu: 6540712320, 6540-71-2320
• Case/New Holland: 47364243, 5801667204
• Fendt/AGCO: V837079423, 837079423
• Clark: 11503650
• Deutz: 4601354, 4602317, 2934690
• Baldwin: PE17000
• Donaldson: P956170
• MANN: U5001KIT
• Hengst: E103UD295, D295
• Luberfiner: LU7100

Applications

This DEF filter fits trucks and equipment with Bosch Denoxtronic 2.2 SCR systems, including:

• Freightliner: Cascadia 113/125 (2008-2018), Coronado 132 (2010-2018), M2-106/M2-112 (2007-2018), 108SD/114SD, Century Class, Columbia
• Kenworth: T400, T460, T680, T800, T880, W900
• Peterbilt: 320, 365, 367, 379, 382, 384, 386, 387, 388, 389, 567, 579
• Volvo: VNL, VNR, VNX, VHD
• Mack: Anthem, Pinnacle, Granite, GU4, GU5
• International: ProStar, LoneStar, LT, HX, 4300, 4400, 7300, 7400, 7500, 7600
• Western Star: 4700, 4800, 4900, 5700
• Ford: F-650, F-750 (2010-2012 with Cummins)
• School Buses: Blue Bird All American/Vision, IC Bus CE/RE, Thomas Built Saf-T-Liner
• Off-Highway/Industrial: Caterpillar, John Deere, Komatsu, Case equipment with SCR systems

Why DEF Filter Maintenance Matters

The DEF filter protects the SCR dosing system from contamination, crystallized urea, and particulates that can clog the DEF injector and damage the pump. A restricted or failed DEF filter leads to dosing faults, reduced SCR efficiency, and progressive engine derates that can limit speed to as low as 5 mph. Regular filter replacement per manufacturer intervals prevents expensive repairs to DEF pumps ($800-$2,000), injectors ($500-$1,500), and SCR catalysts ($3,000-$8,000).

Verify your engine serial number and DEF system configuration before ordering. This filter is designed for Bosch Denoxtronic 2.2 systems—other DEF pump designs may require different filters.
