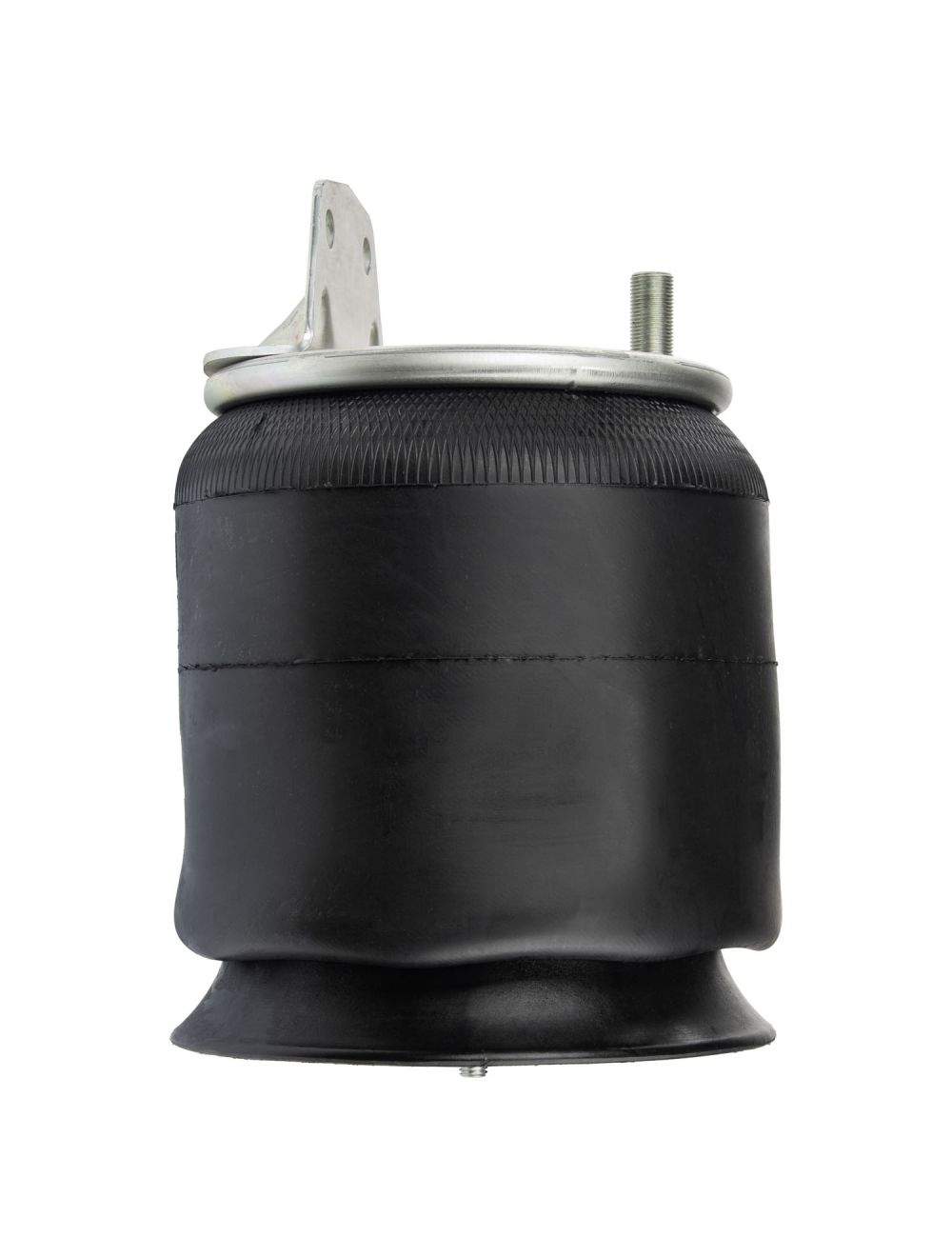

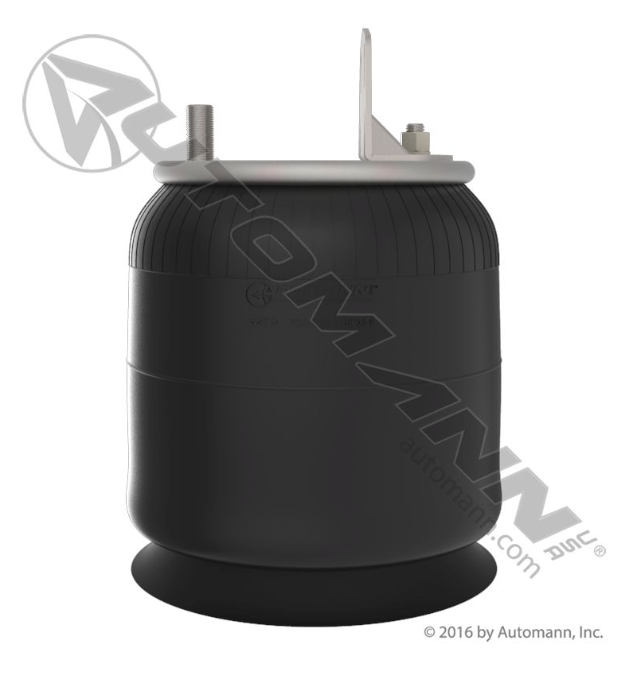

Automann AB1DK23P-9471 Rolling Lobe Air Spring – SAF Holland Neway AD-123/246 Drive Axle

Automann AB1DK23P-9471 rolling lobe air spring for SAF-Holland Neway AD-123, AD-246, and AD-369 drive-axle air suspensions. Direct aftermarket replacement for Firestone W01-358-9471 (1T15V-8 bellows, 3253 top plate, 9540 piston), Mack 57QL415M, and Holland / Neway 90557146 / 90557212. Plastic 1-bolt piston, internal jounce bumper, rated 7,100 lb at 100 PSI for severe-duty vocational service.

Signs You Need a New Air Spring

• Truck sitting lower than normal or uneven ride height side to side
• Visible cracks, dry rot, or chafing on the rubber bellows
• Audible air leak at the bellows or top plate
• Excessive bouncing or harsh ride under load
• Suspension dump / refill cycles run more frequently than normal

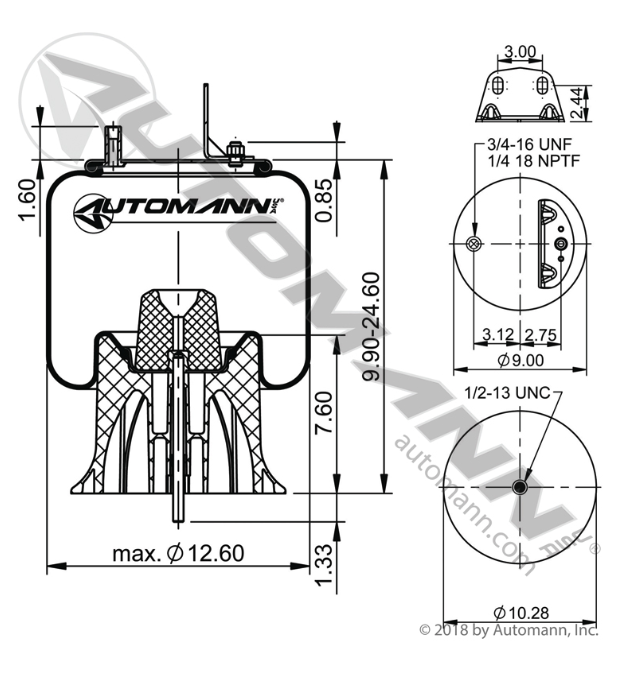

Specifications

Cross References

This part replaces or is equivalent to the following part numbers:

• Firestone: W01-358-9471, 9471
• SAF-Holland / Neway: 90557146, 90557177, 90557182, 90557212, 90557214
• Mack: 57QL415M
• Goodyear: 1R12-372, 1R12-504, 1R12-552
• ContiTech: 64409, 69648
• Oshkosh: 6HA945, 8HR994
• Navistar: 2022634C1
• Terex: 19480
• Triangle: 8458, 8502
• Dayton: 452-9471
• Meritor: FS9471
• PACCAR: AS94710
• World American: WA01-9471C

Applications

This rolling lobe air spring fits drive-axle air suspensions originally specified with any of the cross-referenced part numbers, including:

• SAF-Holland Neway AD-123 single drive-axle (23,000 lb)
• SAF-Holland Neway AD-246 tandem drive-axle (46,000 lb)
• SAF-Holland Neway AD-369 tridem drive-axle
• Mack vocational trucks with Neway AD-series suspensions
• Kenworth and Peterbilt vocational trucks (C500, T440, T800, W900) with Neway AD-series
• Oshkosh vocational trucks and fire apparatus
• Severe-duty service: construction, refuse, logging, fire apparatus, heavy haul

Bottom mount note: This piston has a 1-bolt bottom mount. For 2-bolt piston applications on the same suspension family, see Automann AB1DK23P-P572.

Verify your OEM part number, suspension model, and bottom-mount stud count before ordering to confirm fitment.
