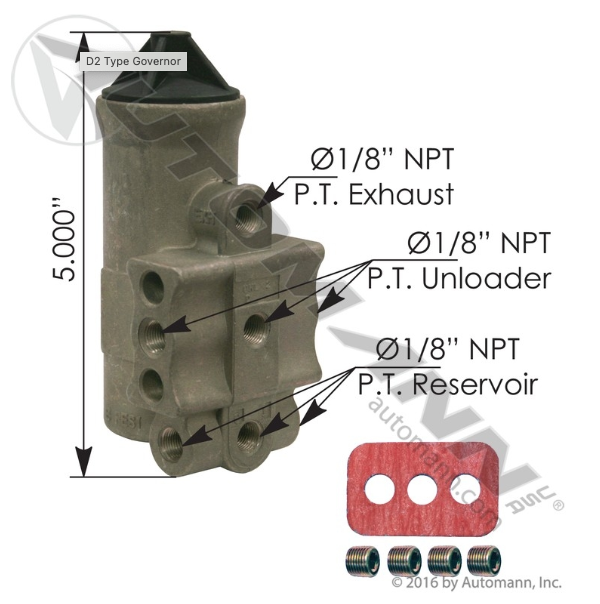

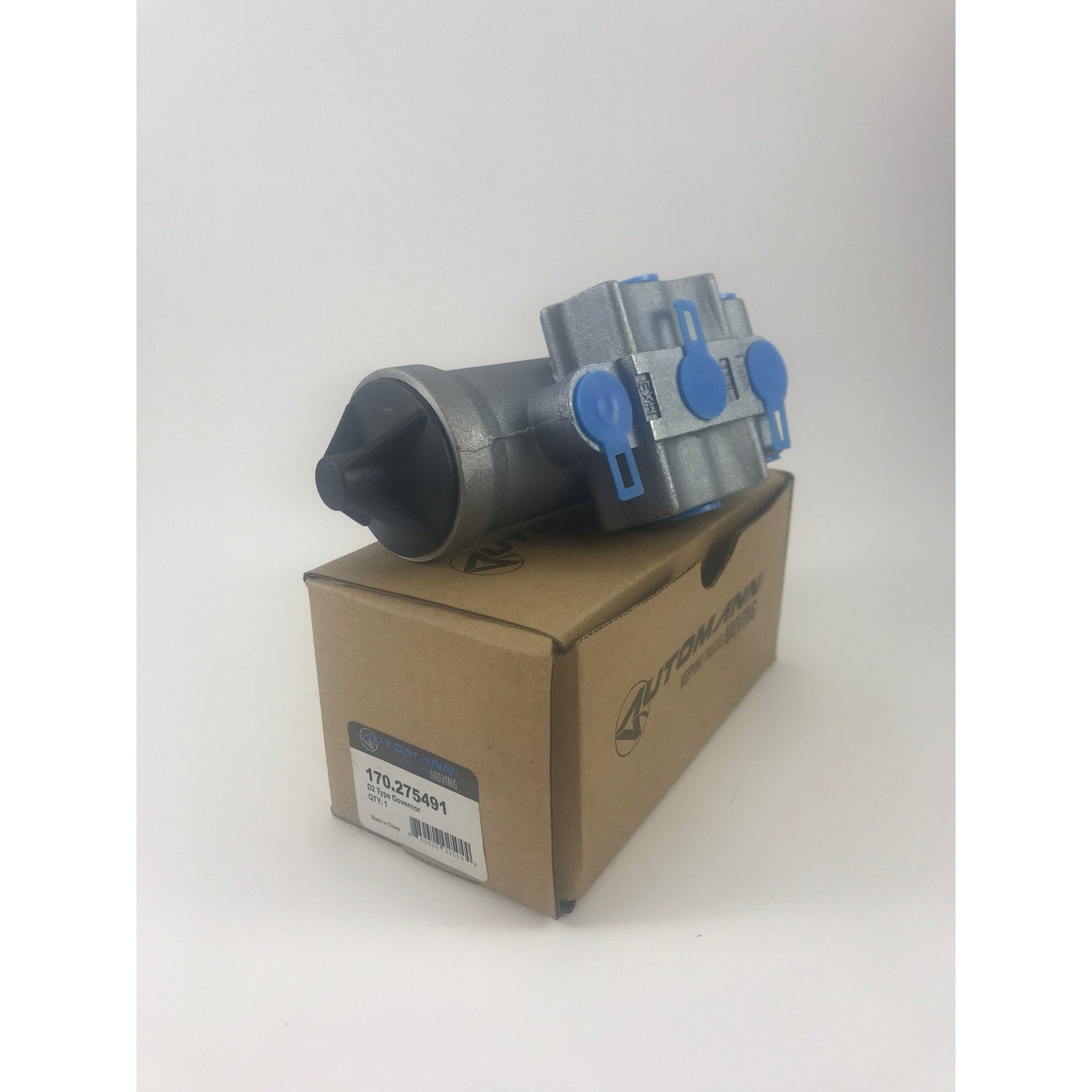

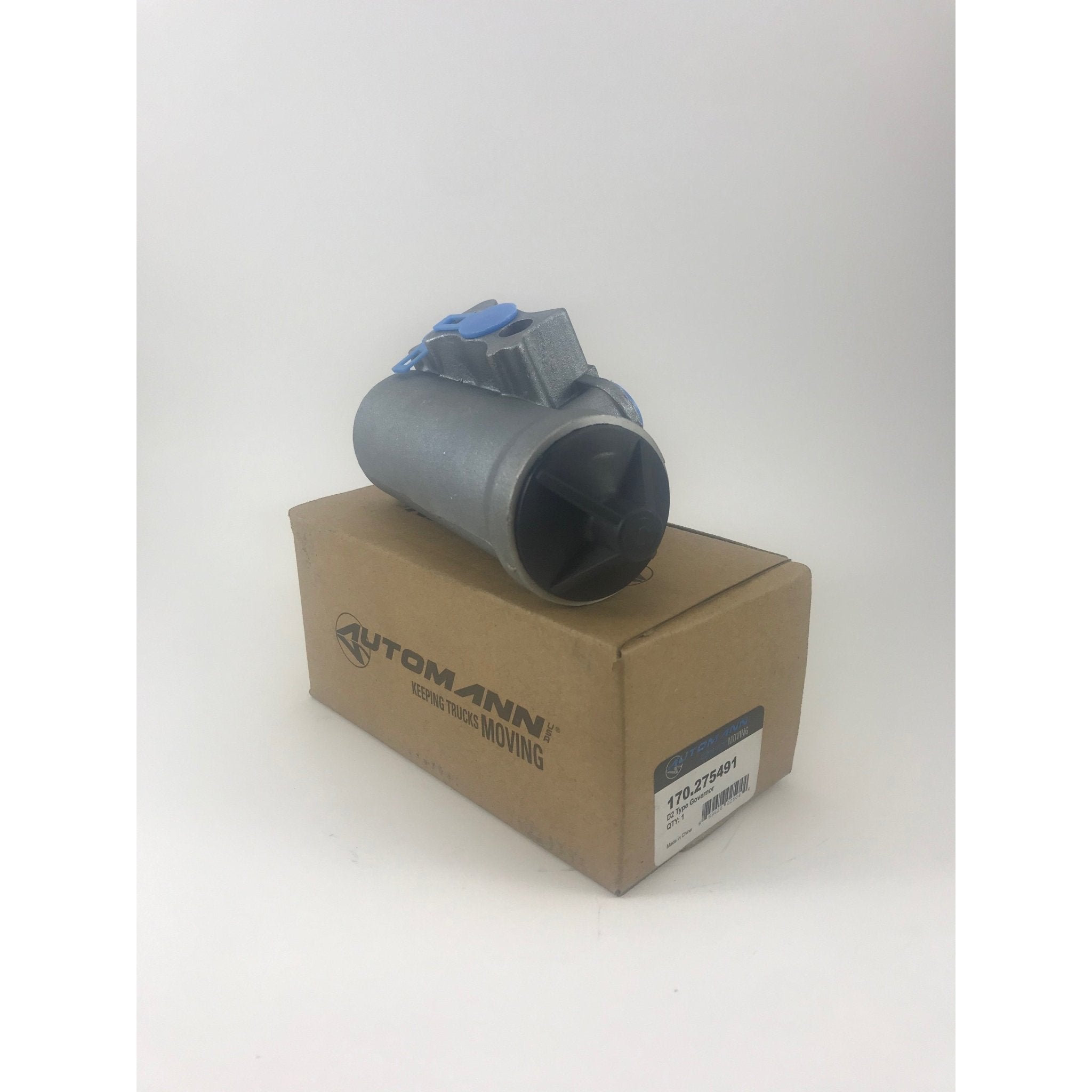

Automann 170.275491 D2 Type Air Governor Replacement For Bendix OR275491X

The Automann 170.275491 is a D-2 style air compressor governor that replaces Bendix 275491, OR275491X, 275200, and 275707 on heavy-duty truck air-brake systems. Calibrated to a 100 PSI cut-in / 120 PSI cut-out range, it cycles the air compressor unloader to maintain reservoir pressure on Bendix-equipped Mack, Volvo, Kenworth, Peterbilt, Freightliner, International, Oshkosh, and Caterpillar chassis. Includes mounting gasket and four plugs.

Signs You Need a New D-2 Air Governor

• Air compressor cycling outside the 100/120 PSI range, or running continuously without unloading
• Air system never building to cut-out pressure or cutting out too early
• Audible air leak from the governor exhaust port at idle
• Slow buildup time after a brake application or low-air warning

Specifications

Kit Includes

• D-2 air compressor governor — Automann 170.275491
• Mounting gasket (qty 1)
• Port plugs (qty 4)

Cross References

This governor replaces or is equivalent to the following part numbers:

• Bendix: 102178, 275200, 275491, 275707, OR275491X
• Meritor: R955275491X
• Caterpillar: 4N9680
• Mack: 20QE275A, 20QE27591, 20QE322, 20QE322P1, 20QE322P2, 20QE341
• Volvo: V1110190
• Kenworth: K29566
• International (IHC): 1654936C91, 410986C92, 997067R91
• Oshkosh: 9155GX
• Euclid: EBN275491N
• Midland: KN18530, N30190Y

Applications

This air governor fits heavy-duty Class 7 and Class 8 trucks equipped with Bendix-style air brake systems, including:

• Mack on-highway and vocational trucks
• Volvo VHD/VNL/VNM
• Kenworth W900/T800/T660 and Peterbilt 379/389 series
• Freightliner Cascadia, Coronado, M2 Business Class
• International (Navistar) on-highway and vocational chassis
• Oshkosh and other vocational Class 8 platforms
• Caterpillar industrial and vocational equipment using D-2 governors

Verify your air system pressure spec and existing governor port configuration before installation.
