Borg Warner 1539-10020-30 EDM Engine Shutdown Module – Freightliner FLD / Detroit DDEC III

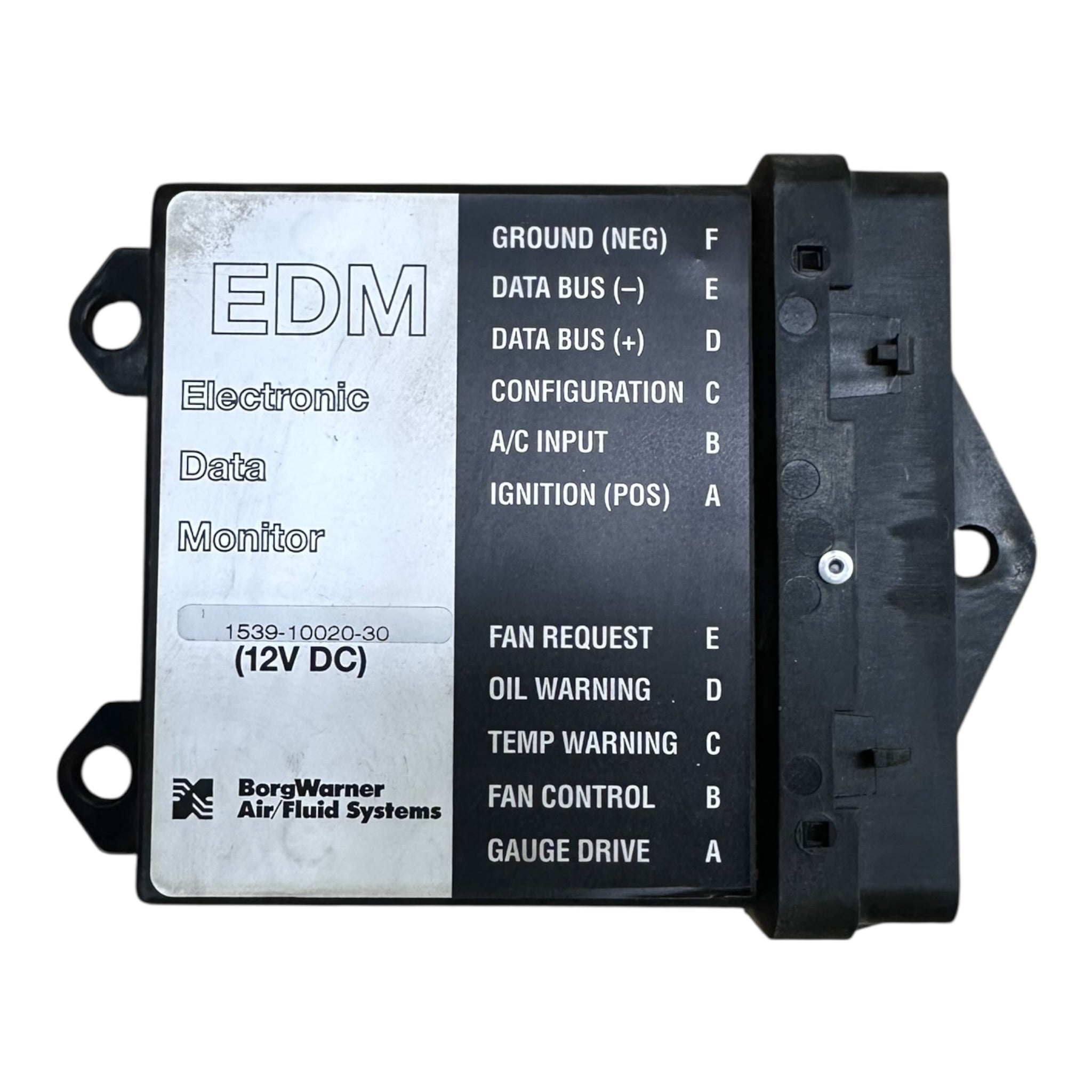

Borg Warner (Kysor) 1539-10020-30 Electronic Data Monitor (EDM) engine-shutdown control module for Freightliner FLD, FLD 112, and FLB trucks equipped with Detroit Diesel Series 50 or Series 60 engines on DDEC III controls. This is the latest supersession of 1539-10020-10 and 1539-10020-20. Reads coolant temperature and oil pressure off the DDEC III data link, drives the fan clutch, and triggers engine protection shutdown when critical thresholds are exceeded.

What the EDM Does

The Kysor EDM consolidates four legacy sensors — coolant temperature gauge sensor, fan control temperature sensor, overheat warning sensor, and low-oil-pressure warning sensor — by reading engine data over the DDEC III data bus. It commands the fan clutch and initiates engine shutdown if oil pressure drops or coolant temperature climbs past programmed thresholds. The EDM is a separate module from the DDEC III ECM; the two communicate over the proprietary DDEC III data link.

Signs You Need a New EDM

• Fan clutch running continuously or failing to engage on demand
• Erratic or stuck coolant temperature gauge reading
• False engine-protection shutdowns with no confirmed fault in the ECM
• Low oil pressure warning lamp active while oil pressure measures normal
• Loss of communication between dash gauges and the DDEC III data link

Specifications

Cross References

This module supersedes and is equivalent to the following part numbers:

• Borg Warner / Kysor (KYS): 1539-10020-10, 1539-10020-20
• Medallion: 1539-10020-30 (same module, second-source brand)

Applications

This EDM fits the following engine and truck combinations:

• Detroit Diesel Series 50 with DDEC III (1994–late 1990s)
• Detroit Diesel Series 60 with DDEC III (1994–late 1990s)

Representative trucks using these engines:

• Freightliner FLD Conventional (1994 and later, DDEC III)
• Freightliner FLD 112 Conventional (1994 and later, DDEC III)
• Freightliner FLB COE (1994 and later, DDEC III)

Compatibility note: Specific to the Kysor fan-clutch system interfaced with DDEC III. Not compatible with DDEC II or DDEC IV trucks. Verify your truck's fan clutch manufacturer and engine-control version before ordering.

Verify engine serial number and DDEC version before ordering to confirm fitment.
