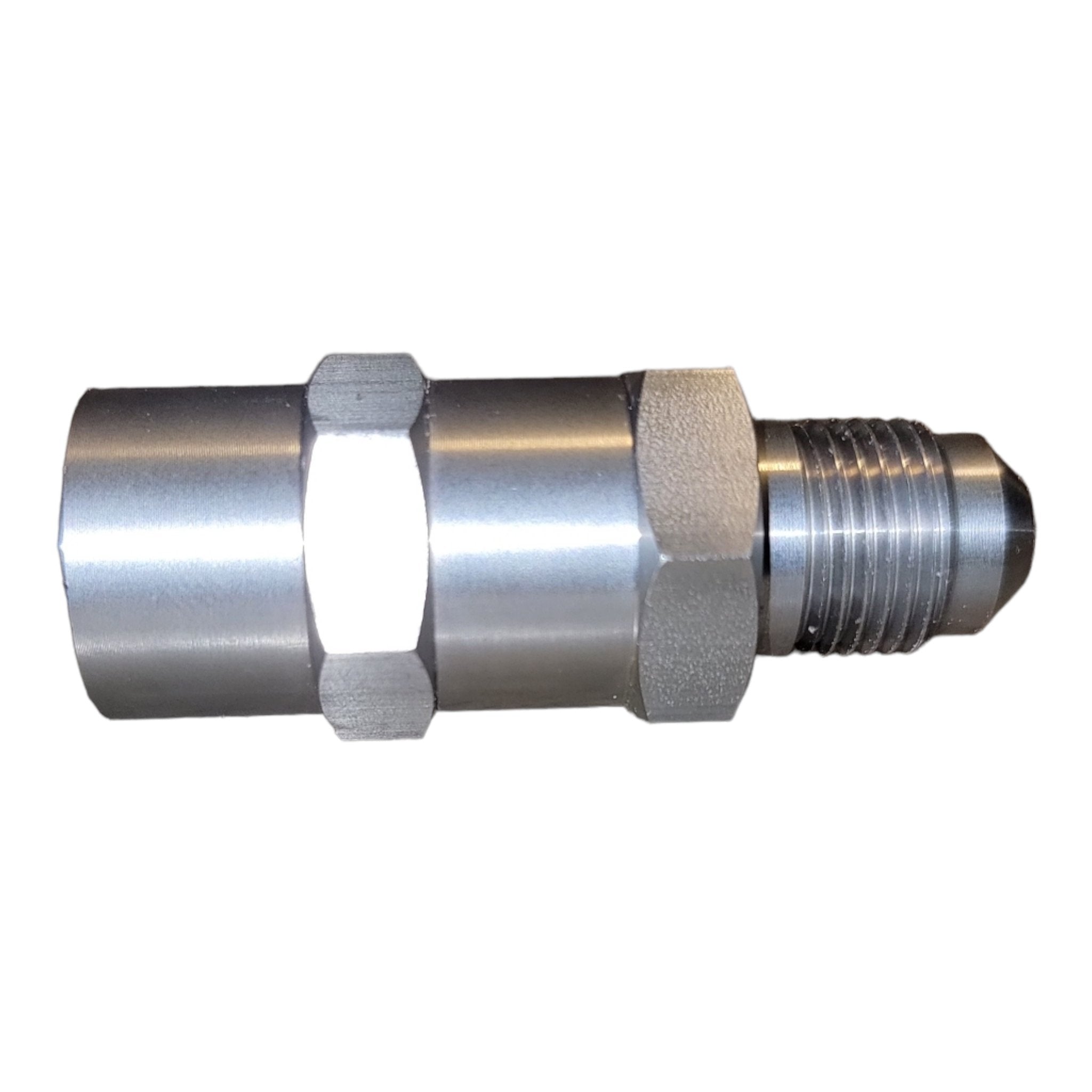

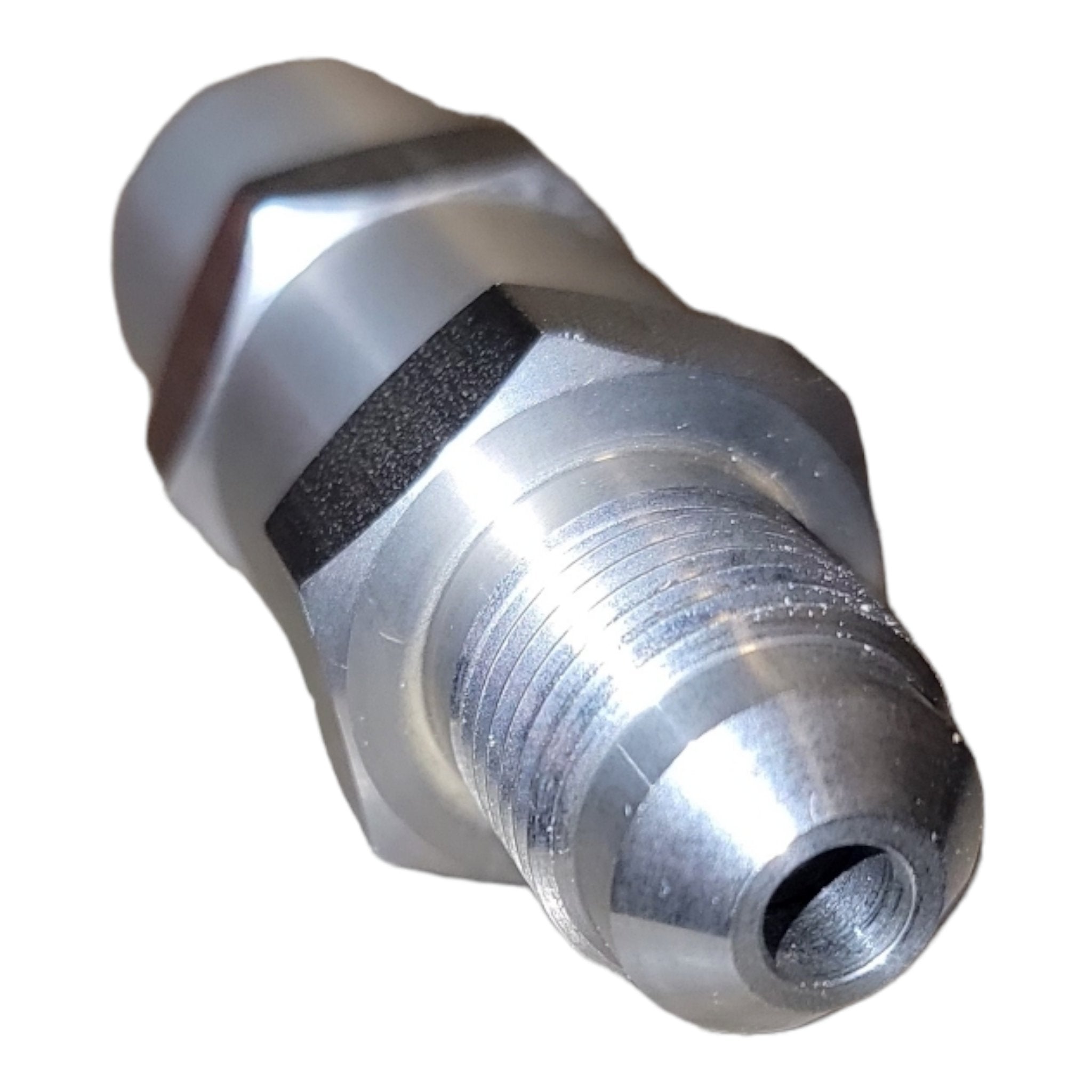

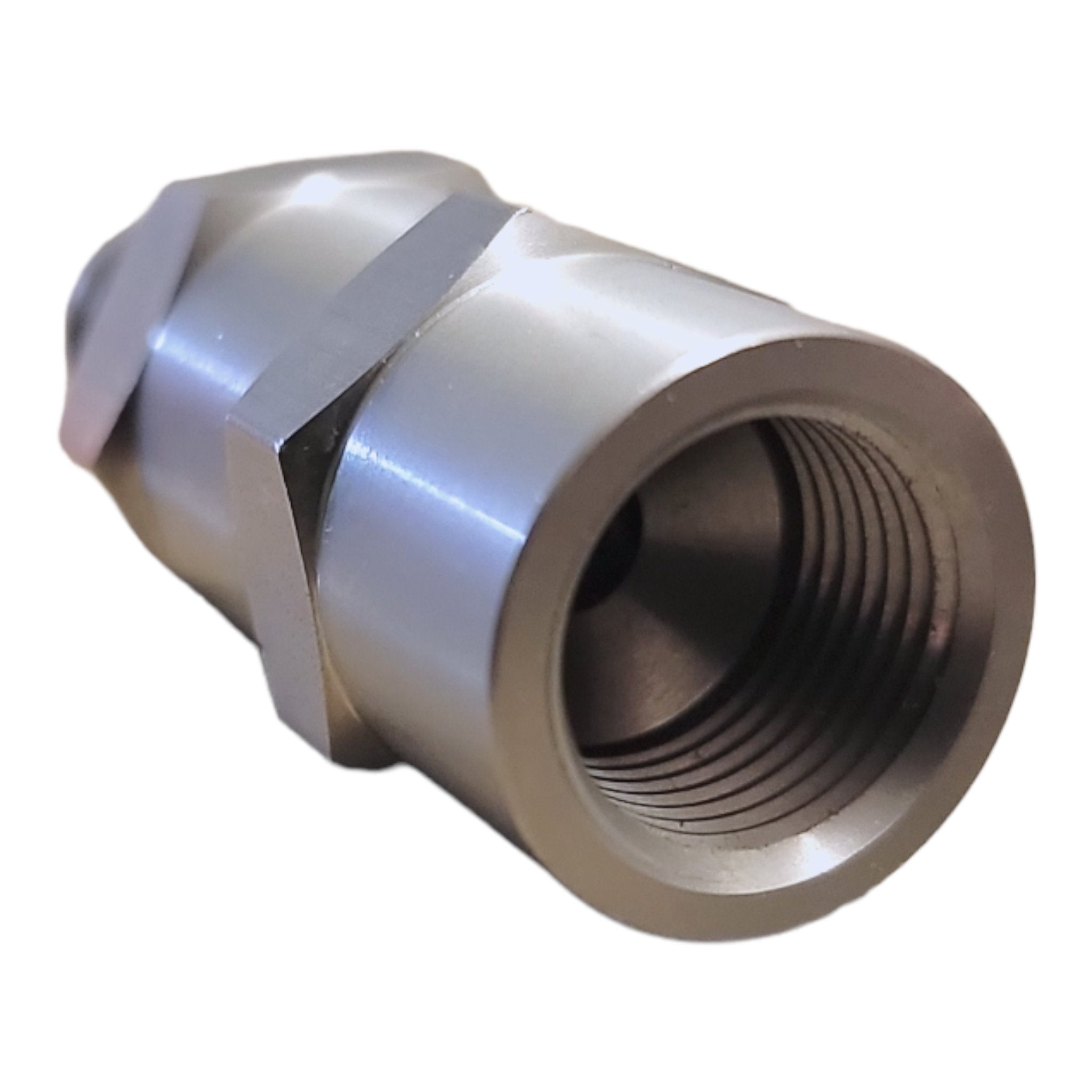

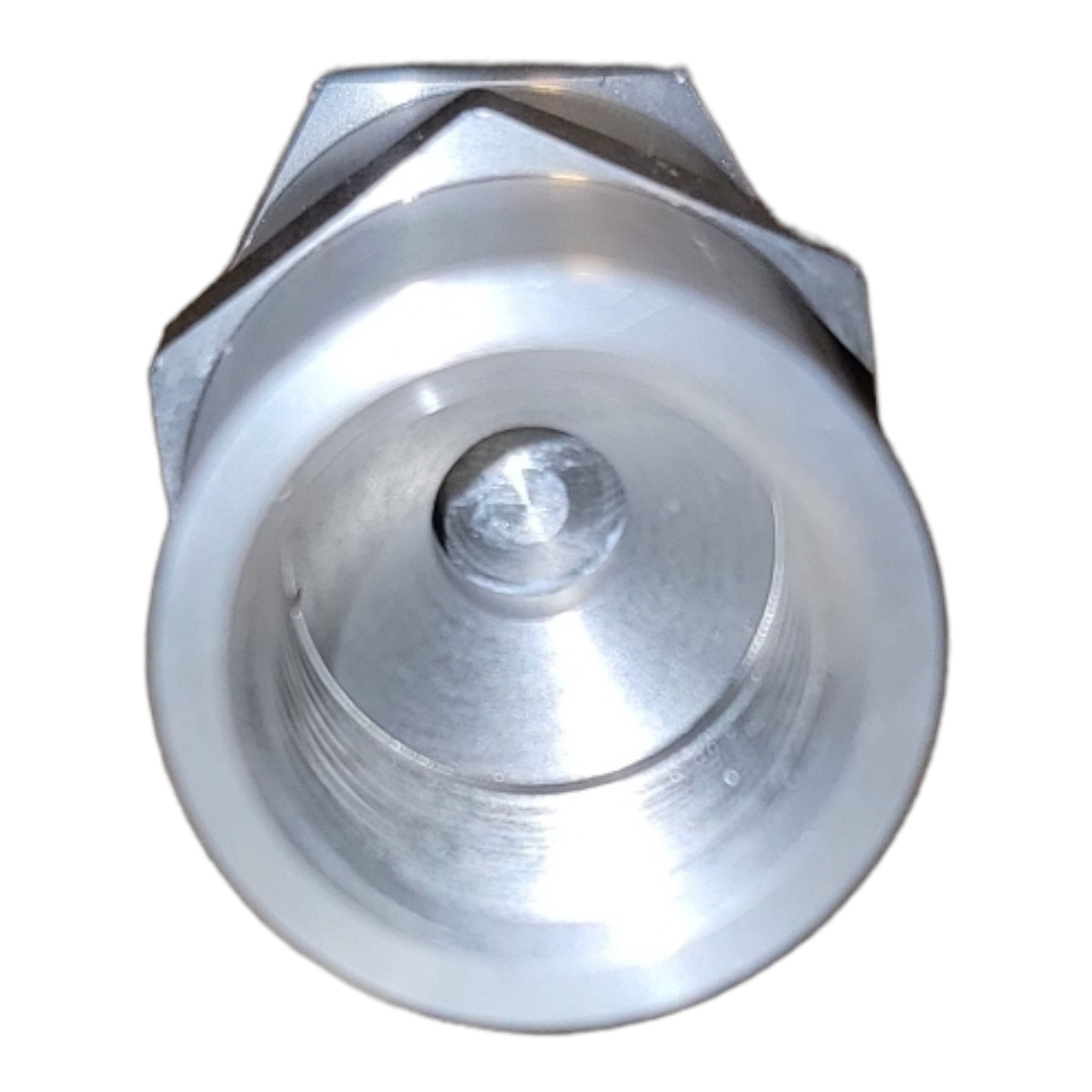

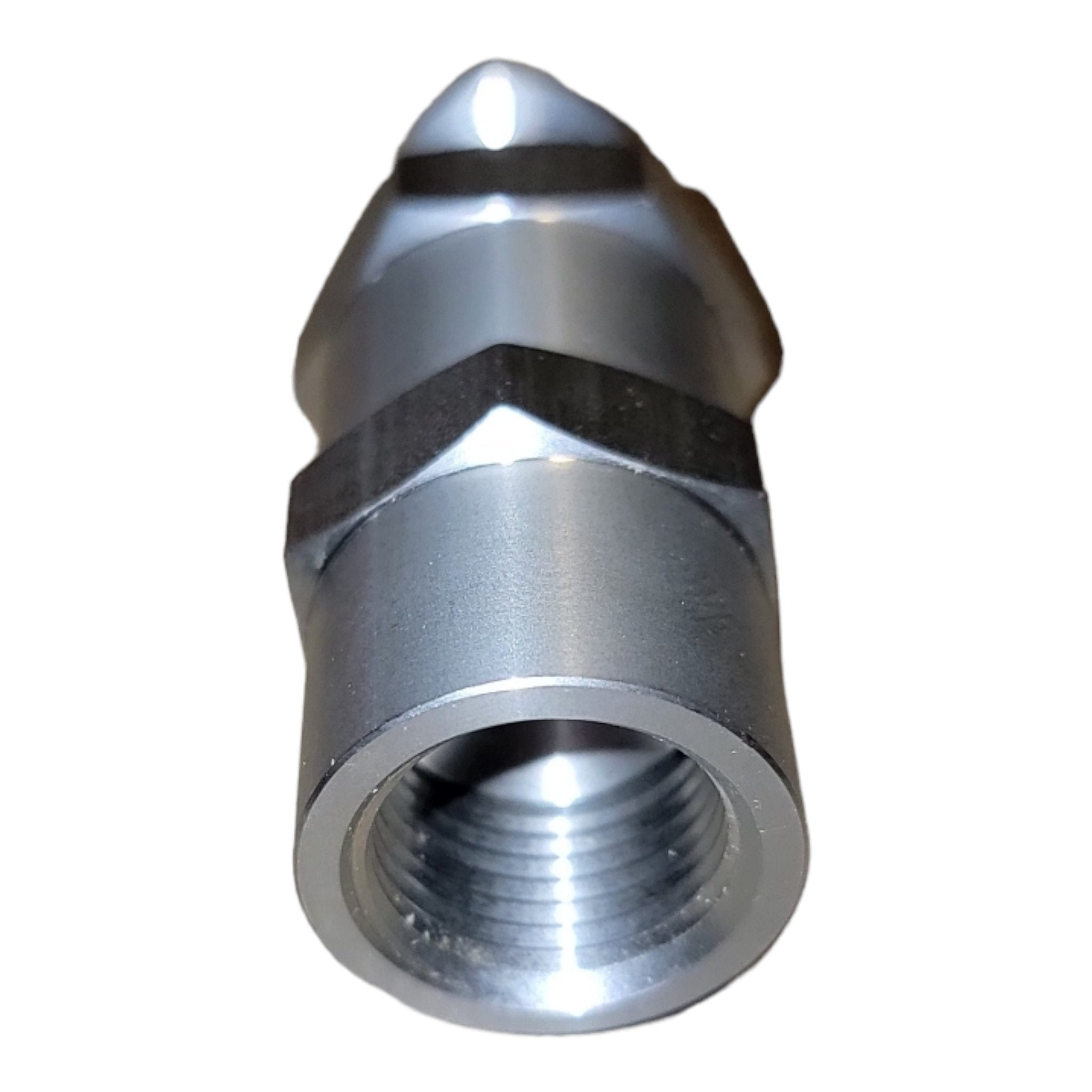

PAI 645050 Fuel Check Valve – Detroit Diesel Series 60 12.7L 14L

The PAI 645050 is a premium aftermarket fuel pump check valve designed for Detroit Diesel Series 50 and Series 60 engines. This valve is a critical component in the fuel system that prevents fuel from draining back to the tank when the engine is shut off, ensuring reliable starts and proper fuel pressure. PAI Industries manufactures this valve in the USA to meet or exceed OEM specifications, backed by their 2-year unlimited mileage warranty.

Signs You Need a New Fuel Check Valve

• Hard starting or extended cranking, especially after sitting overnight
• Engine cranks but won't start until after prolonged cranking
• Fuel system loses prime after engine shutdown
• Air in fuel system causing rough running or stalling
• Fuel draining back from injector lines after shutdown
• Inconsistent fuel pressure readings
• Engine starts fine when warm but struggles when cold
• Fuel filter bowl level drops after engine is turned off

Specifications

Cross References

This part replaces or is equivalent to the following part numbers:

• PAI: 645050
• Detroit Diesel: 23516993
• Alternate: A-23516993, A23516993, DDC23516993

Engine Applications

This fuel check valve fits the following Detroit Diesel engines:

• Series 50 8.5L: All years
• Series 60 11.1L: 1987-1998
• Series 60 12.7L: 1987-2007 (DDEC I through V)
• Series 60 14.0L: 2001-2011 (DDEC IV through VI)

Vehicle Applications

The Detroit Diesel Series 60 engine was installed in Class 8 trucks, buses, and coaches from major manufacturers:

• Freightliner: FLD, Classic, Century, Columbia, Coronado, Argosy (1987-2011)
• Kenworth: W900, T800, T600, T660, T2000 (1987-2011)
• Peterbilt: 379, 378, 377, 385, 386, 387, 389 (1987-2011)
• International: 9200, 9300, 9400, 9600, 9900 (select years)
• Volvo: VN Series, WIA, WG (select years)
• Western Star: 4900 Series (select years)
• Sterling: A-Line, L-Line (select years)
• Transit Buses: MCI, Prevost, New Flyer, Gillig, NABI
• Motor Coaches: Prevost, MCI, Van Hool, Blue Bird
• RV/Motorhomes: Monaco, Newmar, Country Coach, Newell

How the Fuel Check Valve Works

The fuel check valve is located in the fuel system between the fuel pump and the fuel return line. When the engine is running, the fuel pump draws fuel from the tank and circulates it through passages in the cylinder head to supply the unit injectors. Excess fuel returns to the tank through the return line. The check valve contains a spring-loaded mechanism that allows fuel to flow in one direction only. When the engine is shut off, the check valve closes to prevent fuel from draining back out of the fuel galleries in the cylinder head. This keeps the fuel system primed and ready for the next start. If the check valve fails, fuel drains back to the tank, causing air to enter the fuel lines and resulting in hard starting or no-start conditions, especially after the vehicle has sat for extended periods.

Installation Notes

Before replacing the fuel check valve, verify the valve location on your specific engine application. On some Series 60 installations, the check valve may be located in the fuel return line near the fuel tank rather than on the back of the engine. Use thread sealant appropriate for fuel system applications. After installation, prime the fuel system and verify there are no leaks before starting the engine. If hard starting issues persist after replacing the check valve, inspect fuel lines for cracks, loose connections, and check injector O-rings for leaks.

Verify your engine serial number and fuel system configuration to confirm application before ordering. Location of the check valve may vary by chassis manufacturer and fuel system layout.
