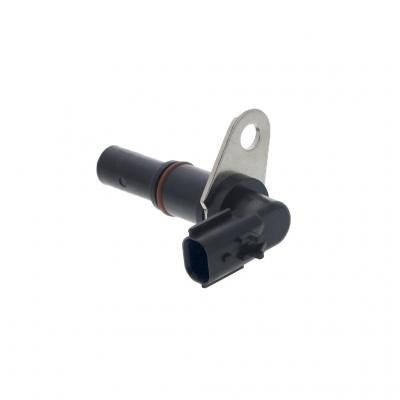

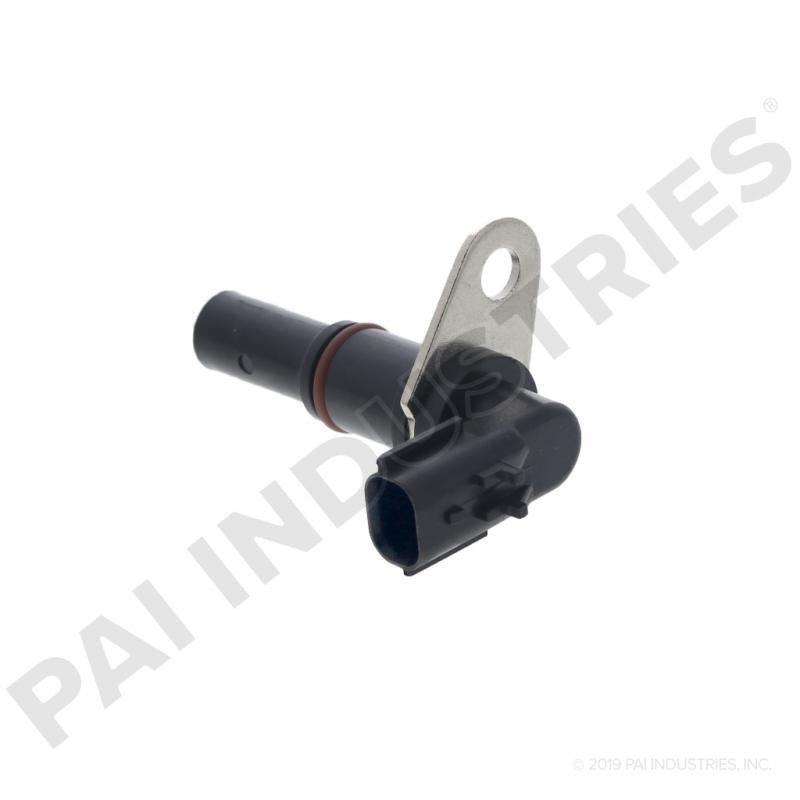

Detroit Diesel 23527339 Timing Reference Sensor (TRS) – Series 60

Genuine Detroit Diesel 23527339 timing reference sensor (TRS) for Detroit Series 60 (11.1L, 12.7L, 14L) and Series 50 engines with DDEC electronic controls. Mounts on the left side of the gear case at the crankshaft centerline and reads the timing-wheel teeth, feeding crank-position and engine-speed data to the DDEC ECM for injector timing. Works in concert with the synchronous reference sensor (SRS, 23527338) on the camshaft for cylinder ID. Includes O-ring; PAI cross-references this as 650667.

Signs You Need a New Timing Reference Sensor

• Engine cranks but will not start (DDEC Code 41 — TRS signal missing)
• Rough running, misfiring, or erratic engine operation
• DDEC fault codes for crank/cam sensor signal (41, 42, 43)
• Erratic tach reading or RPM signal dropouts
• Hard starting, especially when engine is hot
• Oil contamination or corrosion in sensor connector

Specifications

Cross References

This part replaces or is equivalent to the following part numbers:

• Detroit Diesel: 23527339
• PAI: 650667
• Interstate McBee: A-23527339

Applications

This timing reference sensor fits the following engines:

• Detroit Series 60 11.1L (1987-1998, DDEC II/III)
• Detroit Series 60 12.7L (1987-2007, DDEC II/III/IV/V)
• Detroit Series 60 14L (2001-2007, DDEC IV/V)
• Detroit Series 50 (select EGR applications)

Representative vehicles using these engines:

• Freightliner Classic, Century, Columbia, FLD, FLC (Series 60)
• Kenworth T600, T800, W900 (Series 60)
• Peterbilt 379, 385, 386, 387 (Series 60)
• Western Star 4900, 5900 (Series 60)
• International 9000 Series (Series 60)
• Transit buses and motorcoaches with Series 50/60 power

Series 60 / 50 only — DD13 / DD15 / DD16 use a different crank-position sensor. Verify DDEC system version and engine serial before ordering.
