Detroit Diesel R23524771 Injector Rocker Arm Assembly – Series 60

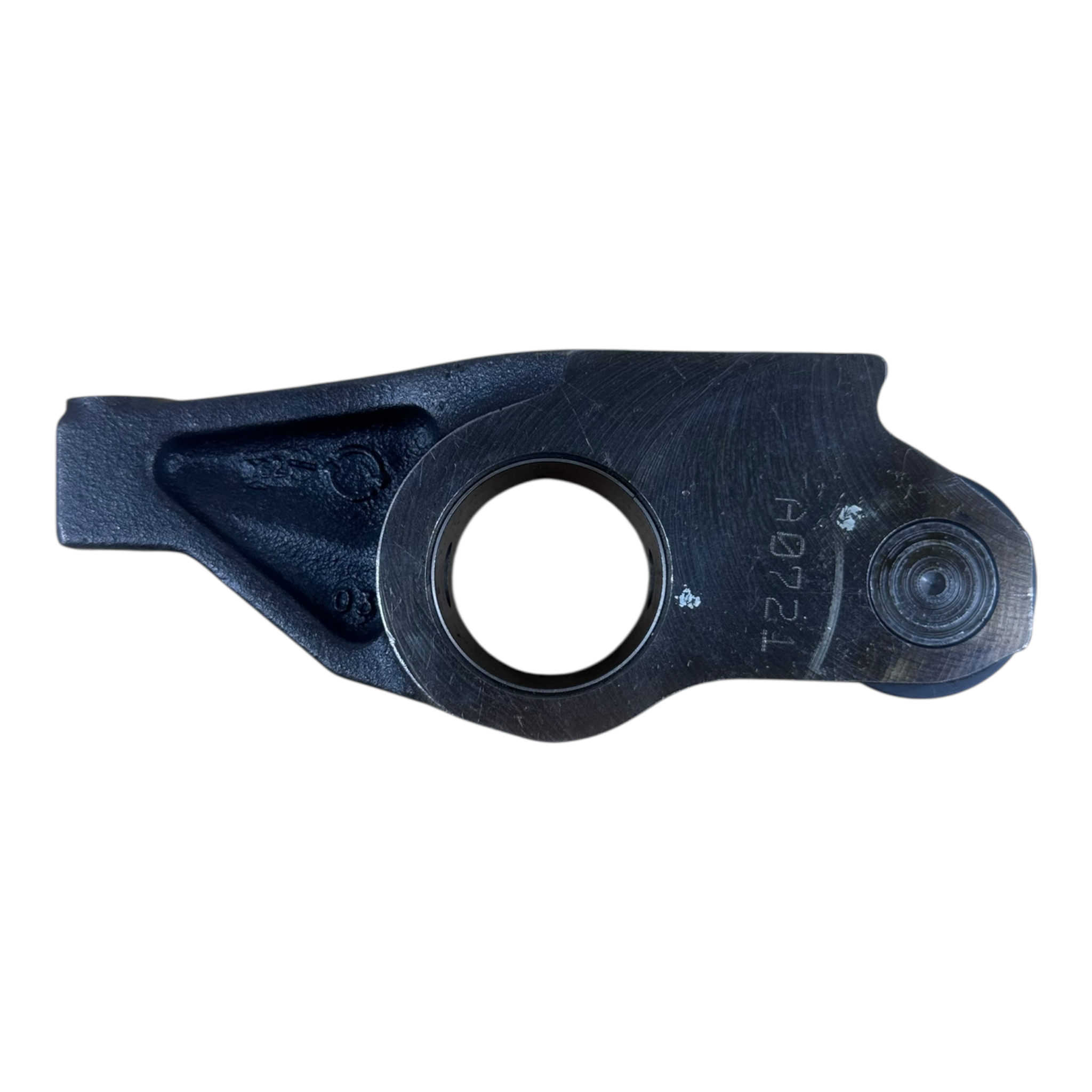

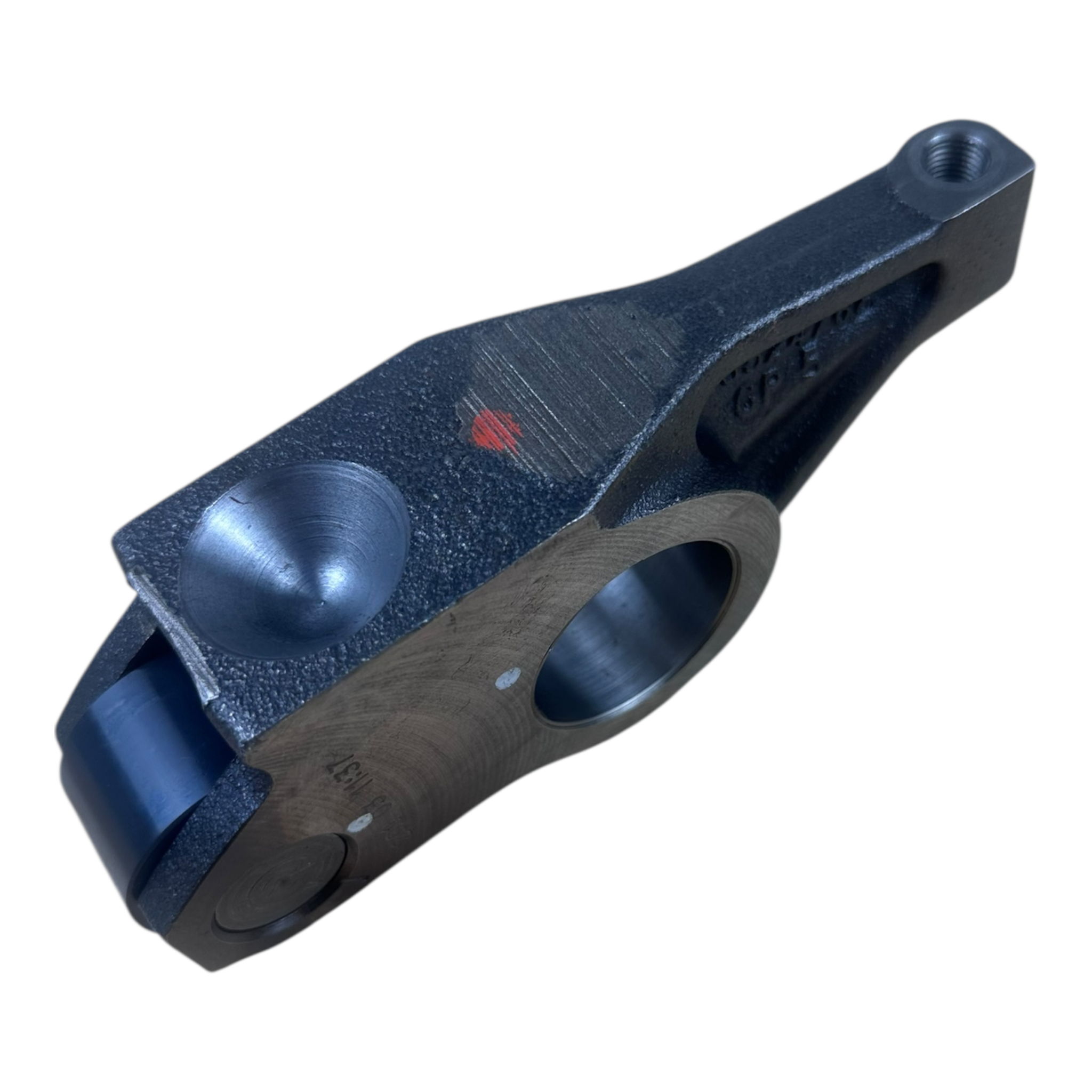

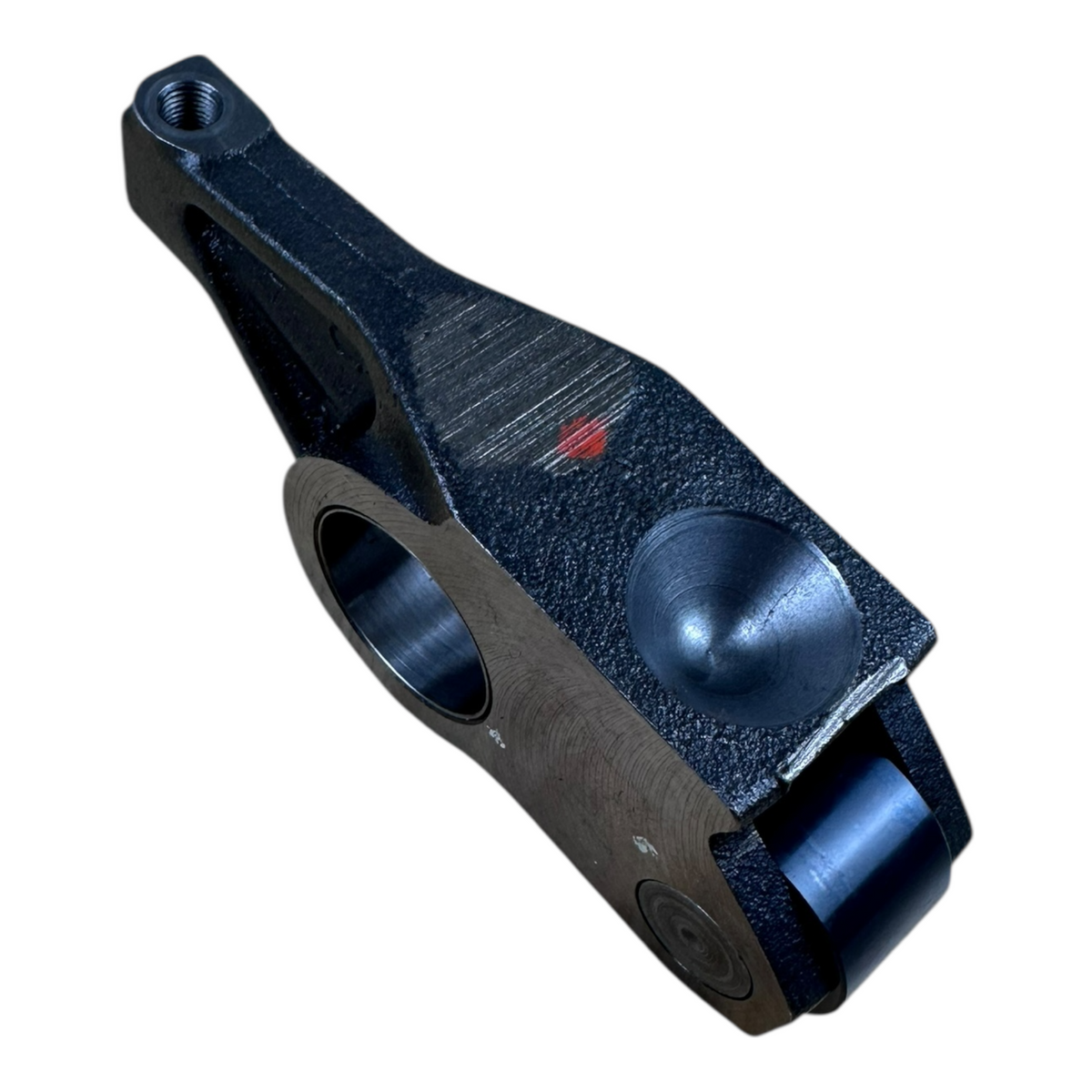

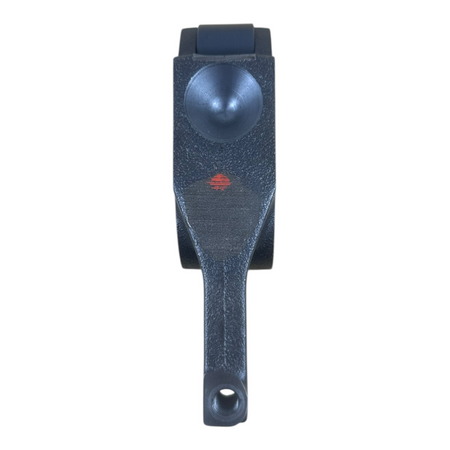

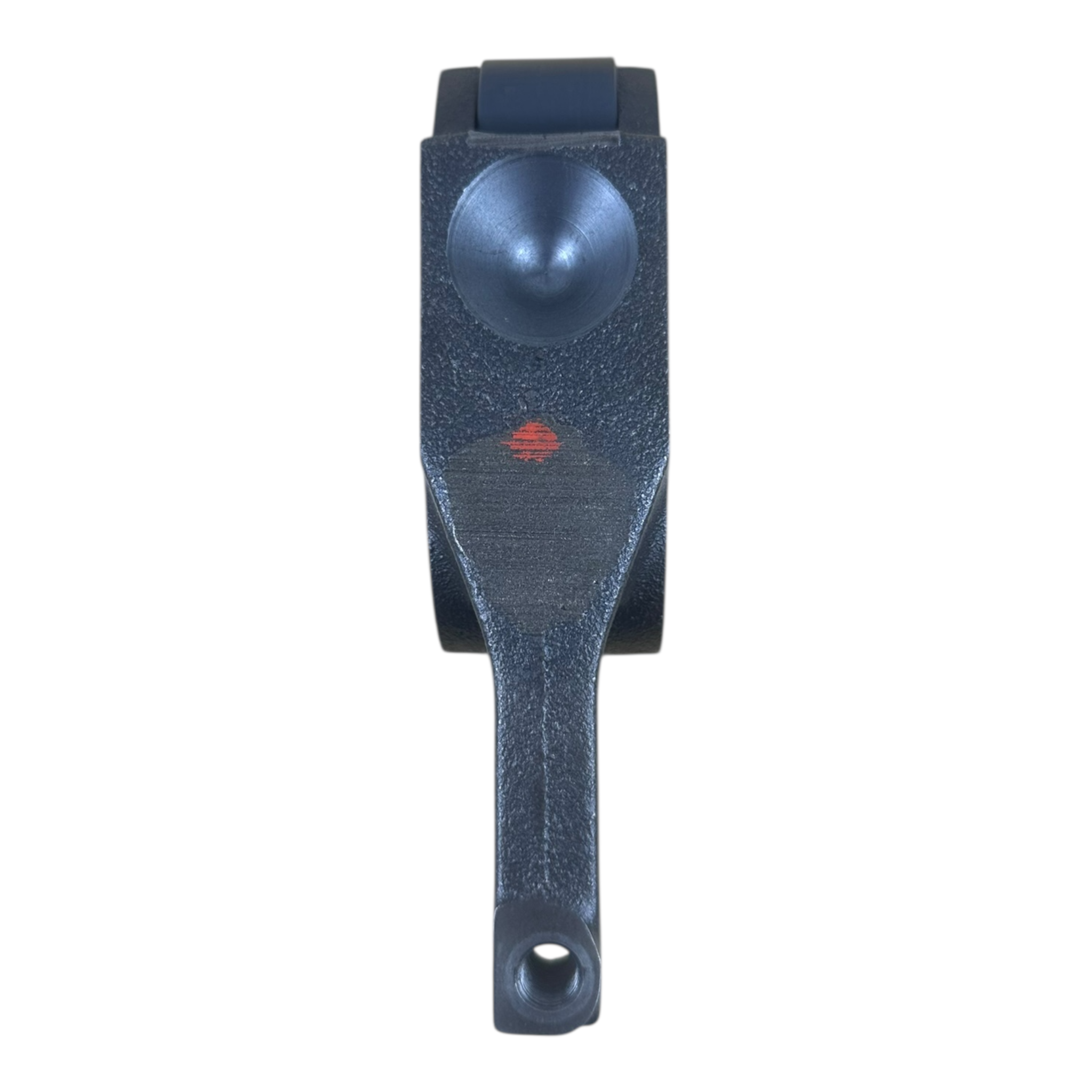

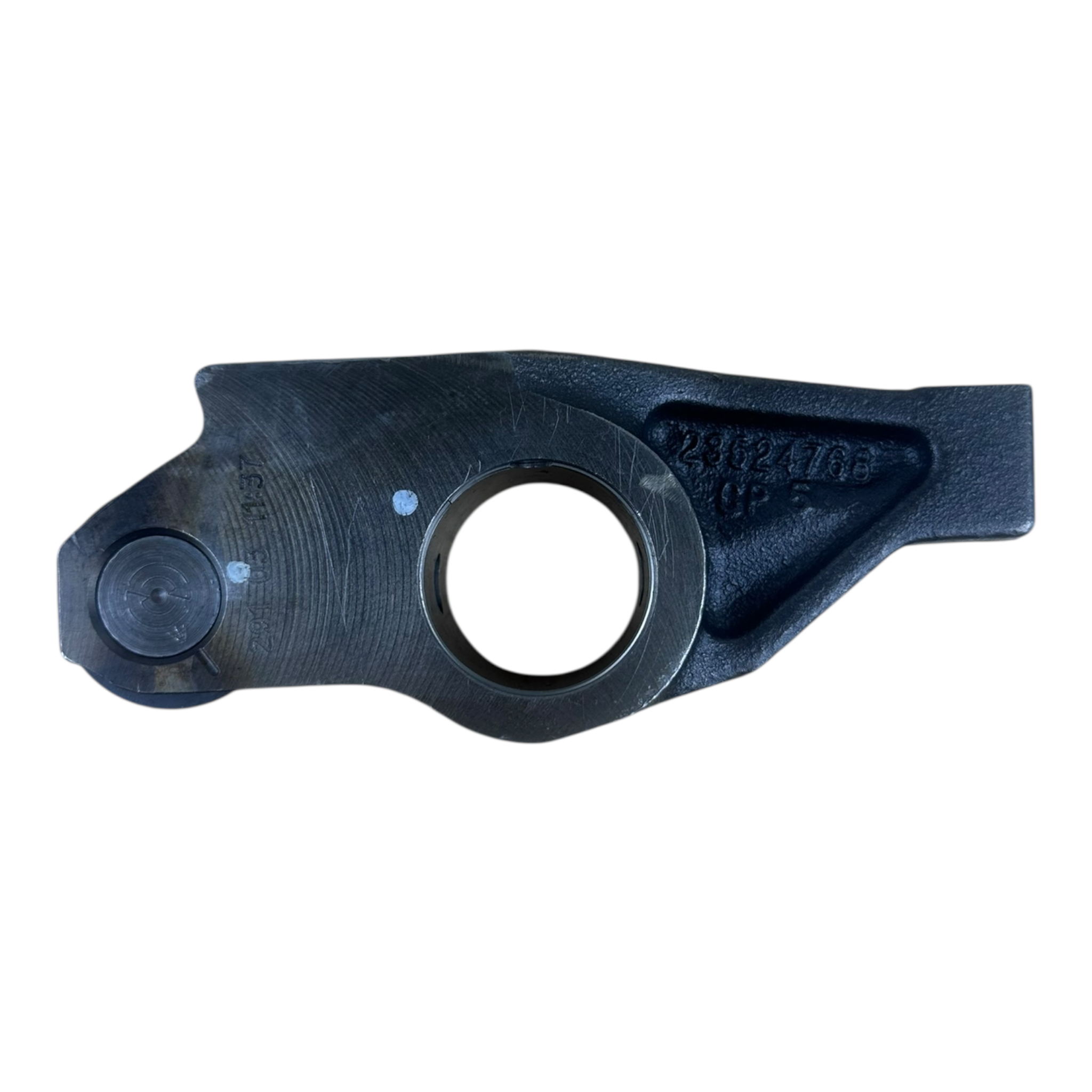

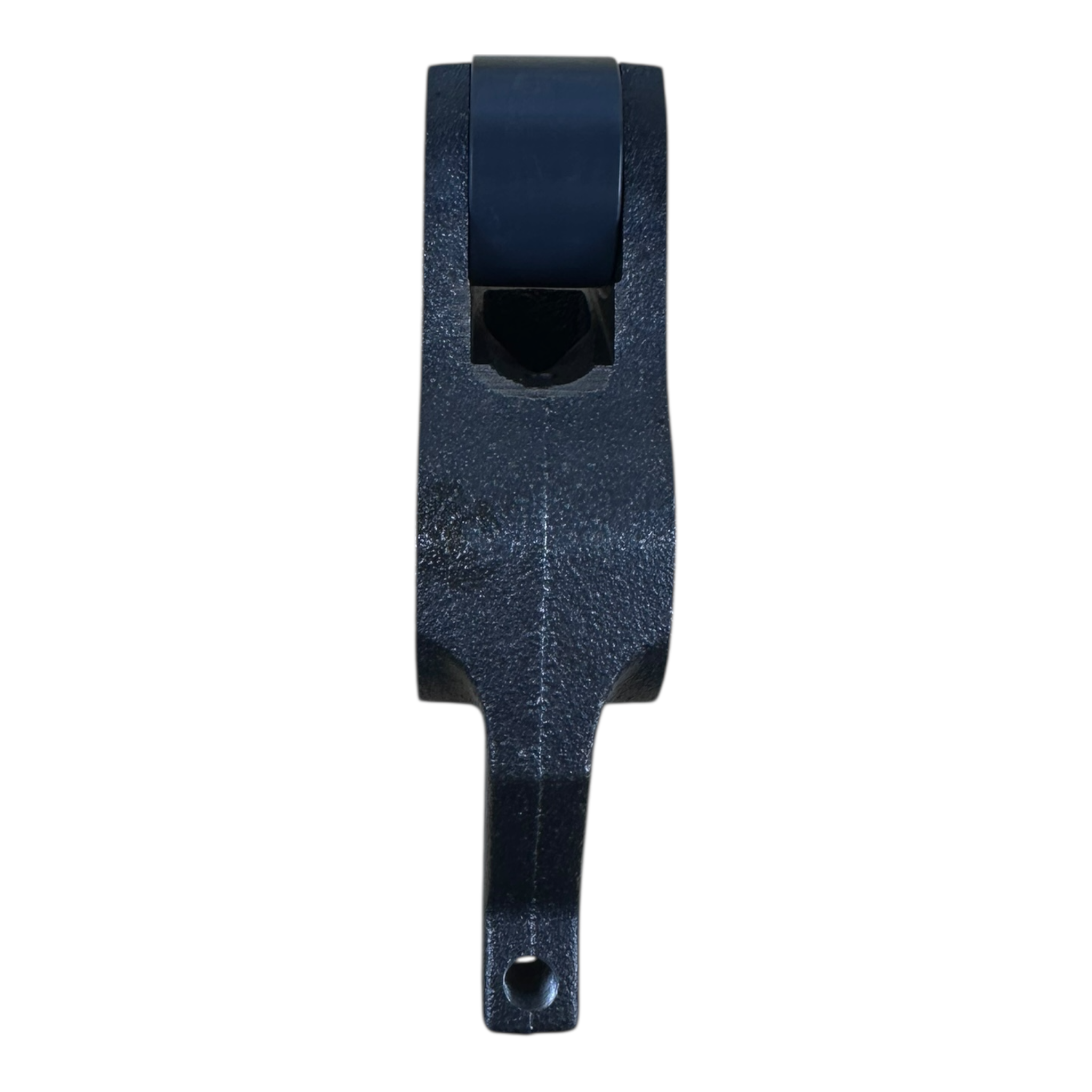

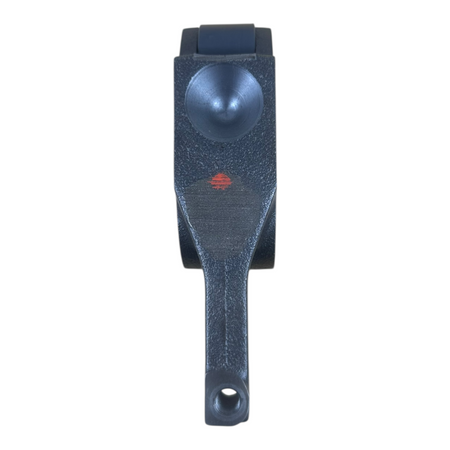

Remanufactured Detroit Diesel injector rocker arm and roller assembly (R23524771) for Series 60 11.1L, 12.7L, and 14.0L engines equipped with 2-piece Jacobs engine brakes. The cup-style rocker is rebuilt to OEM specification with a new pin and roller, restoring proper injector actuation and even Jake Brake engagement.

Signs You Need a New Injector Rocker Arm

• Excessive valve lash or injector height that cannot be adjusted to specification
• Worn or pitted roller causing ticking or tapping noise at the valve cover
• Visible scoring, galling, or flat spots on the rocker arm roller or contact surfaces
• Loose or worn rocker arm pin allowing excessive side-to-side play
• Rough idle, misfires, or white smoke due to inconsistent injector actuation
• Jake Brake not engaging evenly or producing reduced braking effort

Specifications

Cross References

This part replaces or is equivalent to the following Detroit Diesel part numbers:

• Detroit Diesel: 23524771, E23524771, 23535154, 23524768

Note: This is the 2-piece Jake Brake (cup style) injector rocker. The earlier 3-piece Jake Brake style uses part number 8929054 / R23513939 and is not interchangeable. Verify your Jake Brake configuration before ordering.

Applications

This injector rocker arm fits Detroit Diesel Series 60 engines equipped with 2-piece Jacobs engine brakes:

• Detroit Series 60 11.1L (1987-2002)
• Detroit Series 60 12.7L (1987-2007)
• Detroit Series 60 14.0L (2001-2011)

Representative vehicles using these engines:

• Freightliner FLD112, FLD120, Century Class, Columbia, Coronado
• Kenworth T600, T660, T800, W900
• Peterbilt 357, 377, 378, 379, 385, 386, 387
• International 9200i, 9400i, 9900i
• Volvo VNL, VNM, VHD
• Western Star 4900
• Sterling A-Line, L-Line

Verify your engine serial number, DDEC calibration, and Jake Brake model (760, 765, or 770) before ordering to confirm fitment. A core return is required.
