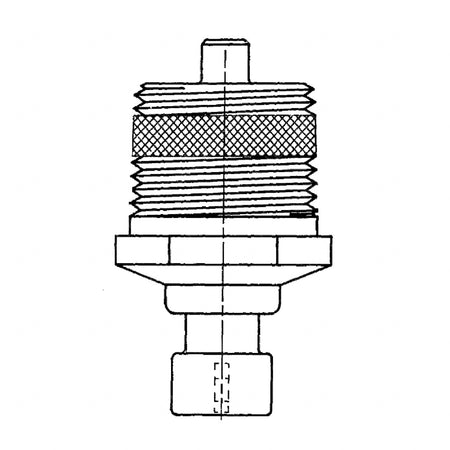

Detroit Diesel 23514708 Coolant Temperature Sensor – Series 60 Series 50

The Detroit Diesel 23514708 is a genuine OEM coolant temperature sensor (CTS) designed for Detroit Series 60 and Series 50 diesel engines. This critical sensor is mounted on the right rear corner of the cylinder head, behind the turbocharger, where it monitors engine coolant temperature and sends an electrical signal to the DDEC (Detroit Diesel Electronic Control) module. The ECM uses this data to optimize fuel injection timing, manage engine protection systems, control the cooling fan, and ensure proper cold start enrichment for reliable performance across all operating conditions.

Signs You Need a New Coolant Temperature Sensor

• Check engine light with coolant temperature fault codes
• Erratic or inaccurate temperature gauge readings
• Engine overheating without actual high coolant temperature
• Cooling fan running constantly or not engaging when needed
• Poor fuel economy due to incorrect fuel mixture
• Hard starting, especially in cold weather
• Engine running rich (black smoke) or lean
• Engine protection mode activating unnecessarily

Specifications

Cross References

This coolant temperature sensor replaces or is equivalent to the following part numbers:

• Detroit Diesel: 23514708, DDC23514708, 23515251
• PAI Industries: 650655
• Interstate-McBee: A-23514708
• Gems/GE: GT7610-477, GEGT7610-477, 10GE477GT350F
• Fortpro: F238810

Engine Applications

This coolant temperature sensor fits the following Detroit Diesel engines:

• Detroit Diesel Series 60 11.1L – DDEC II, III, IV
• Detroit Diesel Series 60 12.7L – DDEC II, III, IV, V
• Detroit Diesel Series 60 14.0L – DDEC IV, V
• Detroit Diesel Series 50 8.5L – DDEC III, IV
• Detroit Diesel 149 Series – Select applications

Vehicle Applications

These engines are commonly found in:

• Freightliner – FLD, Classic, Century, Columbia, Argosy
• Peterbilt – 357, 377, 378, 379, 385, 386, 387
• Kenworth – T600, T800, W900, C500
• International – 9200, 9400, 9900
• Volvo – VN Series, VNL
• Western Star – 4900 Series
• Sterling – Select models with Series 60

How the Coolant Temperature Sensor Works

The coolant temperature sensor is a thermistor (temperature-sensitive resistor) that changes electrical resistance based on coolant temperature. As coolant temperature increases, the sensor's resistance decreases, which changes the voltage signal sent to the DDEC ECM. The ECM uses this information to:

• Adjust Fuel Injection: Provides fuel enrichment during cold starts and optimizes timing as the engine warms up
• Control Cooling Fan: Engages and disengages the engine cooling fan based on temperature thresholds
• Manage Engine Protection: Triggers warnings, derates, or shutdown if coolant temperature exceeds safe limits
• Optimize Performance: Fine-tunes injection timing and duration for current operating temperature

Sensor Location

The coolant temperature sensor on Detroit Series 60 engines is located on the right rear corner of the cylinder head, behind the turbocharger. Access may require removal of some intake or exhaust components depending on the specific vehicle installation.

Installation Notes

• Drain coolant below sensor level before removal
• Disconnect electrical connector before removing sensor
• Clean threads in cylinder head before installing new sensor
• Apply thread sealant approved for coolant system use
• Torque new sensor to specification – do not overtighten
• Refill coolant and bleed air from system
• Clear any fault codes with DDEC diagnostic reader
• Verify proper temperature readings after warm-up cycle

Pigtail Connector

If your wiring harness connector is damaged or corroded, the compatible pigtail connector is part number W094104. This allows repair of the harness without full replacement.

Verify your engine serial number and DDEC version before ordering to confirm fitment. Series 60 engines with different DDEC versions may use different sensor configurations.
