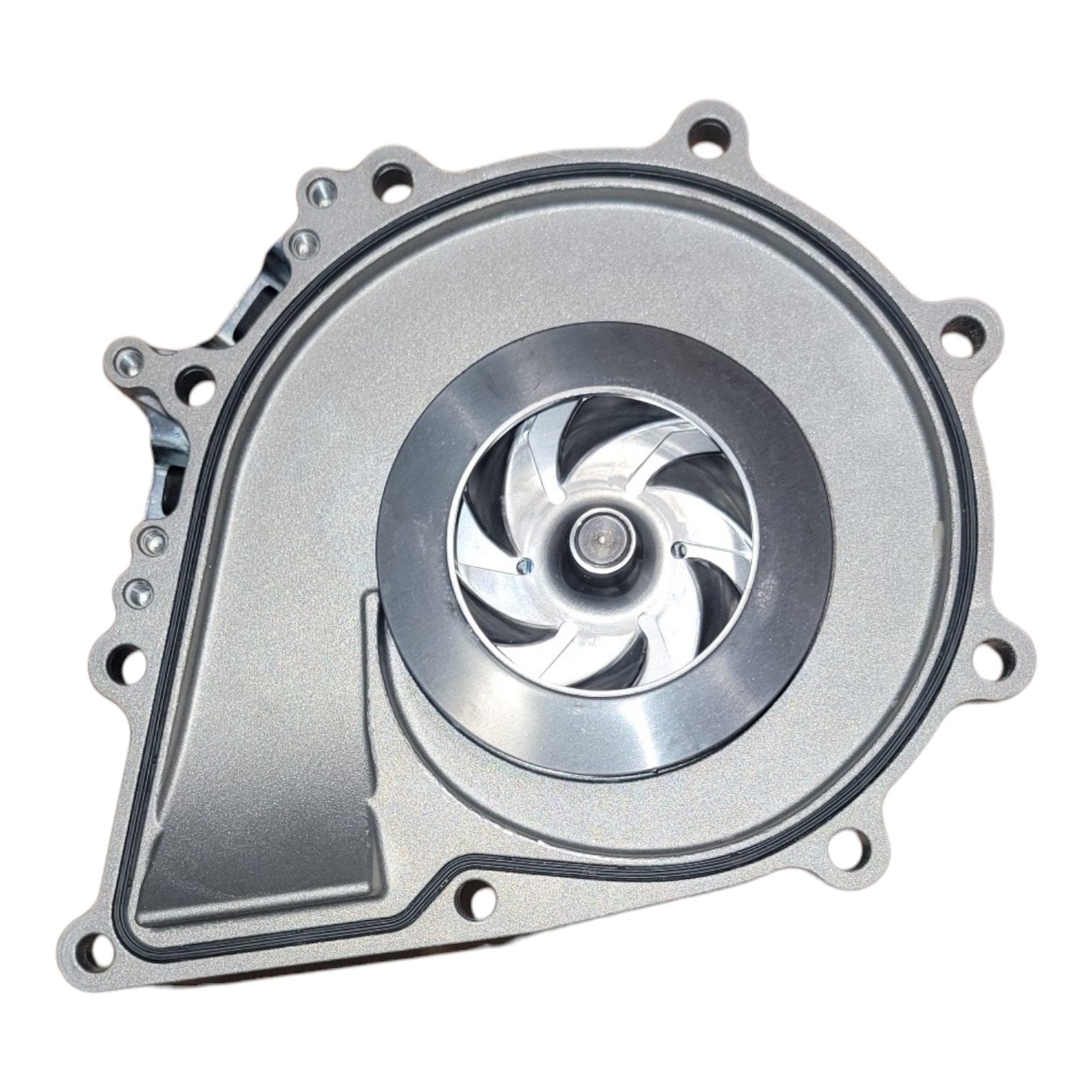

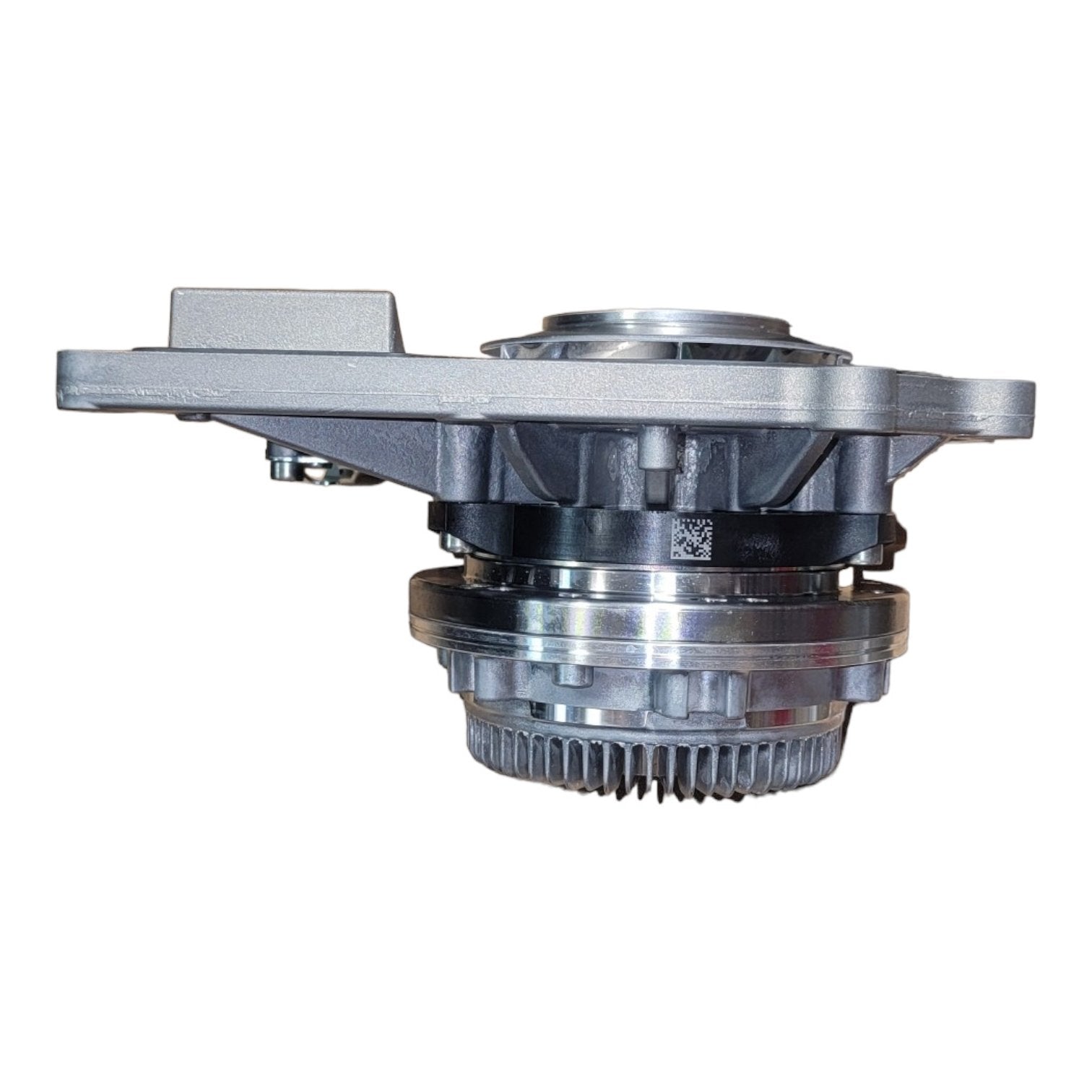

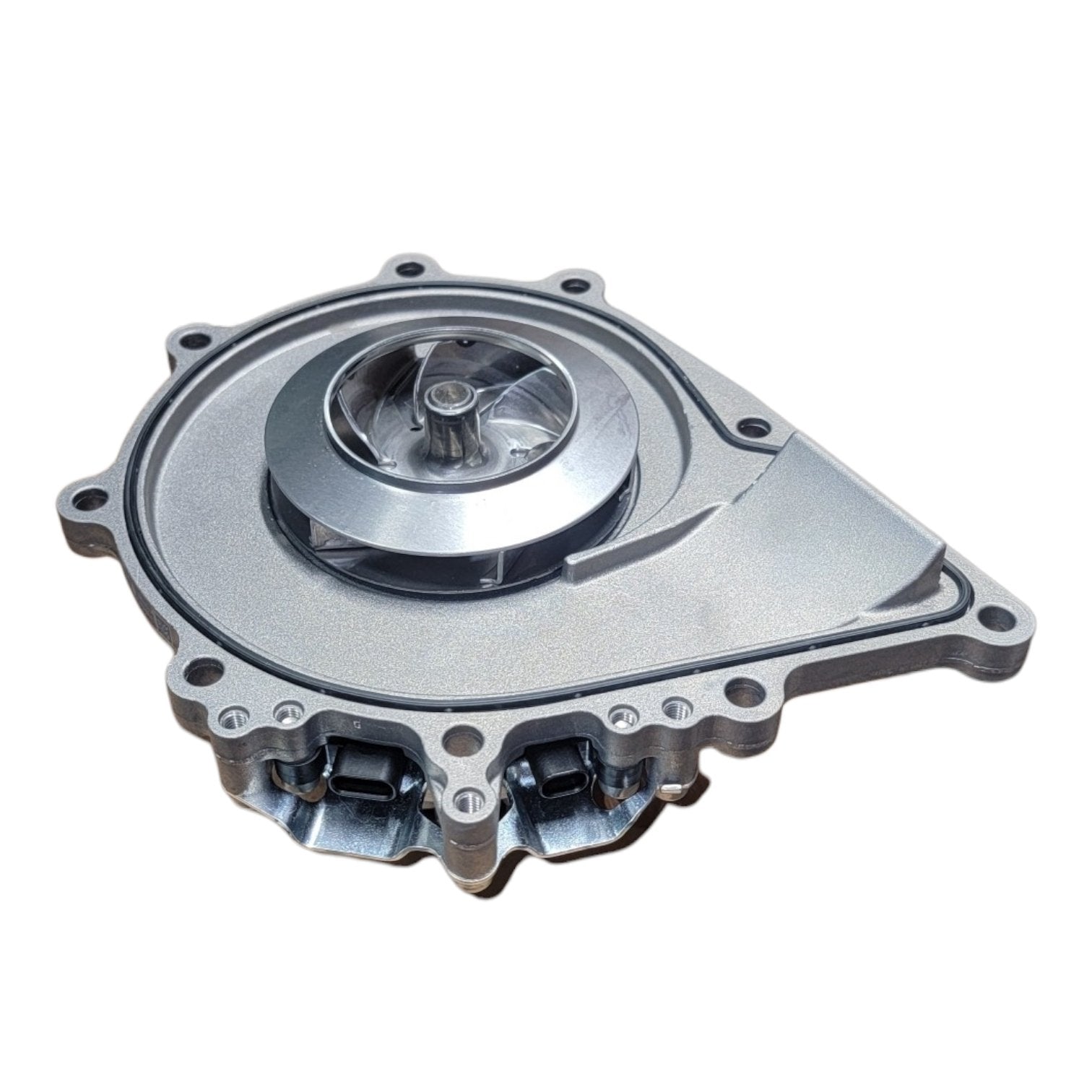

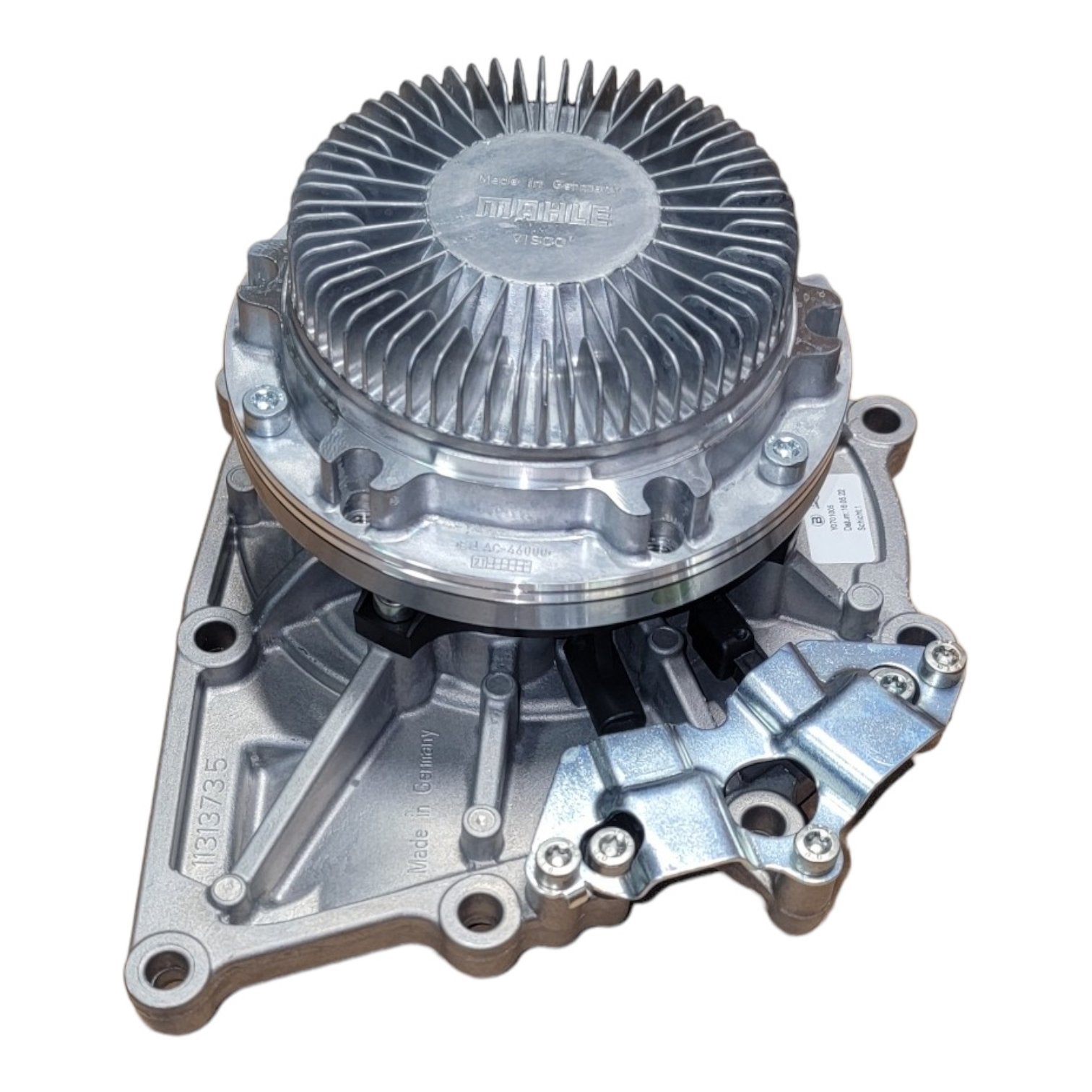

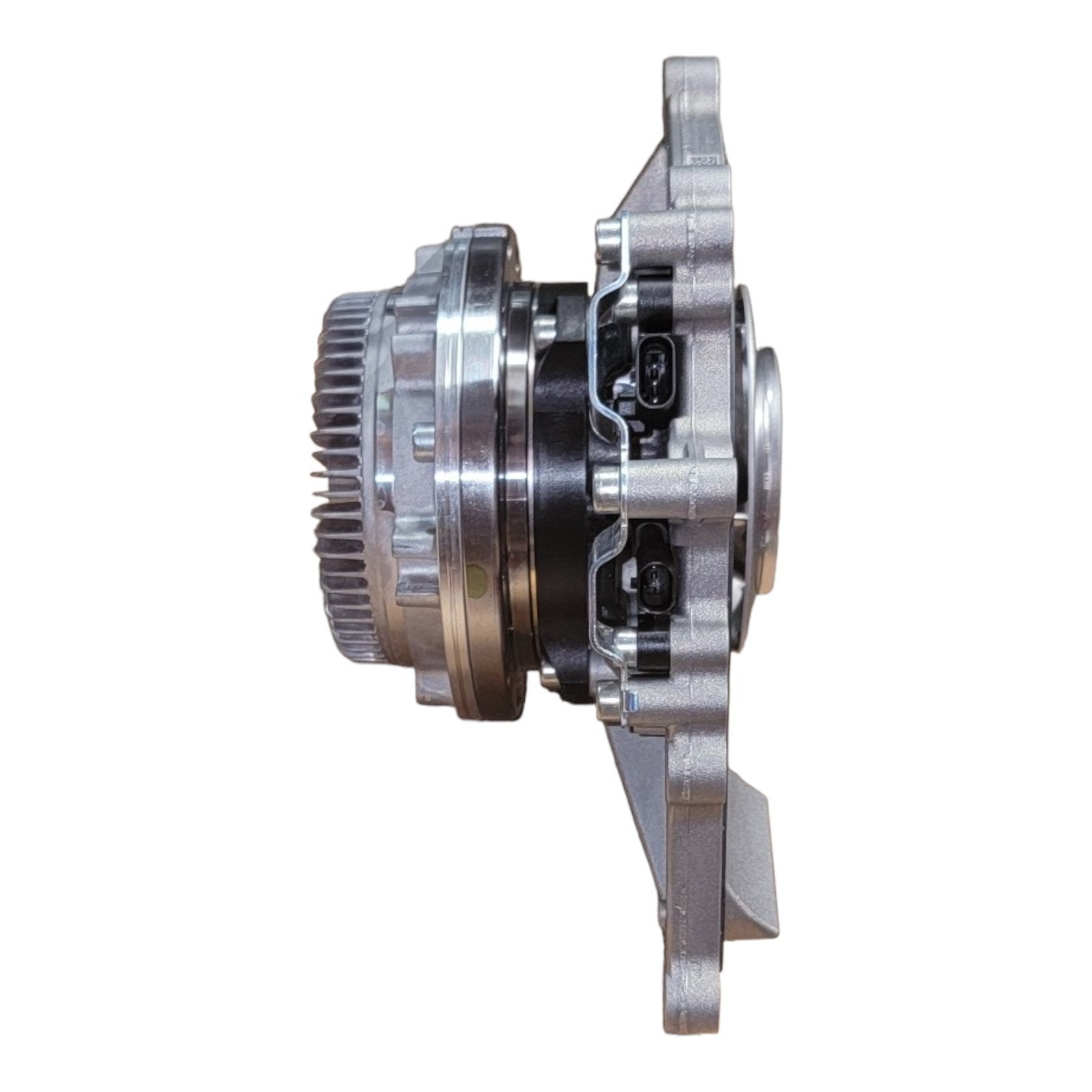

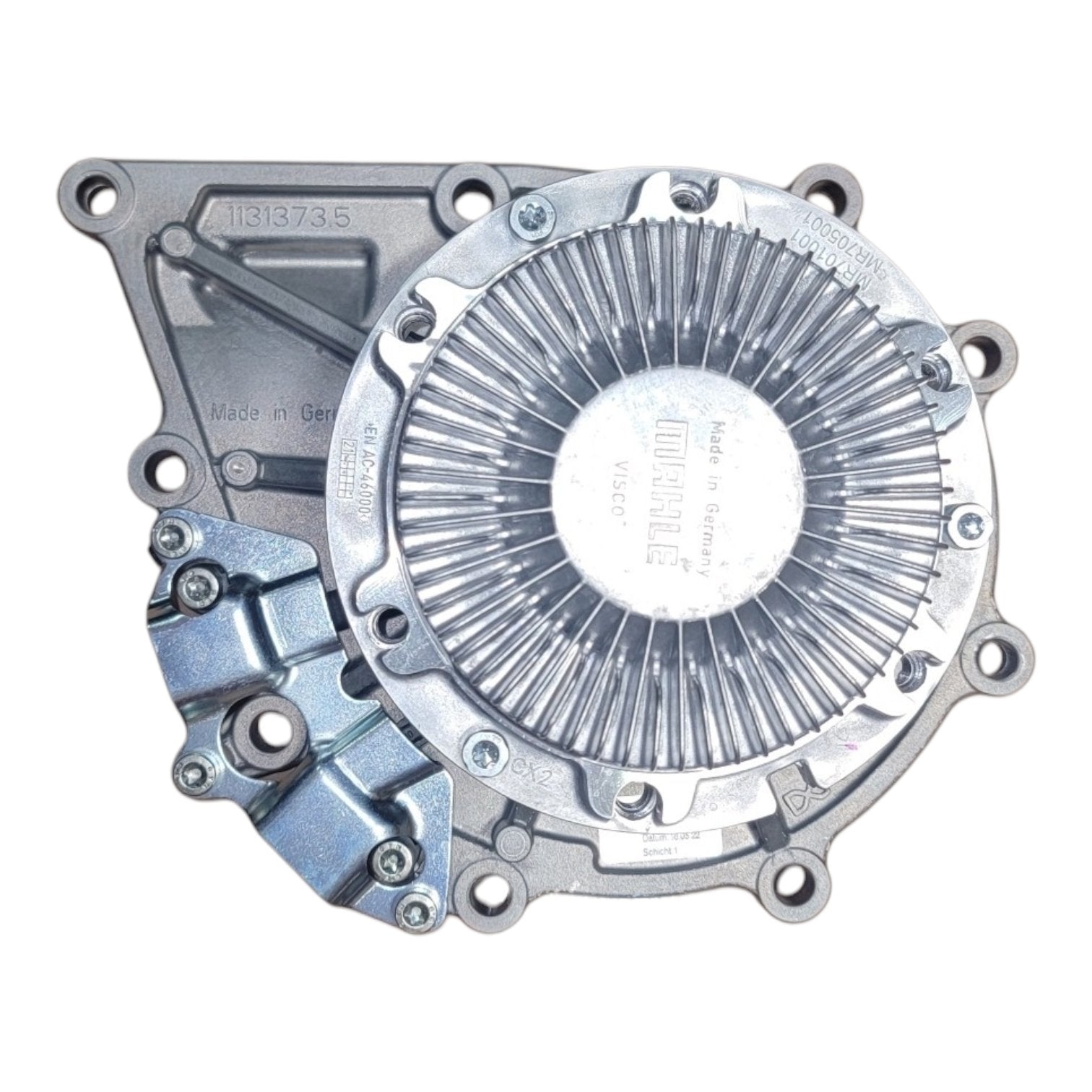

Detroit RA4722002001 Variable Speed Water Pump – DD13 DD15 Remanufactured

Detroit RA4722002001 is a factory-remanufactured variable-speed (electro-viscous) water pump for Detroit Diesel DD13 and DD15 engines, replacing new pump A4722002001 / EA4722002001 and superseded variants A4722001601 and A4722000701. The pump uses a viscous clutch between the pulley and impeller drive that the ECM modulates via the impeller speed sensor, reducing parasitic load when full coolant flow isn't required. Ships with the impeller speed sensor and all gaskets / seals needed for a complete install. Core charge applies.

Signs You Need a New Water Pump

• Coolant leaking from the pump weep hole or housing
• Engine running hotter than normal or hitting overheat derate
• Active fault codes for coolant temperature or water pump speed
• Whining or grinding noise from the pump area
• Coolant residue or staining around the pump
• Variable-speed pump not responding to ECM commands
• Impeller speed sensor faults or J1939 communication errors

Specifications

Cross References

This pump replaces or is equivalent to the following part numbers:

• Detroit Diesel (new): A4722002001, EA4722002001, 4722002001
• Detroit Diesel (reman): RA4722002001, RA4722001601, RA4722000701
• Detroit Diesel (superseded): A4722001601, EA4722001601, A4722000701, EA4722000701
• Detroit Diesel (earlier 4712 series): 4712000901, 4712001101, 4712001601, A4712000901, A4712001101, A4712001601, EA4712000901, EA4712001101, EA4712001601
• Mercedes-Benz: A4702000201, A4712000901, A4722000701, A4722001601
• Alliant Power: AP63509
• Also known as: 167-020-0018, 1670200018, Y0701005, RE2324-04, RE2324-05, 701012AT

Applications

This variable-speed water pump fits Detroit DD13 and DD15 engines:

• Detroit DD13 12.8L (2008–2022)
• Detroit DD15 14.8L (2008–2022)

Representative trucks using these engines:

• Freightliner Cascadia (2008–2022) and Cascadia 126 (2017–2022)
• Western Star 5700XE (2016–2022)
• Western Star 49X (2020–2022)
• Western Star 4900 with DD15 option

Why Choose Detroit Remanufactured

• Rebuilt by Detroit Diesel to OE specification with genuine components
• Complete assembly — impeller speed sensor, gaskets, and seals included
• Backed by Detroit Diesel remanufactured-parts warranty
• Lower cost than a new genuine pump while delivering identical performance

Important: this is a variable-speed (electro-viscous) pump. It is NOT interchangeable with fixed-speed water pumps such as A4722000401 or A4722000101. Verify your engine's pump configuration before ordering. A usable core must be returned to clear the core charge.
