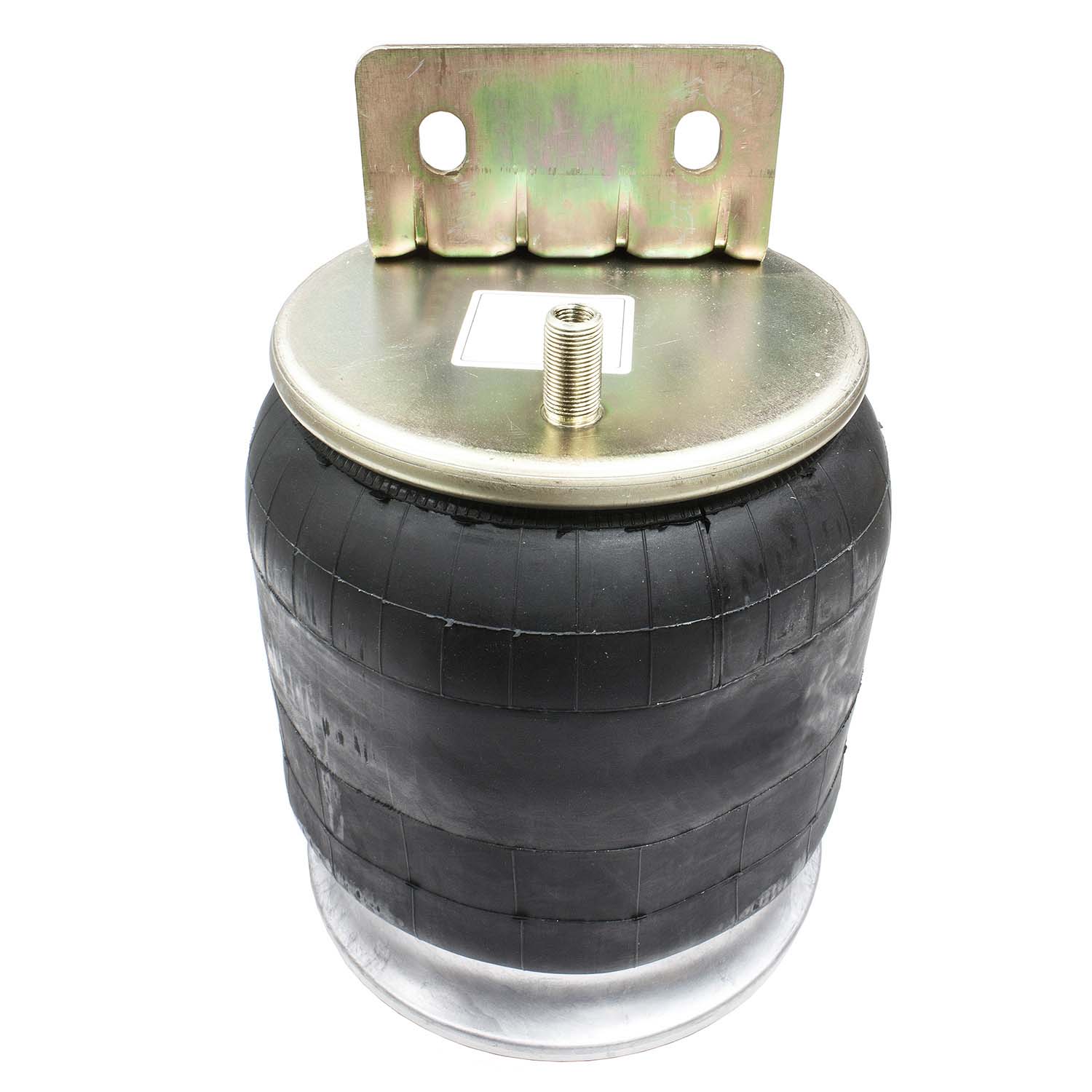

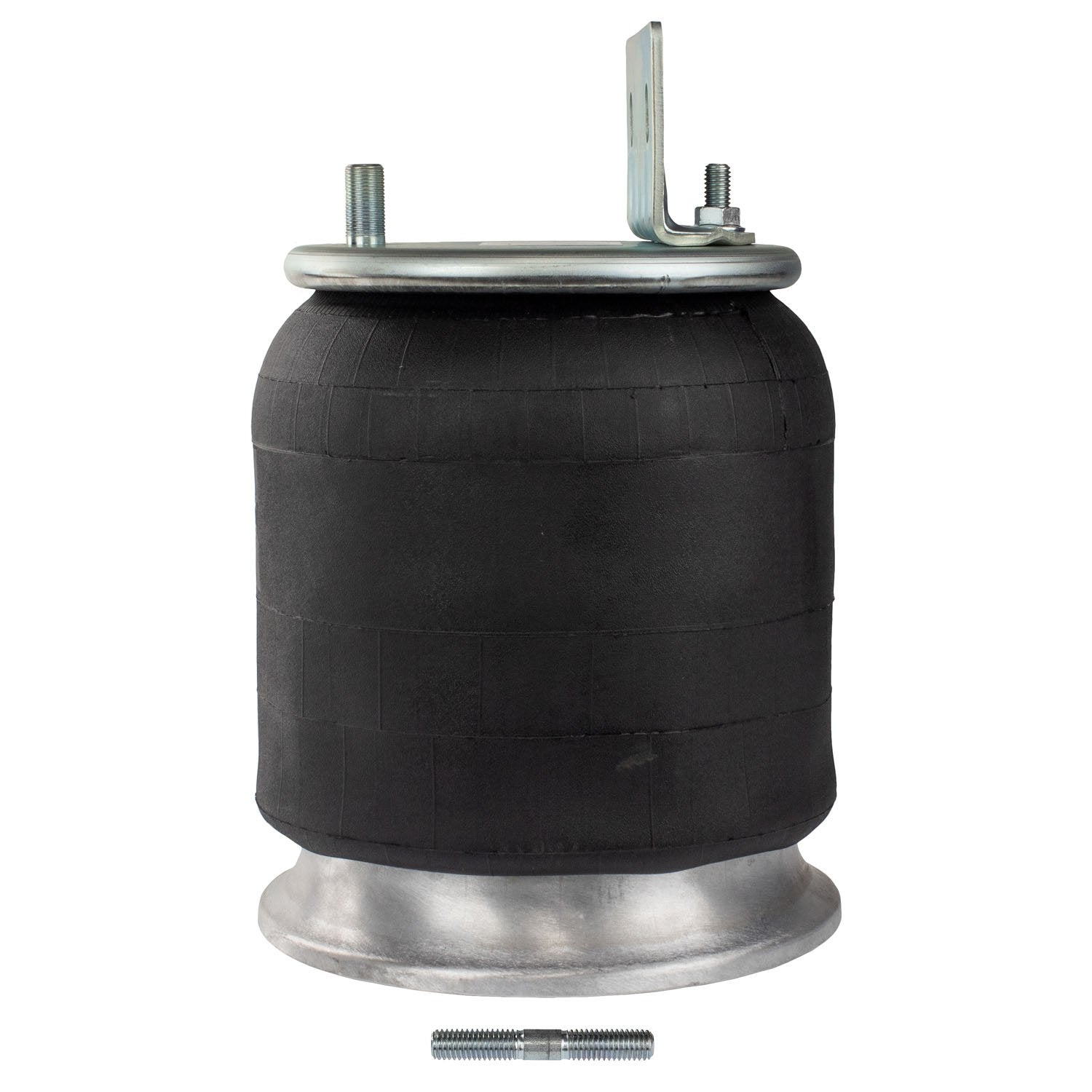

Good Year 1R12-603 Air Spring ⎪Replaces Freightliner 16-13801-000⎪16-16773-000

World American Air Spring WA01-9781C

Model/Style: Rolling Lobe
Bottom Plate Alignment: Parallel
Bottom Plate Center to Center Diameter: 3.03 (Inch)
Bottom Plate Diameter: 10.63 (Inch)
Bottom Plate Hole Quantity: 1
Bottom Plate Type: A
Design Height: 12.5 (Inch)
Load Rating at 100 PSI: 7860 (Pound)
Load Rating at 80 PSI: 6290 (Pound)
Maximum Diameter: 12.6
Maximum Height: 23 (Inch)
Minimum Height: 8.3 (Inch)
Natural Frequency: 70
Spring Type: Rolling Lobe
Top Plate Center to Center Diameter: 6.2 (Inch)
Top Plate Diameter: 9 (Inch)
Top Plate Hole Quantity: 2

Warranty: 3 Years

Cross References:

• Automann  AB1DF23-9781
• Batco: 10-99781
• Continental-ContiTech: 64266
• Continental-ContiTech: 910S16A382
• ContiTech AS9781
• Dayton Parts: 352-9781
• Dayton Parts: 352-9782
• Euclid: E-FS9781
• Firestone: W01-377-9781
• Firestone: W01-358-9782
• Firestone: W01-358-9781
• Firestone: 9782
• Freightliner: 16-13801-000
• Freightliner: A16-17574-001
• Freightliner: A16-17574-002
• Freightliner: 681-320-0017
• Freightliner: 16-16773-000
• Goodyear: 1R12-603
• HDValue HDV9781
• Meritor: FS9781
• Triangle Air Springs: AS-9781
• Triangle Air Springs: 9781
