Freightliner 16-13801-000, 16-16773-000 Air Spring Replacement | WA01-9781C

Details:

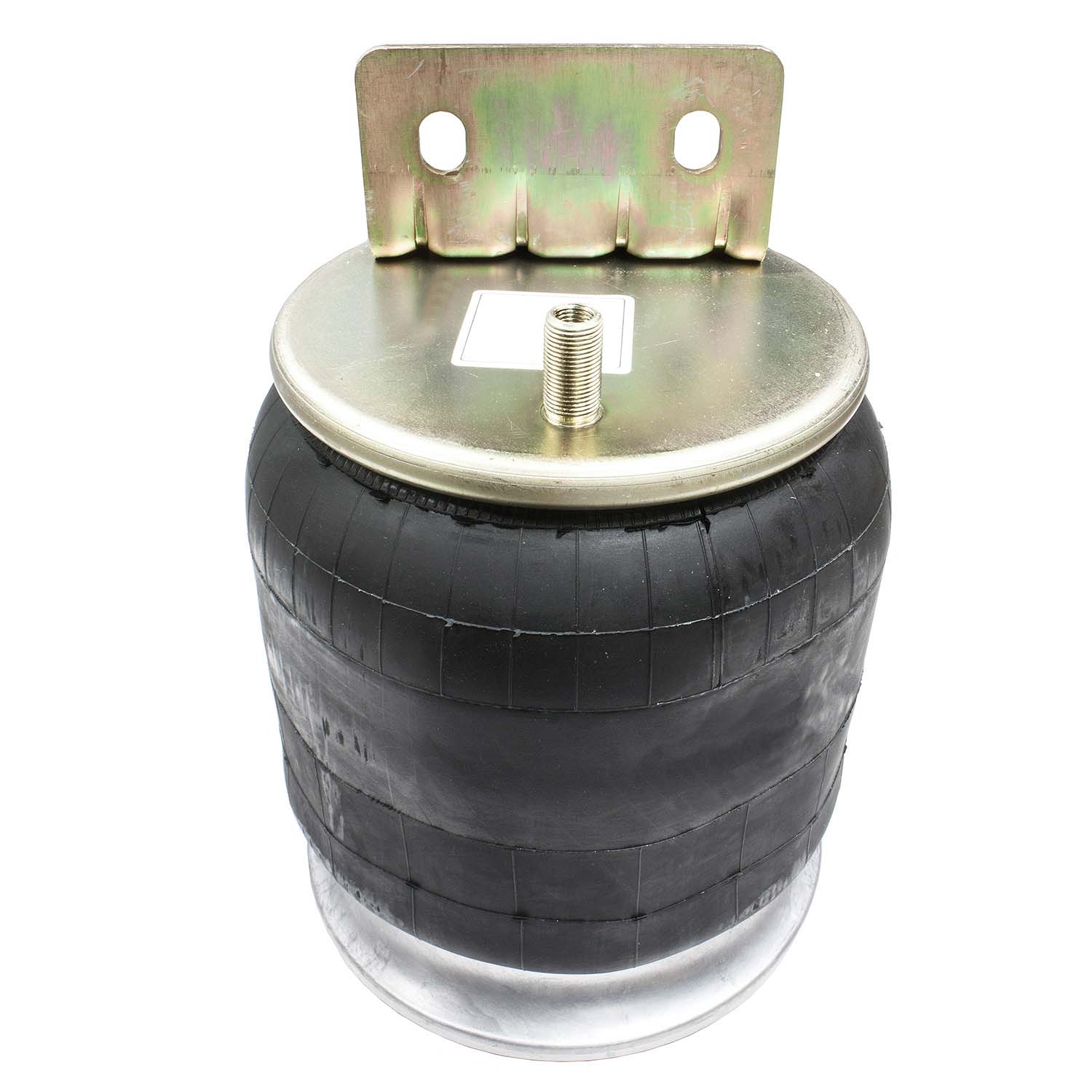

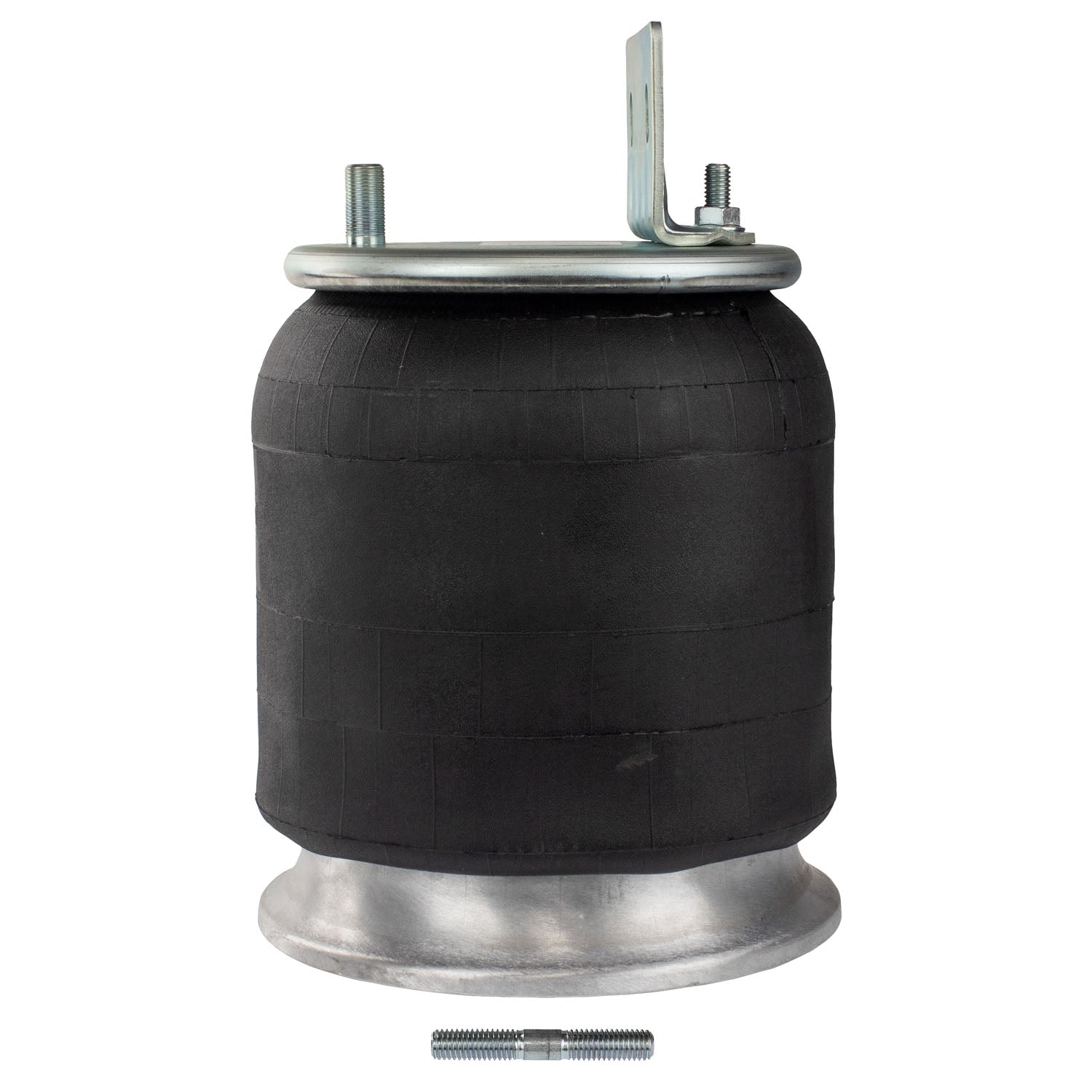

World American WA01-9781C Air Spring Replacement For Freightliner 16-13801-000.

Specifications:

• Model/Style - Rolling Lobe
• Bottom Plate Alignment - Parallel
• Bottom Plate Center to Center Diameter - 3.03 (Inch)
• Bottom Plate Diameter - 10.63 (Inch)
• Bottom Plate Hole Quantity - 1
• Bottom Plate Type - A
• Design Height - 12.5 (Inch)
• Load Rating at 100 PSI - 7860 (Pound)
• Load Rating at 80 PSI - 6290 (Pound)
• Maximum Diameter - 12.6
• Maximum Height - 23 (Inch)
• Minimum Height - 8.3 (Inch)
• Natural Frequency - 70
• Spring Type - Rolling Lobe
• Top Plate Center to Center Diameter - 6.2 (Inch)
• Top Plate Diameter - 9 (Inch)
• Top Plate Hole Quantity - 2
• Warranty - 3 Years

Cross References:

• Automann  AB1DF23-9781
• Batco: 10-99781
• Continental-ContiTech: 64266
• Continental-ContiTech: 910S16A382
• ContiTech AS9781
• Dayton Parts: 352-9781
• Dayton Parts: 352-9782
• Euclid: E-FS9781
• Firestone: W01-377-9781
• Firestone: W01-358-9782
• Firestone: W01-358-9781
• Firestone: 9782
• Freightliner: 16-13801-000
• Freightliner: A16-17574-001
• Freightliner: A16-17574-002
• Freightliner: 681-320-0017
• Freightliner: 16-16773-000
• Goodyear: 1R12-603
• HDValue HDV9781
• Meritor: FS9781
• Triangle Air Springs: AS-9781
• Triangle Air Springs: 9781
