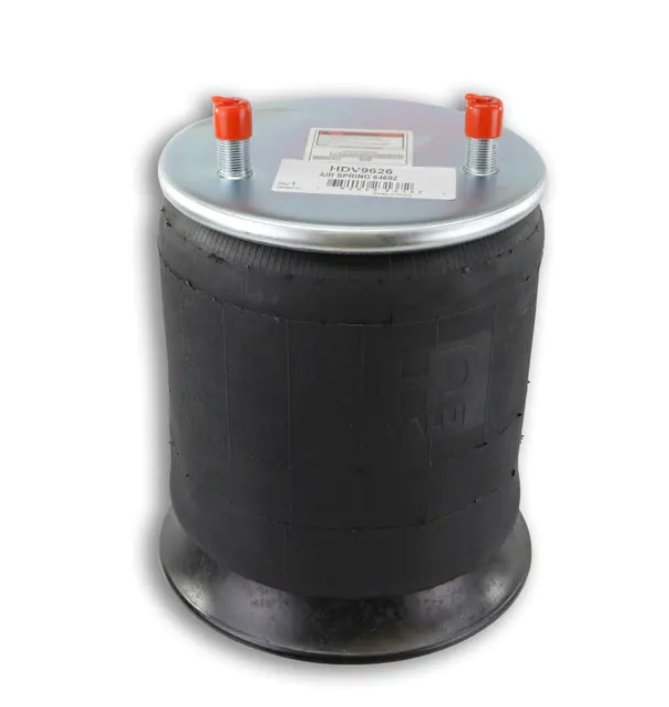

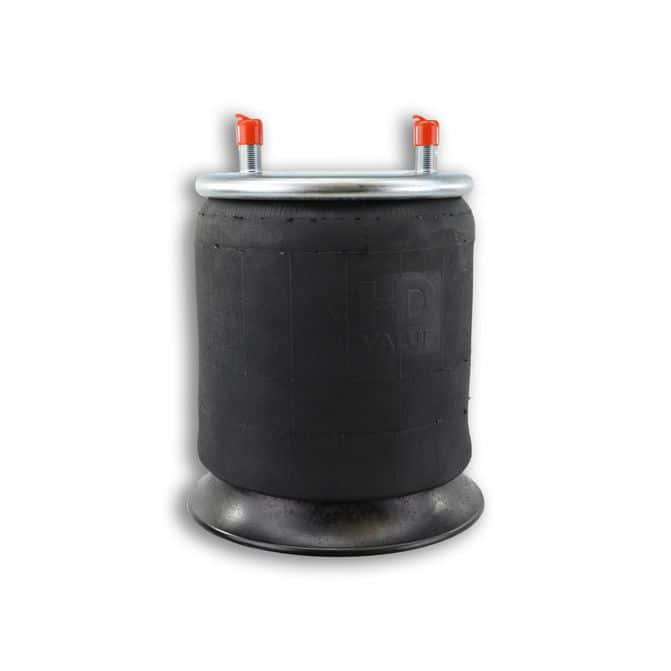

HD Value HDV9626 Air Spring
The HD Value HDV9626 is a rolling lobe air spring designed for heavy-duty truck and trailer applications, particularly for Hendrickson INTRAAX AAL 23K and AANL 23K suspensions with ride heights between 12 to 19 inches. Engineered to meet or exceed OEM specifications, this air spring enhances ride comfort and vehicle stability.

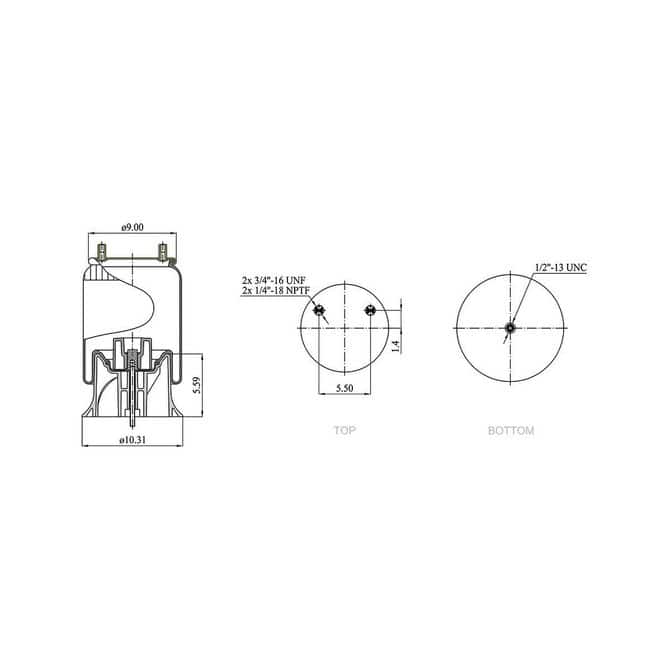

HDV9626 Specifications
| Type | Rolling Lobe |
| Design Height | 13 inches |
| Load Rating at 100 PSI | 6,400 lbs |
| Load Rating at 80 PSI | 5,100 lbs |
| Maximum Diameter | 11.7 inches |
| Maximum Height | 22.1 inches |
| Minimum Height | 7.3 inches |

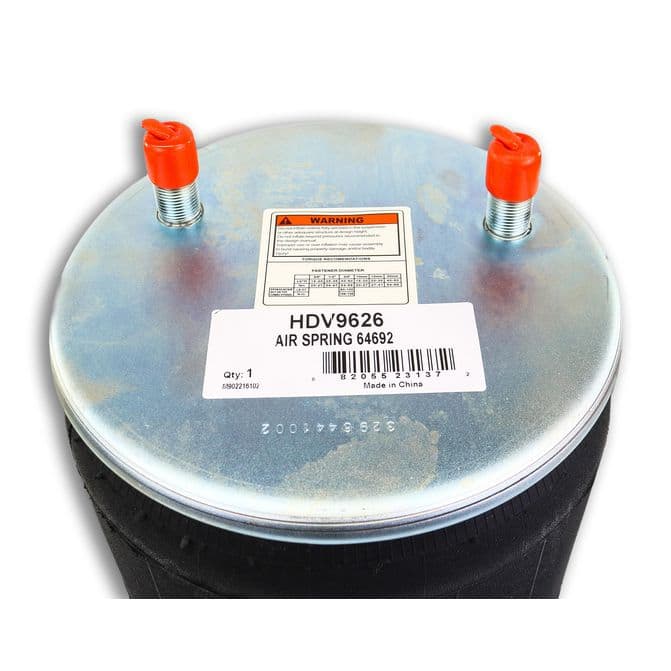

| Top Plate Diameter | 9 inches |
| Top Plate Hole Quantity | 2 |
| Bottom Plate Diameter | 10.25 inches |
| Bottom Plate Hole Quantity | 1 |
| Weight | 15.83 lbs |
Cross References:
| Manufacturer | Part Number |
|---|---|
| Hendrickson | S-23720 |
| Firestone | W01-358-9626 |
| Goodyear | 1R11-292 |
| ContiTech | 9 9-16 P 568 |
| Triangle | AS-8568 |
| Automann | 1DK20J-9626 |
Always verify product fitment before installation.
Sell Pack Quantity: 1
