PAI 180194 Fuel Shutoff Solenoid 12V – Cummins 6CT 6CTA 8.3L

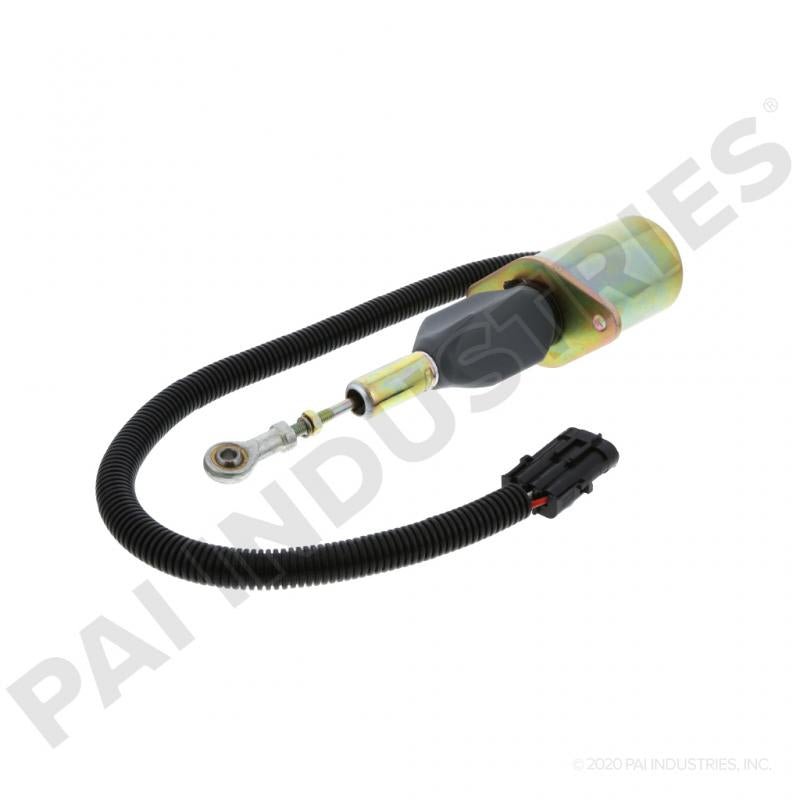

The PAI 180194 is a 12V fuel shutoff solenoid for Cummins 6CT and 6CTA 8.3L mechanical-injection engines, replacing Cummins 3932545 and Synchro-Start SA-4639-12. It mounts to the Bosch P7100/PT pump on the C-series with the standard 3-inch (center-to-center) bolt spacing and 3-pin round connector — when energized the plunger retracts to allow fuel; when de-energized the plunger drops to shut down the engine.

Signs You Need a New Fuel Shutoff Solenoid

• Engine cranks but will not start (no fuel delivery)
• Engine starts then dies the moment the key returns from start to run
• Audible click from the solenoid with no plunger movement
• Engine will not shut off when the key is turned to OFF (plunger stuck up)
• Burned solenoid connector or open coil on continuity test

Specifications

Cross References

This part replaces or is equivalent to the following part numbers:

• Cummins: 3932545
• Synchro-Start / Woodward: SA-4639-12

Applications

Fits Cummins C-series 8.3L mechanical-injection engines:

• Cummins 6CT 8.3L (turbocharged)
• Cummins 6CTA 8.3L (turbocharged + aftercooled)

Representative platforms with these engines:

• Medium-duty trucks: dump, mixer, utility, vocational chassis
• Buses: school, transit, shuttle
• Class A / Class C motorhome chassis
• Fire and emergency apparatus
• Construction equipment: excavators, loaders, cranes, skidders
• Agricultural and industrial 6CT/6CTA packages
• Marine and genset C-series engines
• Military M900-series FMTV trucks (6CTA)

Measure mounting bolt spacing on your existing solenoid before ordering — this is the 3 in (3-inch) variant. Some C-series applications use a 2-1/2 in spacing solenoid that is not interchangeable. Verify system voltage; this is a 12V unit.
