PAI 641292 Oil Pan Assembly | Replaces Detroit Diesel A4720102313

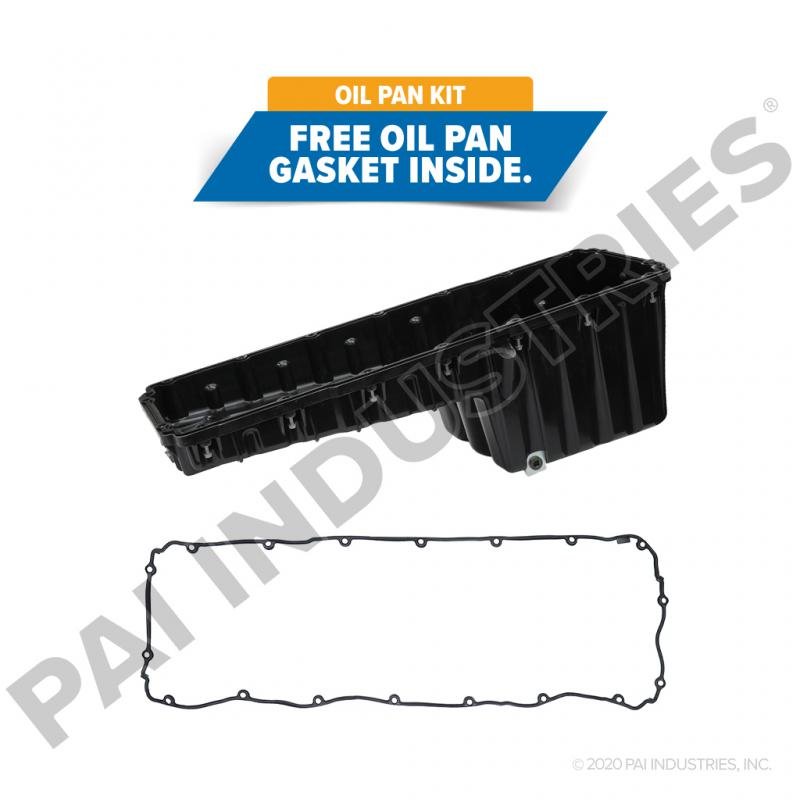

The PAI 641292 is an aftermarket front-sump oil pan kit for Detroit Diesel DD15 engines, supplied with all gaskets, hardware, fittings, and drain plug components needed for installation. It replaces Detroit Diesel A4720102313 with a 47-quart capacity, plastic pan body, wet-sump configuration, and 18 mounting points. PAI sources kit components to OE specifications (642293, A4720102813 pan body) for direct service replacement.

Specifications

Kit Includes

• Oil pan body — PAI 641293 (OEM Detroit Diesel A4720102813)
• Oil pan fitting — PAI 640146 (OEM Detroit Diesel A4729970071)
• Washer — PAI 842033
• Pan gasket — PAI 631359 (OEM Detroit Diesel A4720140322)
• Screw assembly — PAI 640045 (OEM Detroit Diesel A4720140583) (qty 18)
• Slotted nut — PAI 640110 (OEM Detroit Diesel A4729900155) (qty 2)
• O-ring — PAI GGA-2909 (OEM Detroit Diesel 56AX596) (qty 2)
• Threaded insert — PAI 640111 (OEM Detroit Diesel A4729900551) (qty 2)
• Drain plug kit — PAI 640132 (OEM Detroit Diesel A4729900217) (qty 2; each kit includes drain plug 640129/A0019908917 and copper washer 640081/N007603027100)
• Oil pan installation guide — PAI 1283

Cross References

This oil pan kit replaces or is equivalent to the following part numbers:

• Detroit Diesel: A4720102313

Applications

This oil pan kit fits the following engines:

• Detroit Diesel DD15 14.8L (2007+)

Representative vehicles using this engine:

• Freightliner Cascadia, Coronado, Columbia (2007+)
• Western Star 4900, 5700XE (2008+)

Verify your engine serial number and front-sump configuration before ordering to confirm fitment.
