World American WA801266 AD-IS Air Dryer Assembly – 12V Kenworth Peterbilt

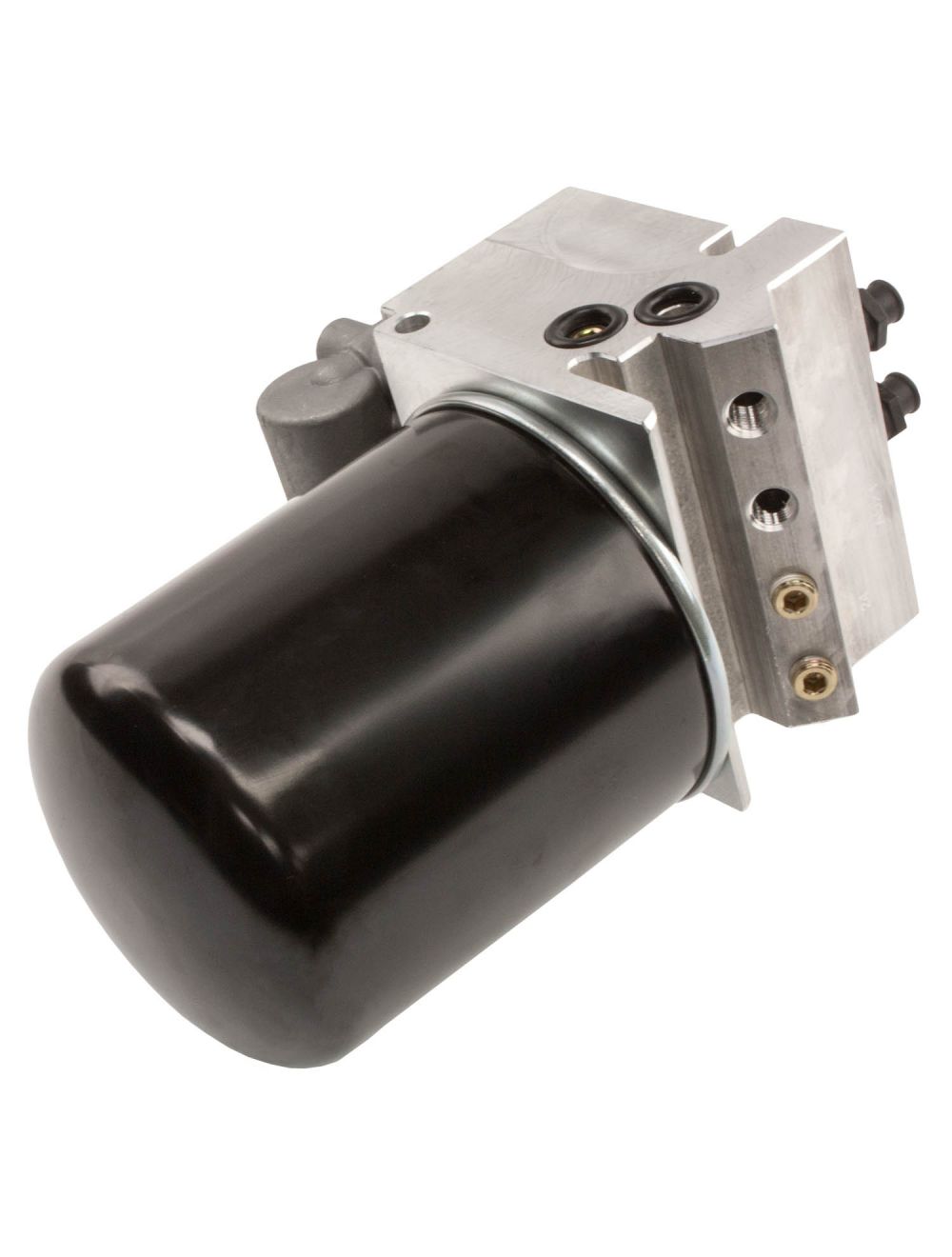

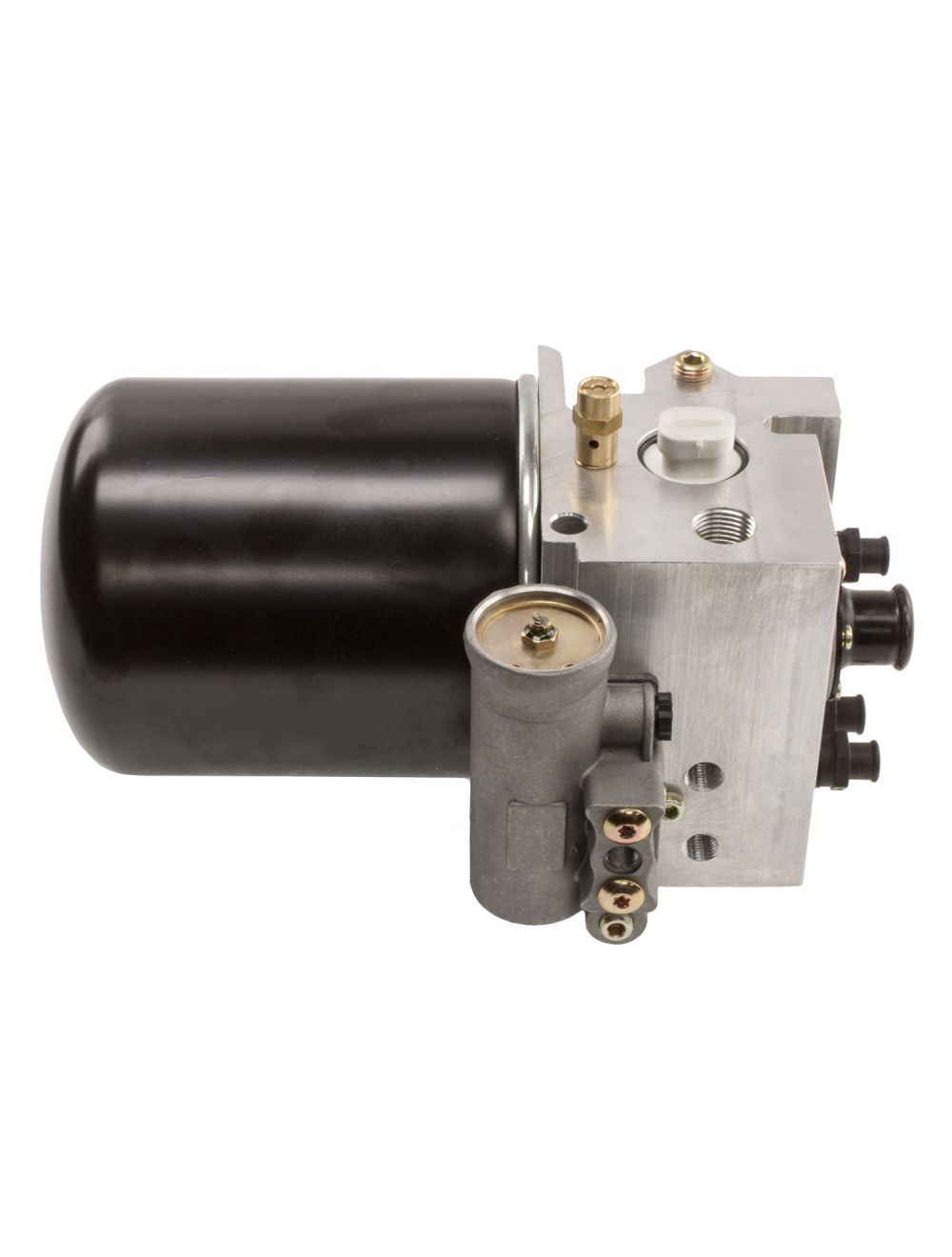

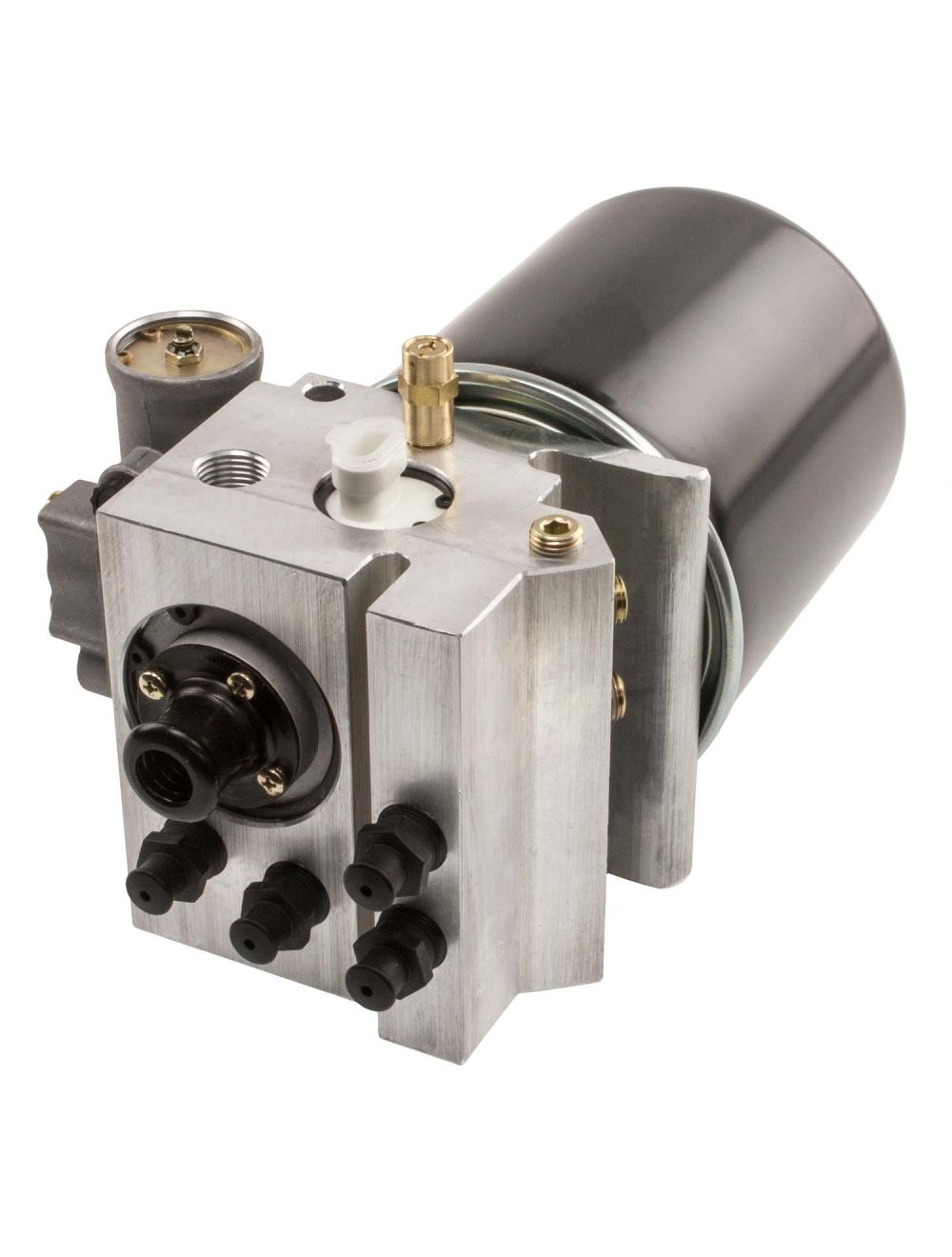

The World American WA801266 is a premium aftermarket AD-IS (Integrated Solution) air dryer assembly designed for Kenworth, Peterbilt, and other Class 8 trucks equipped with Bendix air brake systems. This complete 12-volt assembly includes the desiccant cartridge, integrated governor, pressure protection valves, purge valve, and built-in heater—all in one unit. The AD-IS design eliminates the need for daily manual air tank draining by automatically removing moisture and contaminants from compressed air before it enters the brake system. World American products are engineered to meet or exceed OEM specifications for reliable performance in demanding commercial applications.

Signs You Need a New Air Dryer Assembly

• Excessive water or oil draining from air tanks
• Air dryer constantly cycling on and off (rapid purging)
• System fails to build or maintain proper air pressure
• Purge valve leaking air continuously
• Frozen air lines or brake valves in cold weather
• Safety valve releasing air prematurely
• Low air pressure warning light illuminated
• Brake system components failing prematurely due to contamination

Specifications

Cross References

This part replaces or is equivalent to the following part numbers:

• Bendix: 801266, 801266BXW, 5010694, 5010695, 5010696, 5010696X, 5010696BXR, 5015533, 5015534
• Kenworth / Peterbilt (PACCAR): K049199, K049199BXW
• Haldex: 5010696, 5010696X
• Meritor: R9555004050X, R9555010696, R9555004050
• Automann: 170.801266
• S&S / Newstar: S-26293

Applications

This AD-IS air dryer assembly fits trucks equipped with Bendix AD-IS air brake charging systems, including:

• Kenworth T680, T880, W900, T800, T600, C500 and other models (2007–present)
• Peterbilt 579, 567, 389, 386, 387, 388, 384, 365, 367 and other models (2007–present)
• International LT, LoneStar, ProStar, 9900i and other models with Bendix AD-IS systems

Note: Purge reservoir tank is not included and must be reused from existing installation or purchased separately. Cartridge replacement interval: 1–3 years or 100,000–300,000 miles depending on application severity.

Verify your existing air dryer configuration and port layout before ordering. The 801266 configuration features 3 accessory ports commonly used in PACCAR (Kenworth/Peterbilt) applications.
