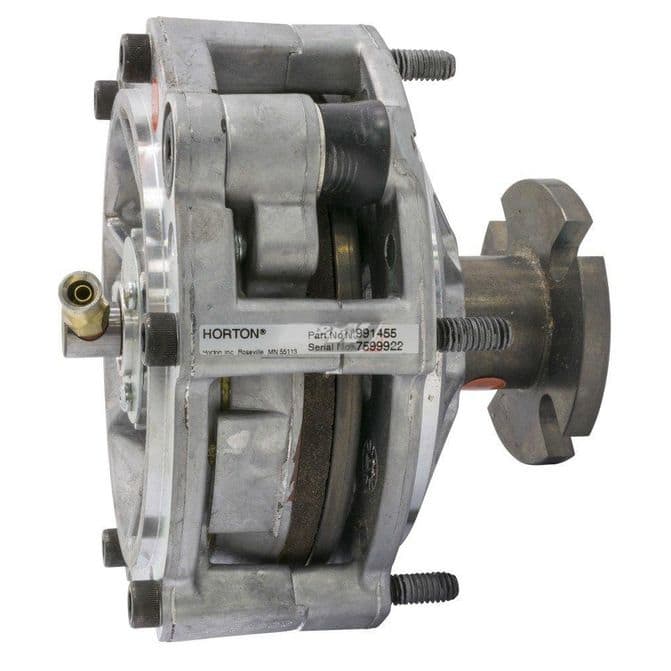

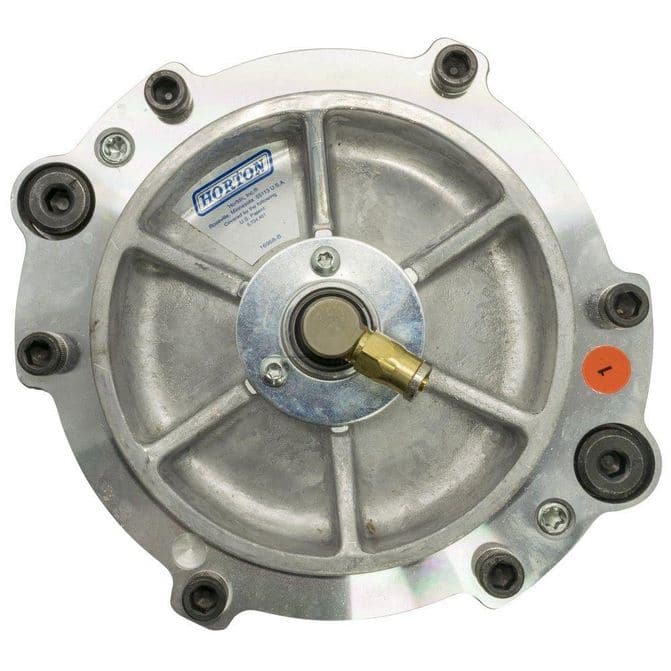

The Horton 991455 is a genuine OEM HT650 pneumatic fan clutch designed for Freightliner M2 trucks equipped with Cummins ISB engines. This on/off fan clutch engages only when cooling is needed and completely disengages when not required, reducing parasitic horsepower loss and maximizing fuel efficiency. The engine-controlled design provides fast response time and delivers maximum torque for high airflow fans without slippage.
Signs You Need a New Fan Clutch
- Engine overheating or running hotter than normal
- Fan runs constantly at full speed regardless of engine temperature
- Fan does not engage when engine reaches operating temperature
- Excessive noise or vibration from the fan drive area
- Visible air leaks or damaged seals on the clutch assembly
- Sluggish fan engagement or delayed response to temperature changes

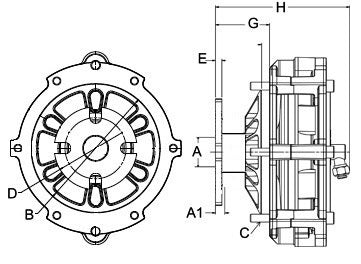

Specifications
| Manufacturer | Horton |
|---|---|
| Part Number | 991455 |
| OEM Number | 981455 |
| Clutch Type | HT650 Pneumatic On/Off |
| Condition | New |
| Overall Length | 5.50 in |
| Pilot Diameter | 5.00 in |
| Fan Pilot Diameter | 2.56 in |
| Back Pulley Diameter | 10.22 in |
| Belt Configuration | 4V |
| Bolt Circle | 3.50 in |
| Fan Blade Stud | 1.00 in (.375-16 thread) |
| Weight | 9.20 lbs |
Cross References
This part replaces or is equivalent to the following part numbers:
- Horton: 981455, 99A8189, 99A9649
- Alliance: ABP991455
- Freightliner: FLT99649, ABPN2099649, 3912-991455
- ZF Sachs: ZBH991455, ZBH99A8189, ZBH79A9649
- Other: 3818951, 700394AT
Applications
This fan clutch fits the following vehicles:
- Freightliner M2 106 (2008–2019) with Cummins ISB 6.7L engine
- Freightliner M2 112V (2008–2019) with Cummins ISB 6.7L engine
Repair Kit Options
If rebuilding rather than replacing, Horton offers the following repair components for this fan clutch:
- Major Repair Kit: 994317
- Piston/Friction Liner Assembly: 994318
- Drive Sleeve Assembly: 15454 (includes bearing)
- Rotary Air Union: 994008
- Mounting Bracket: 18923
Upgrade Option: The Horton DM Advantage On/Off 99A9649 may be used as an upgrade replacement for this HT650. A solenoid valve change to 993379 is required for this upgrade.
Verify your engine serial number and current fan clutch configuration before ordering to confirm fitment.
