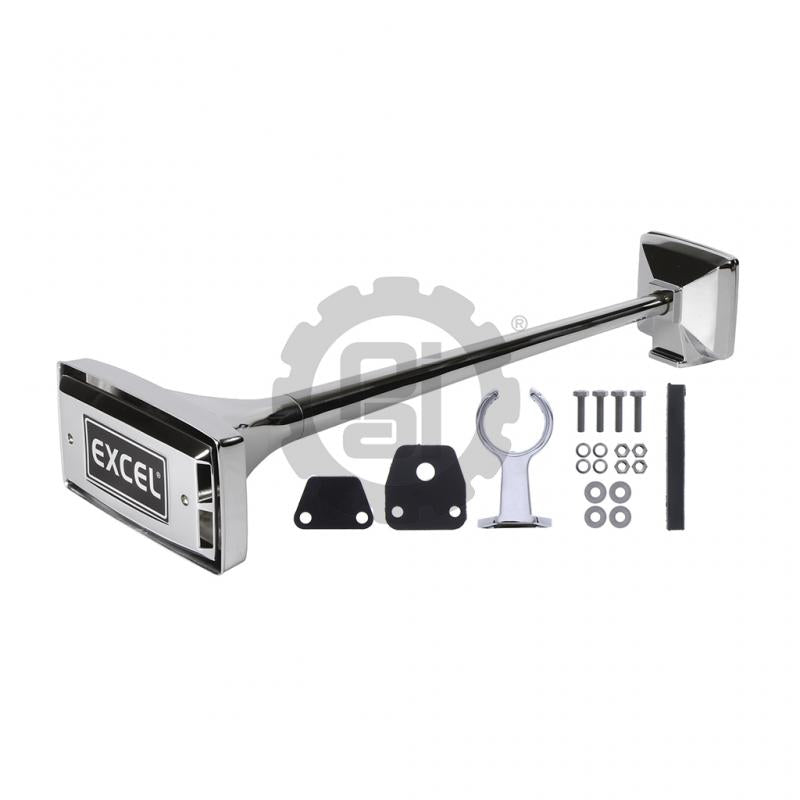

PAI EM44930 Rectangular Bell Air Horn – Mack Trucks (26", Chrome, Hadley Style)

The PAI EM44930 is a 26" chrome-plated rectangular bell air horn for Mack heavy-duty tractors, replacing Mack 38MR4162 and Hadley H00978. Direct OE-style fit to Mack Pinnacle, Granite, Anthem, CH, Vision, and RD platforms running the Hadley rectangular-bell air horn; 7/16"-24 straight female air port mates to standard truck horn solenoid plumbing. Sold under PAI’s Excel brand.

Signs You Need a New Air Horn

• Weak, fading, or no sound when activated
• Visible cracks, dents, or pitting on the bell
• Heavy corrosion or chrome flaking around the throat
• Audible air leak from the horn body or supply fitting
• Sputtering or inconsistent tone under steady supply pressure

Specifications

Cross References

This air horn replaces or is equivalent to the following part numbers:

• Mack: 38MR4162, 38MR4228M2, 38MR4228M4, 25080441, 25123119, 25128061
• Hadley: H00978
• Truck-Lite: T1-R215

Related PAI Parts

• PAI FAH-4493: Same horn under PAI’s Genuine PAI brand with a 2-year warranty
• PAI EM54180 (Mack 3994-H00981): Air horn kit including this horn
• PAI EM54840 (Mack 3394-H00980): Air horn kit including this horn

Applications

This rectangular-bell air horn fits Mack tractors equipped with Hadley-style rectangular horn systems:

• Mack Pinnacle: CXU612, CXU613
• Mack Granite: GU713, GU812, GU813
• Mack Anthem: AN64T
• Mack CH series: CH612, CH613
• Mack Vision: CXN612, CXN613
• Mack RD series: RD688S, RD690S

Also compatible with select Kenworth, Peterbilt, and Freightliner trucks specifying the Hadley H00978 rectangular bell horn.

Installation Notes

Requires 100–120 PSI air supply from the chassis air system. Install using the existing mounting bracket and hardware; connect the air line to the 7/16"-24 female port. For a dual-horn setup, pair with a matching low-tone horn (e.g., a 29" companion) and an air valve / solenoid. Inspect lines and joints for leaks after installation.

Verify your truck’s horn mounting configuration and air connection size before ordering — round-bell and Grover-style systems use a different horn body and are not interchangeable.
