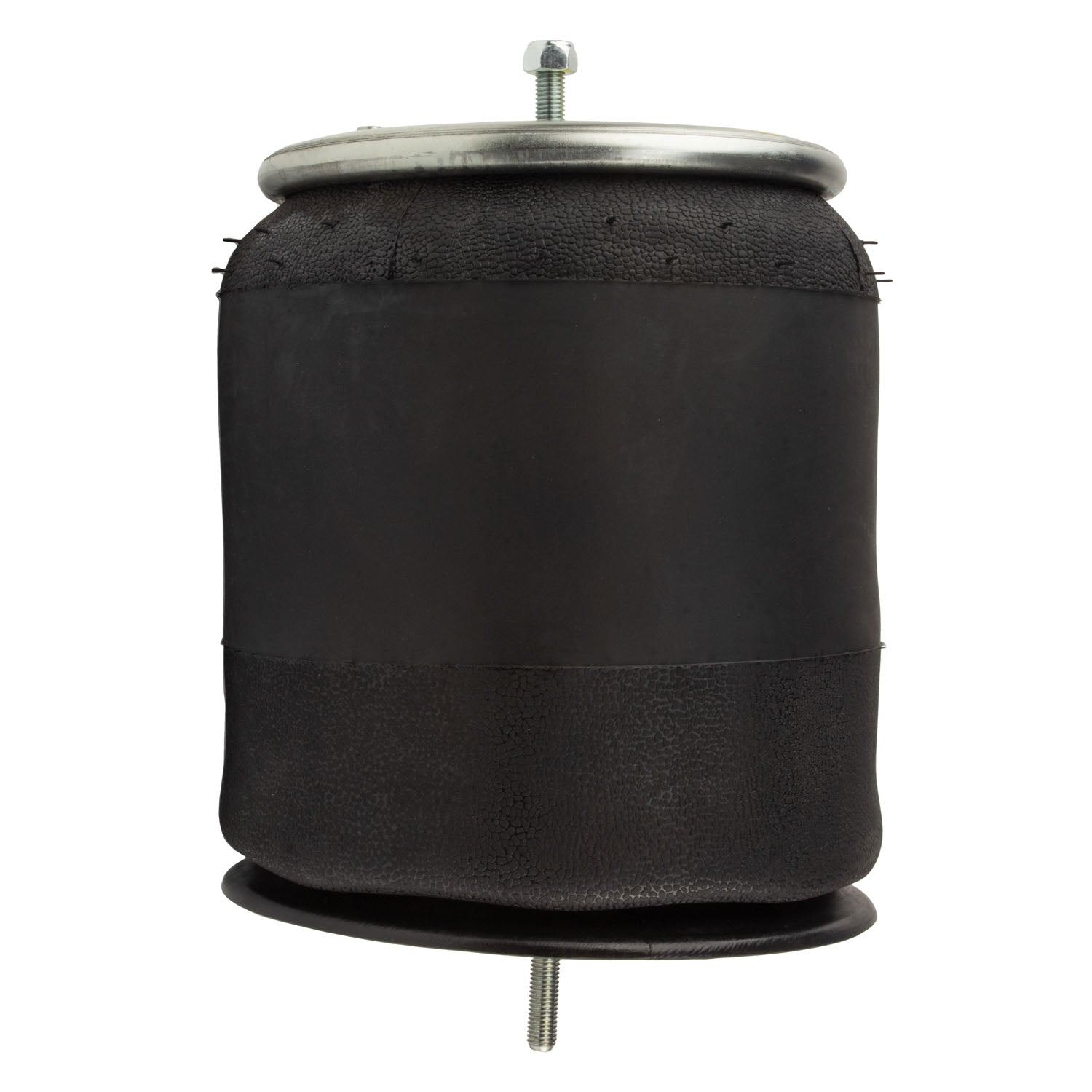

World American WA01-8468C Rolling Lobe Air Spring – Volvo VNL VN Drive Axle Replacement

WA01-8468C is a rolling lobe drive-axle air spring (Firestone bellows 1T15XMR-7) replacing Volvo 21132005 / 21132004, Mack 21244322, Firestone W01-M58-8468, and Goodyear 1R12-654. Built for Volvo VN and VNL drive-axle suspensions, with a 23" extended height, 6.9" compressed height, and a plastic-base bottom plate.

Signs You Need a New Air Spring

• Visible cracks, dry rot, or chafing in the rubber bellows
• Truck sitting lower than normal or leaning to one side at rest
• Audible air leaks from the bag or top-plate area
• Excessive bouncing, harsh ride, or compressor cycling more often than normal

Specifications

Cross References

This air spring replaces or is equivalent to the following part numbers:

• Volvo: 21132005, 21132004, 21669088
• Mack: 21244322
• Firestone: W01-M58-8468, 8468
• Goodyear: 1R12-654, 1R12-1049
• ContiTech: 75561
• Meritor: AS8468
• Automann: 566.ER8468, AB1DF23H-P1206, AB1DK23K-C395
• Triangle: AS-81206

Applications

This air spring fits the following Volvo and Mack drive-axle suspensions:

• Volvo VNL 670, 760, and 860 sleeper tractors (2003-2019)
• Volvo VN and VNM series day-cab and regional tractors using the matching drive-axle bag
• Select Mack tractors sharing the Volvo-architecture drive-axle suspension

Verify the bellows number and plate pattern against your existing air spring before ordering to confirm fitment.
