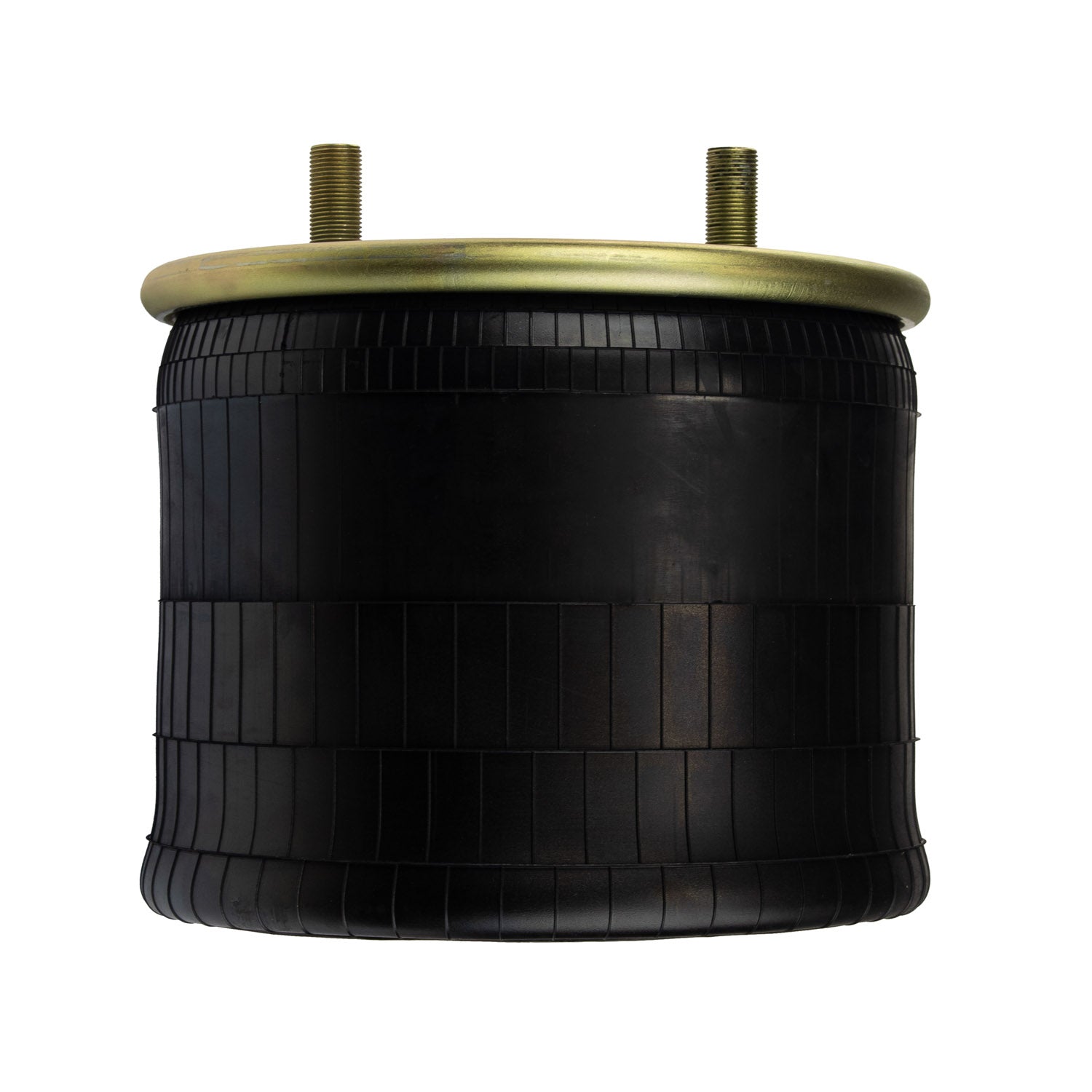

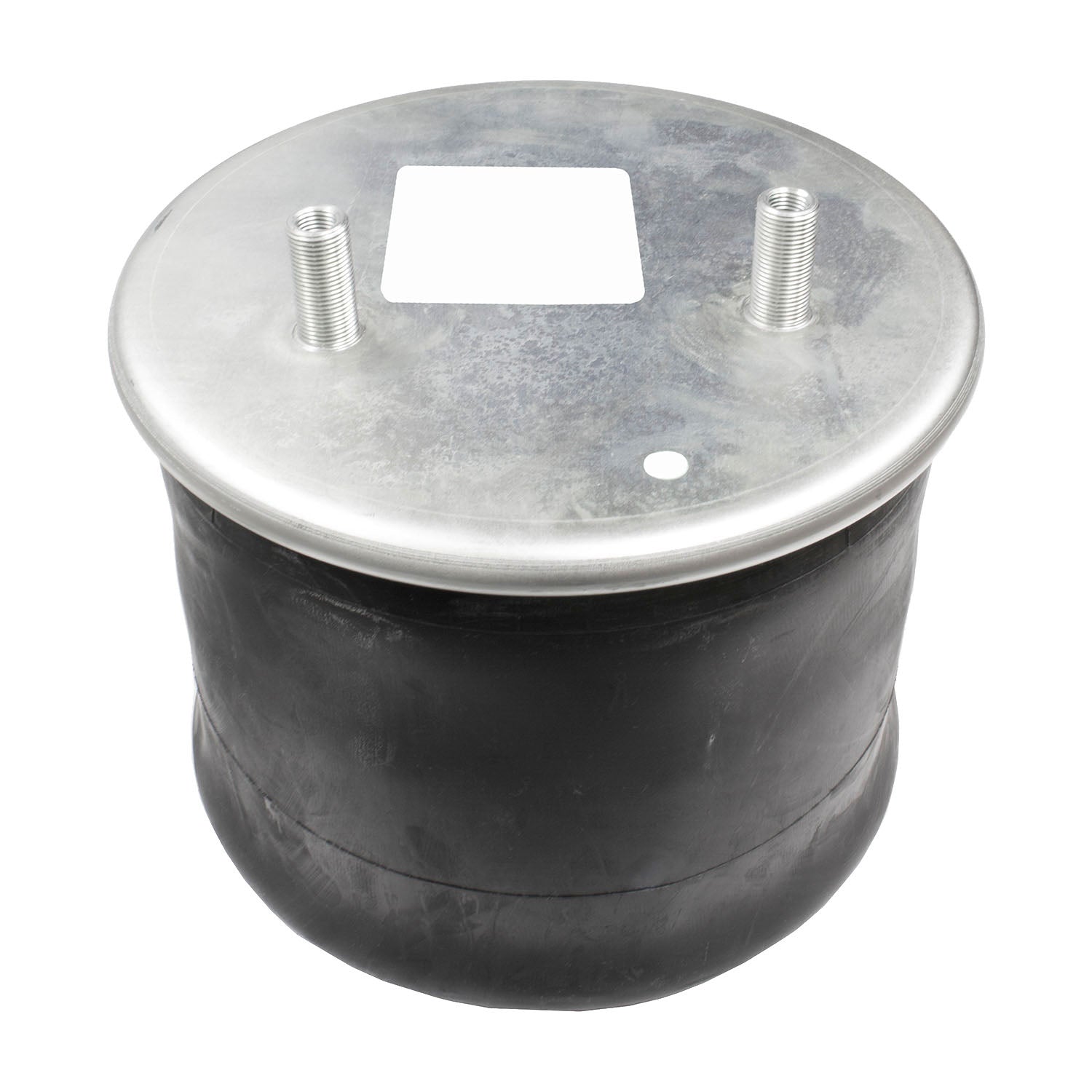

World American WA01-8091C Air Spring
Model/Style: Rolling Lobe
Bottom Plate Alignment: Parallel
Bottom Plate Center to Center Diameter: 2.25 (Inch)
Bottom Plate Diameter: 10.16 (Inch)
Bottom Plate Hole Quantity: 1
Bottom Plate Type: A
Design Height: 10 (Inch)
Load Rating at 100 PSI: 10250 (Pound)
Load Rating at 80 PSI: 8200 (Pound)
Maximum Diameter: 14.1 (Inch)
Maximum Height: 19.3 (Inch)
Minimum Height: 5.1 (Inch)
Natural Frequency: 74
Spring Type: Rolling Lobe
Top Plate Center to Center Diameter: 5.5 (Inch)
Top Plate Diameter: 11.31 (Inch)
Top Plate Hole Quantity: 2
Cross Reference:
- Automann:
AB1DK28E-8091
- Batco: 10-98091
- Continental-ContiTech: 64421
- Continental-ContiTech: 11105A16P523
- ContiTech: AS8091
- Dayton Parts: 352-8091
- Euclid: E-FS8091
- Firestone: 8091
- Firestone: W01-358-8091
- Goodyear: 1R14-171
- HDValue: HDV8091
- Hendrickson: S-20901
- Hendrickson: S21784
- Hendrickson: S20901
- Hendrickson: HKA250
- Hendrickson: S-21784
- Hendrickson: S-20127
- Meritor: FS8091
- Meritor: RFS8091
- Paccar Parts: AS80910
- Ridewell: 1000156
- Triangle Air Springs: AS-8523
- Triangle Air Springs: 8523
