Hendrickson Intraax 23K Pound AA230 Air Spring Replaces Hendrickson S-21800 ^Sale

Details:

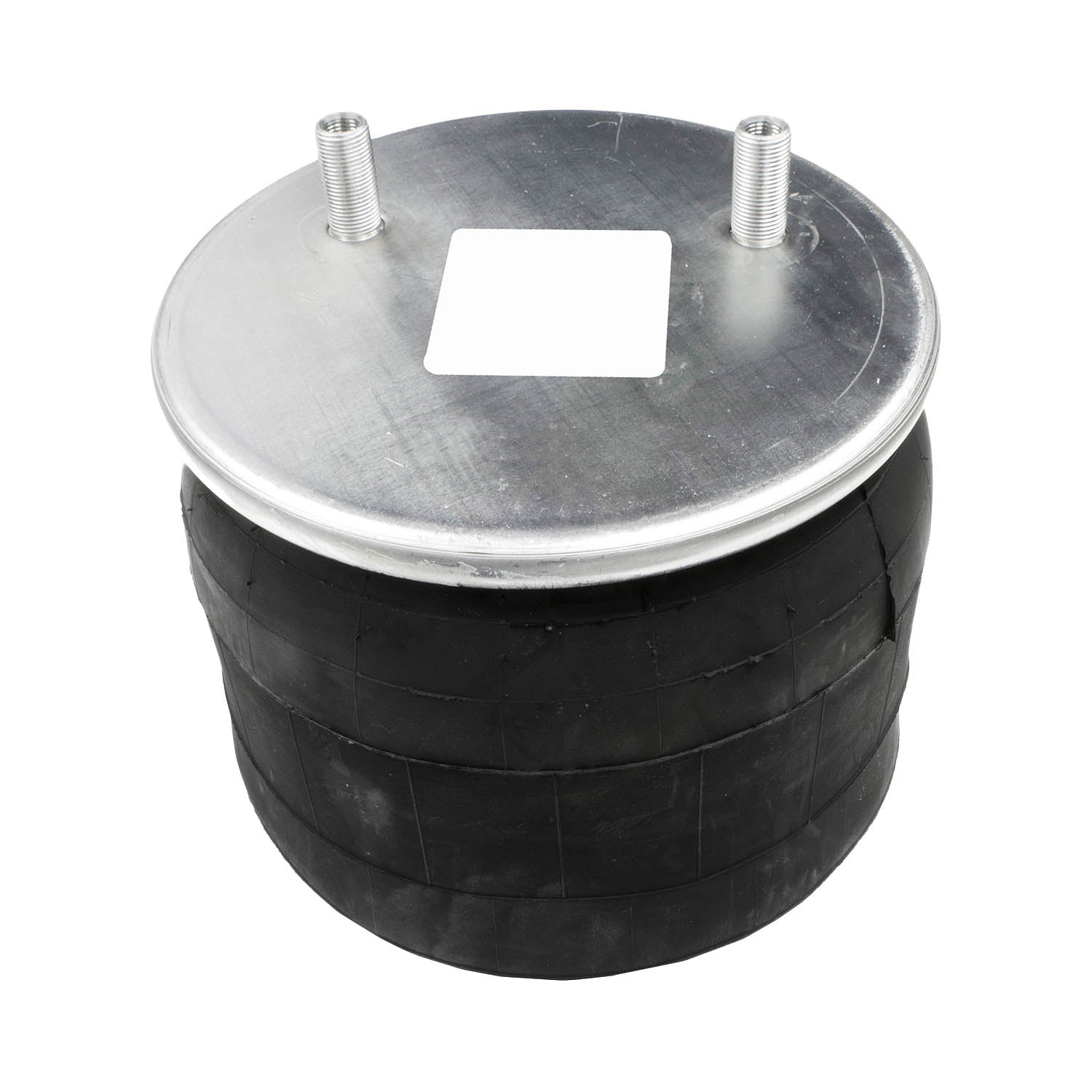

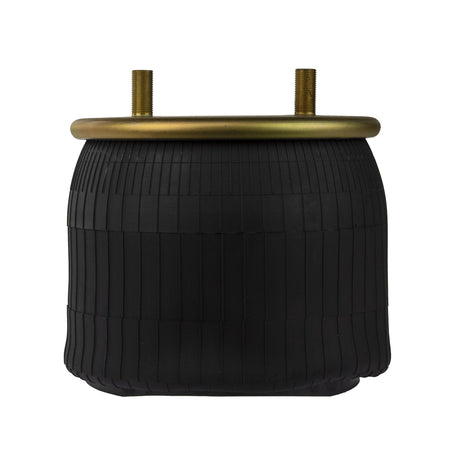

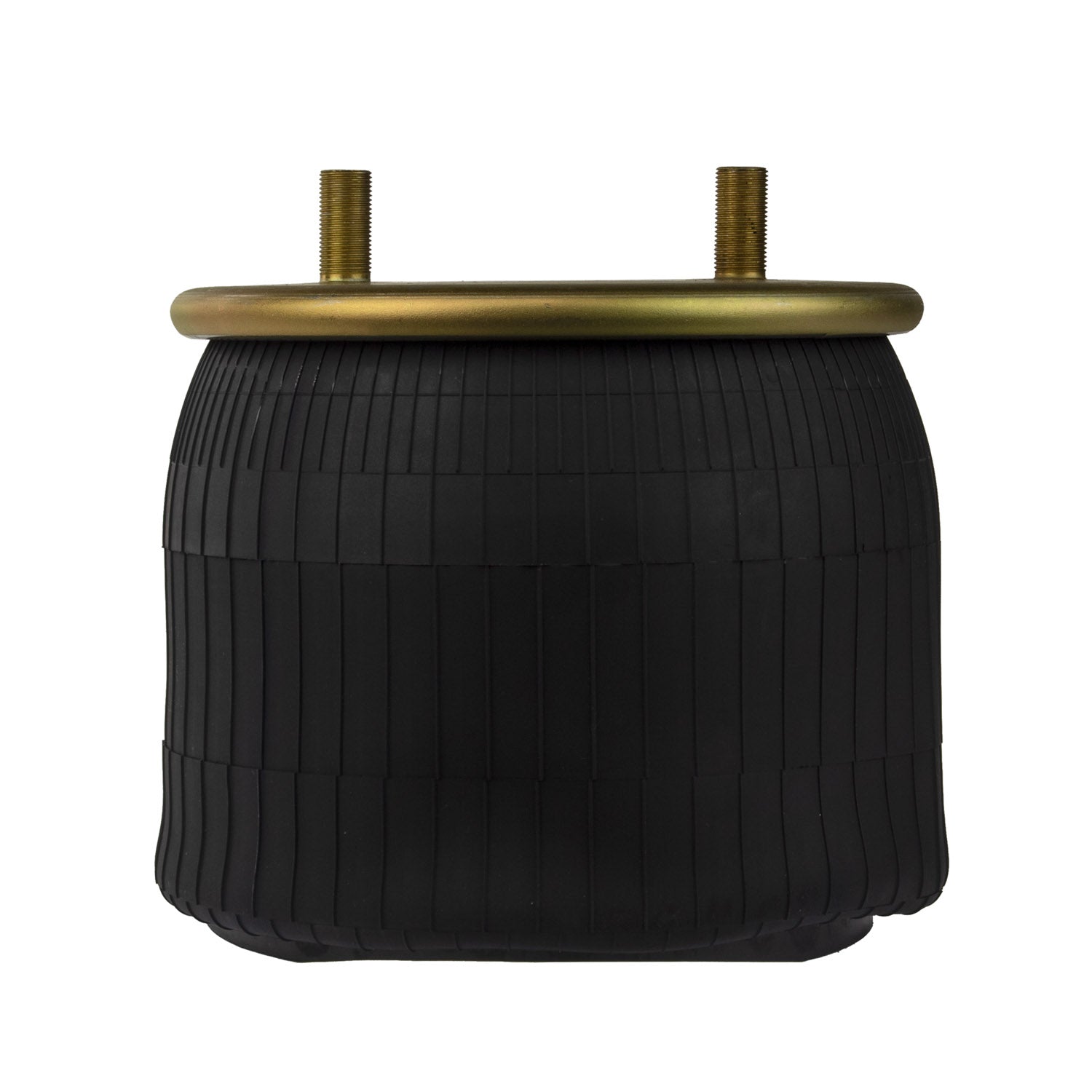

World American WA01-8709C air spring for Intraax AA230 suspensions 1997 and up. The WA01-8709C is a direct replacement for Hendrickson Hendrickson S-21800.

Specifications:

• Bottom Plate Alignment - Parallel
• Bottom Plate Center to Center Diameter - 2.25 (Inch)
• Bottom Plate Diameter - 9.17 (Inch)
• Bottom Plate Hole Quantity - 1
• Bottom Plate Type - A
• Design Height - 10"
• Load Rating at 100 PSI - 9250 lbs
• Load Rating at 80 PSI - 7400 lbs
• Maximum Diameter - 13.9"
• Maximum Height - 19.3"
• Minimum Height - 4.9"
• Natural Frequency - 81
• Top Plate Center to Center Diameter - 5.5"
• Top Plate Diameter - 10.2"
• Top Plate Hole Quantity - 2

Cross Reference:

• Automann AB1DK25A-8709
• Batco 10-98709
• Continental-ContiTech 10 10.5-15 P 460
• Continental-ContiTech 64645
• Continental-ContiTech 101015S453
• ContiTech AS8709
• Dayton Parts 352-8709
• Euclid E-FS8709
• Firestone W01-358-8709
• Firestone 8709
• Firestone W01-358-8751
• Goodyear 1R13-159
• HDValue HDV8709
• Hendrickson HKA180
• Hendrickson S-20900
• Hendrickson S-21800
• Hendrickson S-22045
• Hendrickson S21800
• Meritor FS8709
• Triangle Air Springs 8453
• Triangle Air Springs AS-8453

Application:

Hendrickson Intraax AA230 (23K Pound) August 1997 and up.
