Peterbilt 03-10042 Replacement Air Spring For Peterbilt Air Trac Suspensions

Limited Availability
SKU: WA01-9069C UPC: 698231884959

Warranty: 12 months

If you have a question about this part or want to verify availability

Call: (903) 527-5854 Text: (903) 956-1103


Regular price $107.83
For bulk pricing or questions regarding availability please contact us.

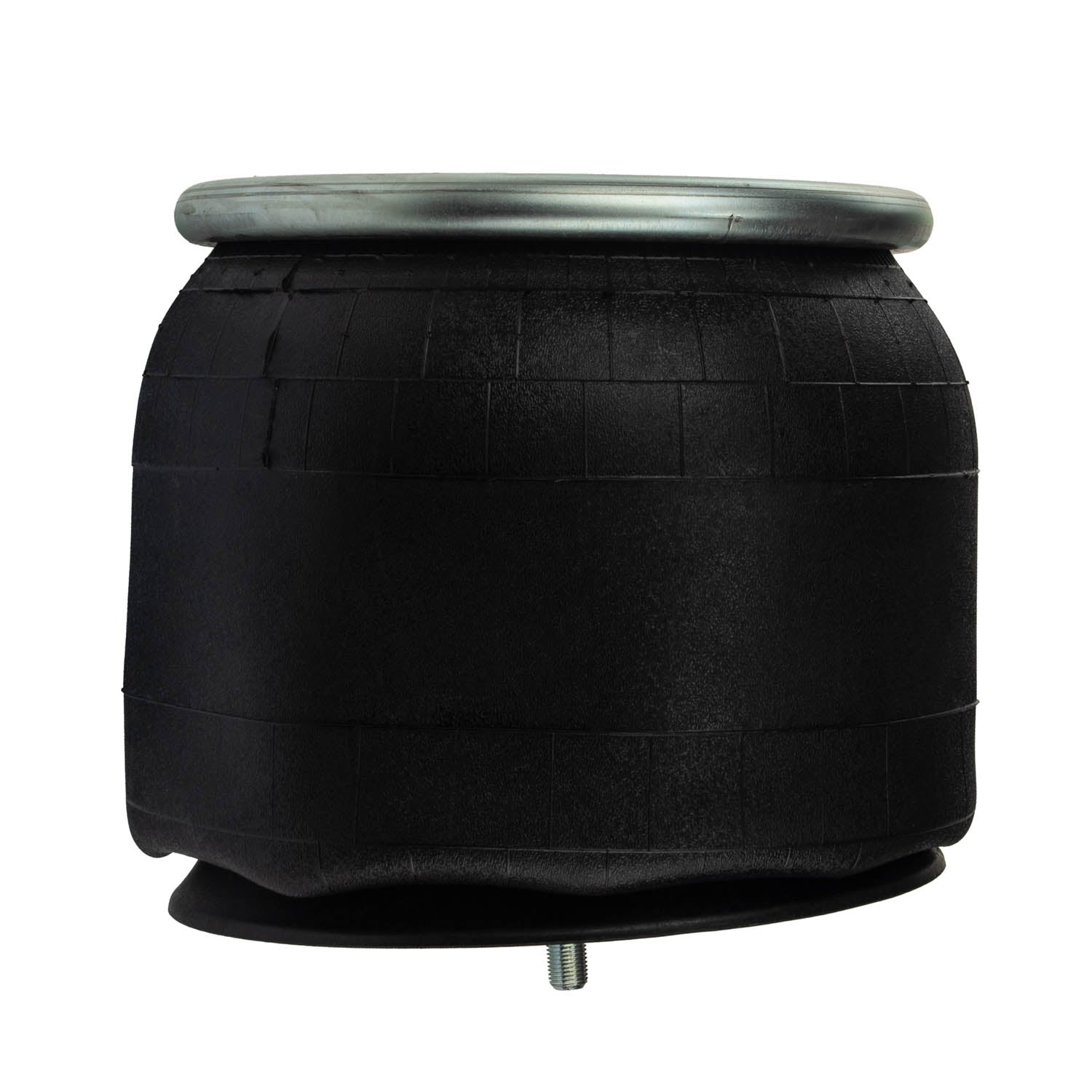

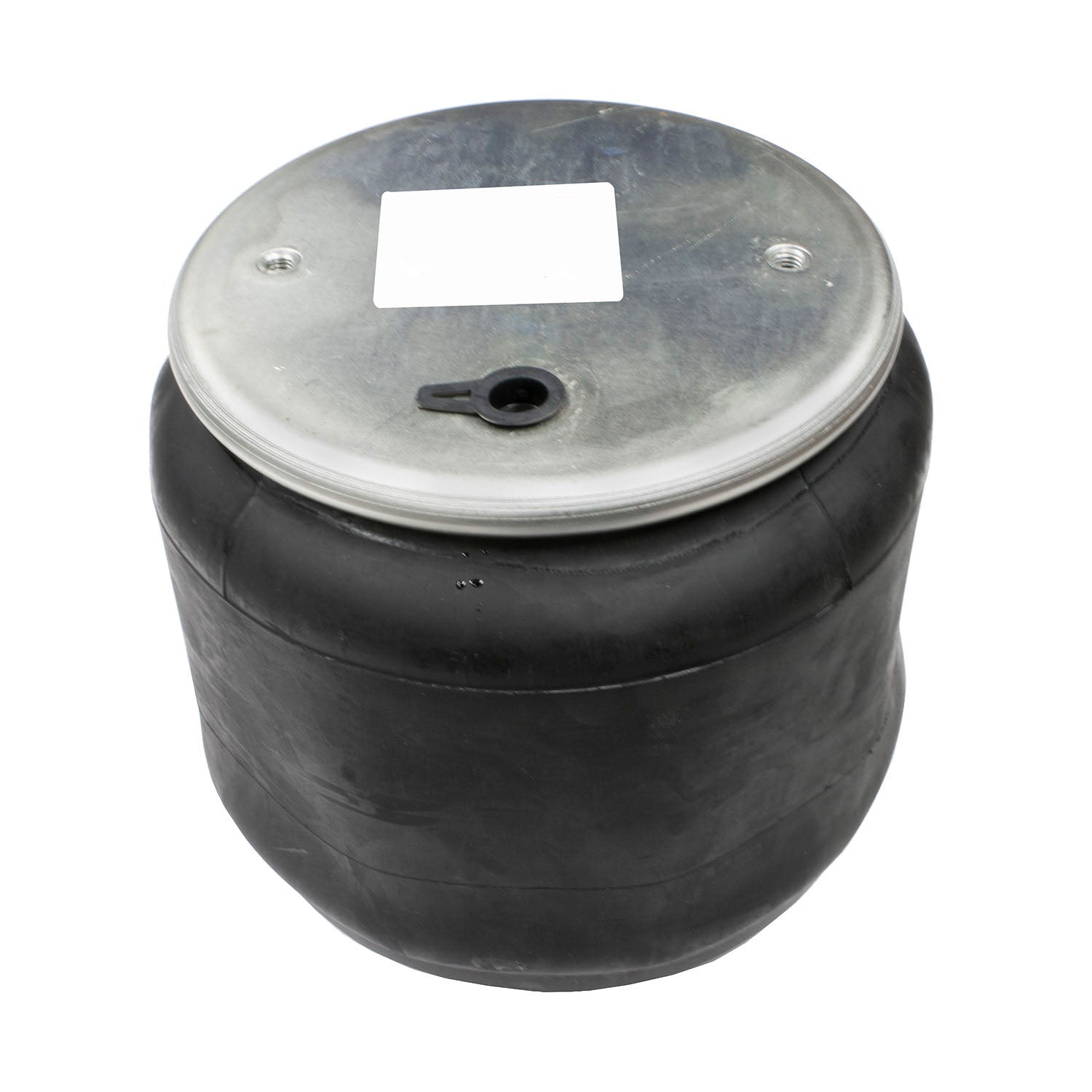

World American Air Spring WA01-9069C is a direct replacement for Peterbilt 03-10042 air spring for Peterbilt Air Trac suspensions.


  • Model/Style - Rolling Lobe
  • Bottom Plate Alignment - Parallel
  • Bottom Plate Center to Center Diameter - 2.25 (Inch)
  • Bottom Plate Diameter - 9.53 (Inch)
  • Bottom Plate Hole Quantity - 1
  • Bottom Plate Type - A
  • Design Height - 11.5 (Inch)
  • Load Rating at 100 PSI - 7000 (Pound)
  • Load Rating at 80 PSI - 5570 (Pound)
  • Maximum Diameter - 12.6 (Inch)
  • Maximum Height - 18.9 (Inch)
  • Minimum Height - 7.6 (Inch)
  • Natural Frequency - 71
  • Spring Type - Rolling Lobe
  • Top Plate Center to Center Diameter - 6.2 (Inch)
  • Top Plate Diameter - 9 (Inch)
  • Top Plate Hole Quantity - 2

Cross Reference


  • Automann  AB1DK23I-9069
  • Batco 10-99069
  • Continental-ContiTech 9 10-14 P 312
  • Continental-ContiTech 91014P312
  • Continental-ContiTech 64274
  • ContiTech AS9069
  • Dayton Parts 352-9069
  • Euclid E-FS9069
  • Firestone 9069
  • Goodyear 1R12-069
  • Goodyear 1R12-669
  • Goodyear 1R12-676
  • HDValue HDV9069
  • Hendrickson S-13031
  • Holland 57009069
  • Leland Brake & Wheel Parts SC2034
  • Meritor RFS9069
  • Meritor FS9069
  • Navistar 554764C1
  • Peterbilt 301649
  • Peterbilt 03-06746
  • Peterbilt 03-02456
  • Peterbilt 03-04759
  • Peterbilt 03-07112
  • Peterbilt 03-10042
  • Peterbilt 23-10042
  • Peterbilt 03-02038
  • Peterbilt 03-01649
  • Ridewell Corp 1003589069C
  • Triangle Air Springs AS-4324
  • Triangle Air Springs 4324
  • Volvo Truck 3130497
  • Watson & Chalin AS-0077

    Sell Pack Quantity: 1
