World American Air Spring WA01-9270C⎪Replaces Hendrickson C20010

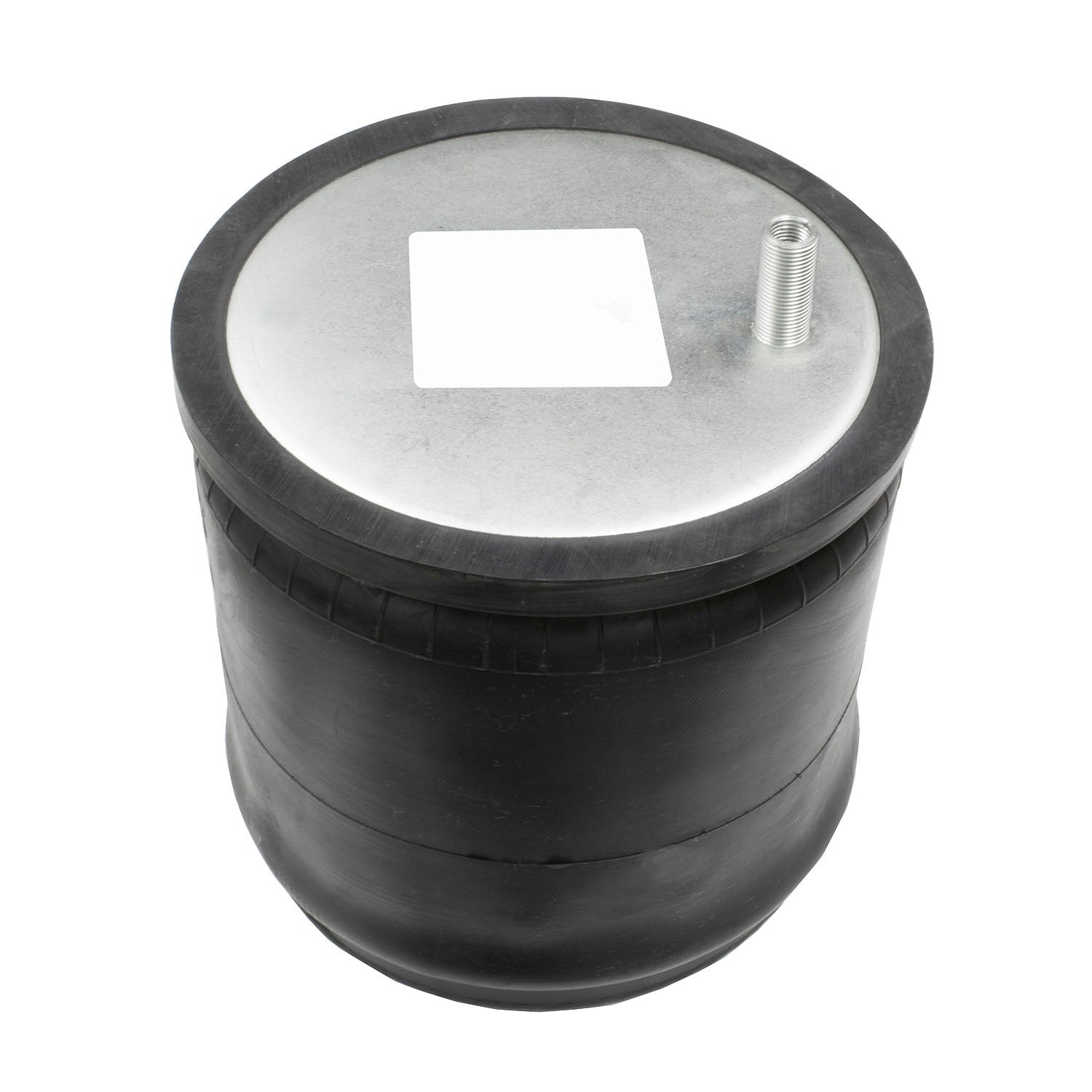

World American Air Spring WA01-9270C

Model/Style: Rolling Lobe
Bottom Plate Alignment: Parallel
Bottom Plate Center to Center Diameter: 2.25 (Inch)
Bottom Plate Diameter: 9.5 (Inch)
Bottom Plate Hole Quantity: 4
Bottom Plate Type: A
Design Height: 8.8 (Inch)
Load Rating at 100 PSI: 8200 (Pound)
Load Rating at 80 PSI: 6560 (Pound)
Maximum Diameter: 12.6 (Inch)
Maximum Height: 17.7 (Inch)
Minimum Height: 5.5 (Inch)
Natural Frequency: 93
Spring Type: Rolling Lobe
Top Plate Diameter: 9 (Inch)
Top Plate Hole Quantity: 1

Cross References:

• Automann  AB1DK23S-9270
• Batco 10-99270
• Continental-ContiTech 64287
• Continental-ContiTech 910135S433
• Continental-ContiTech 9 10-13.5 S 433
• ContiTech AS9270
• Dayton Parts 352-9270
• Euclid E-FS9270
• Firestone 9270
• Firestone W01-358-9270
• Goodyear 1R13-119
• Goodyear 1R13-102
• Goodyear 1R13-077
• HDValue HDV9270
• Hendrickson S-25559
• Hendrickson S21208
• Hendrickson C20010
• Hendrickson C21208
• Hendrickson HS230
• Hendrickson HT230
• Hendrickson HT230T
• Hendrickson S-20010
• Meritor FS9270
• Ridewell Corp 1003589270C
• Triangle Air Springs AS-8433
• Triangle Air Springs 8433
• Watson & Chalin AS-0084
